| 描述 | Broadband High Linearity e-Call Antenna Routing Switch |
| 页数 / 页 | 17 / 5 — PRELIMINARY. QPC1251Q. BROADBAND HIGH LINEARITY e-CALL ANTENNA ROUTING … |
| 文件格式/大小 | PDF / 1.3 Mb |
| 文件语言 | 英语 |

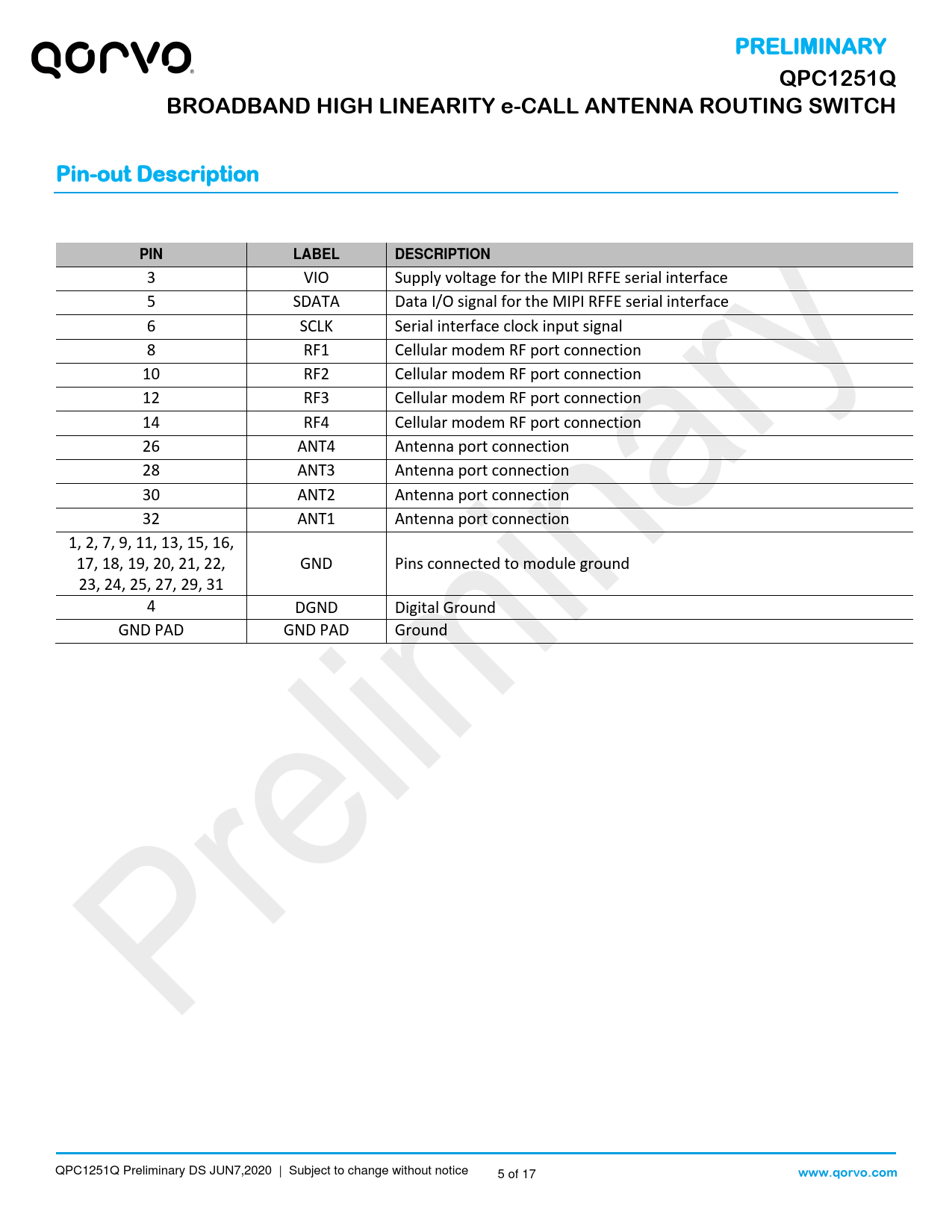

PRELIMINARY. QPC1251Q. BROADBAND HIGH LINEARITY e-CALL ANTENNA ROUTING SWITCH. Pin-out Description. PIN. LABEL. DESCRIPTION
该数据表的模型线
文件文字版本
PRELIMINARY QPC1251Q BROADBAND HIGH LINEARITY e-CALL ANTENNA ROUTING SWITCH Pin-out Description PIN LABEL DESCRIPTION
3 VIO Supply voltage for the MIPI RFFE serial interface 5 SDATA Data I/O signal for the MIPI RFFE serial interface 6 SCLK Serial interface clock input signal 8 RF1 Cellular modem RF port connection 10 RF2 Cellular modem RF port connection 12 RF3 Cellular modem RF port connection 14 RF4 Cellular modem RF port connection 26 ANT4 Antenna port connection 28 ANT3 Antenna port connection 30 ANT2 Antenna port connection 32 ANT1 Antenna port connection 1, 2, 7, 9, 11, 13, 15, 16, 17, 18, 19, 20, 21, 22, GND Pins connected to module ground 23, 24, 25, 27, 29, 31 4 DGND Digital Ground GND PAD GND PAD Ground QPC1251Q Preliminary DS JUN7,2020 | Subject to change without notice 5 of 17
