Datasheet TCKE712BNL (Toshiba) - 5
| 制造商 | Toshiba |
| 描述 | 13.2 V, eFuse with Adjustable Over Current Protection |
| 页数 / 页 | 15 / 5 — PIN Description. PIN Name. Description. Operation Logic Table. EN “Low”. … |
| 文件格式/大小 | PDF / 632 Kb |
| 文件语言 | 英语 |
PIN Description. PIN Name. Description. Operation Logic Table. EN “Low”. EN “High”
该数据表的模型线
文件文字版本
TCKE712BNL

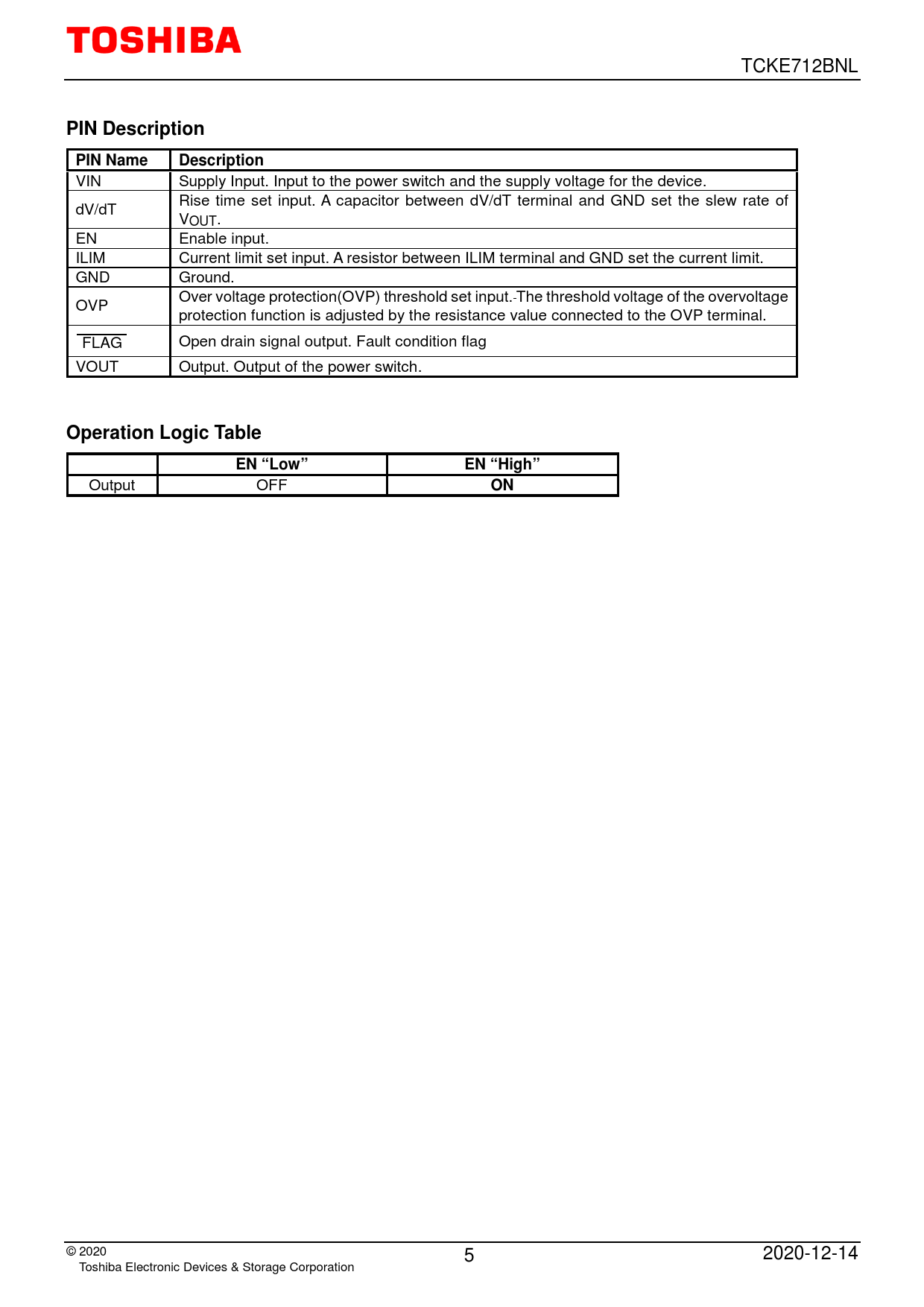

PIN Description PIN Name Description
VIN Supply Input. Input to the power switch and the supply voltage for the device. Rise time set input. A capacitor between dV/dT terminal and GND set the slew rate of dV/dT VOUT. EN Enable input. ILIM Current limit set input. A resistor between ILIM terminal and GND set the current limit. GND Ground. Over voltage protection(OVP) threshold set input. The threshold voltage of the overvoltage OVP protection function is adjusted by the resistance value connected to the OVP terminal. FLAG Open drain signal output. Fault condition flag VOUT Output. Output of the power switch.
Operation Logic Table EN “Low” EN “High”
Output OFF
ON
