Datasheet PESD4V0Z2BCDF (Nexperia) - 9
| 制造商 | Nexperia |
| 描述 | Extremely low clamping low capacitance ESD protection |
| 页数 / 页 | 12 / 9 — Nexperia. PESD4V0Z2BCDF. Extremely low clamping low capacitance ESD … |
| 修订版 | 17082020 |
| 文件格式/大小 | PDF / 292 Kb |
| 文件语言 | 英语 |
Nexperia. PESD4V0Z2BCDF. Extremely low clamping low capacitance ESD protection. 12. Soldering
该数据表的模型线
文件文字版本

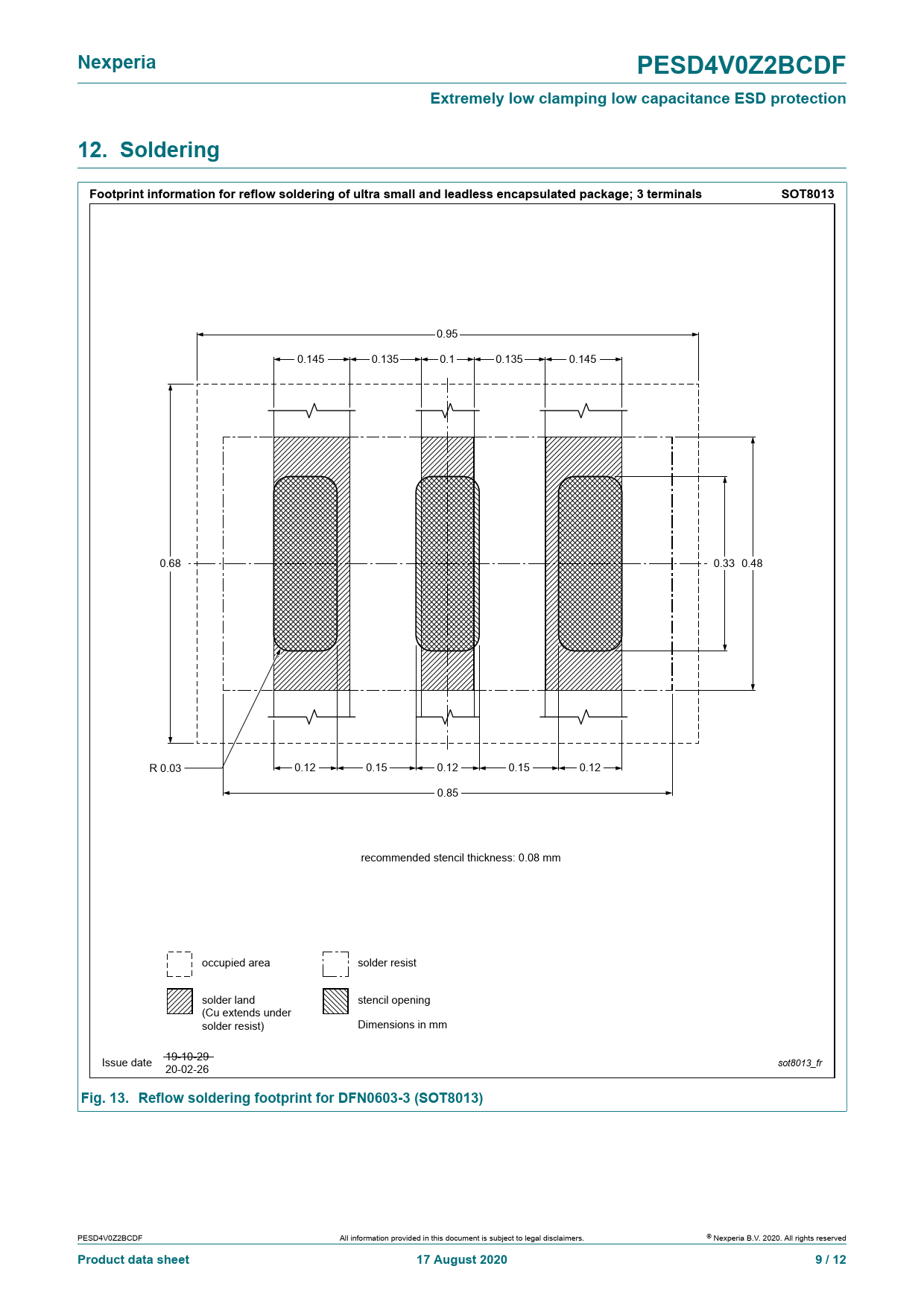

Nexperia PESD4V0Z2BCDF Extremely low clamping low capacitance ESD protection 12. Soldering Footprint information for reflow soldering of ultra smal and leadless encapsulated package; 3 terminals SOT8013
0.95 0.145 0.135 0.1 0.135 0.145 0.68 0.33 0.48 R 0.03 0.12 0.15 0.12 0.15 0.12 0.85 recommended stencil thickness: 0.08 mm occupied area solder resist solder land stencil opening (Cu extends under solder resist) Dimensions in mm Issue date 19-10-29 sot8013_fr 20-02-26
Fig. 13. Reflow soldering footprint for DFN0603-3 (SOT8013)
PESD4V0Z2BCDF All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2020. Al rights reserved
Product data sheet 17 August 2020 9 / 12
