Datasheet TDA7294 (STMicroelectronics) - 5
| 制造商 | STMicroelectronics |
| 描述 | 100 V, 100 W DMOS audio amplifier with mute/st-by |
| 页数 / 页 | 31 / 5 — TDA7294. Maximum ratings. Table 1. Absolute maximum ratings. Symbol. … |
| 文件格式/大小 | PDF / 1.2 Mb |
| 文件语言 | 英语 |

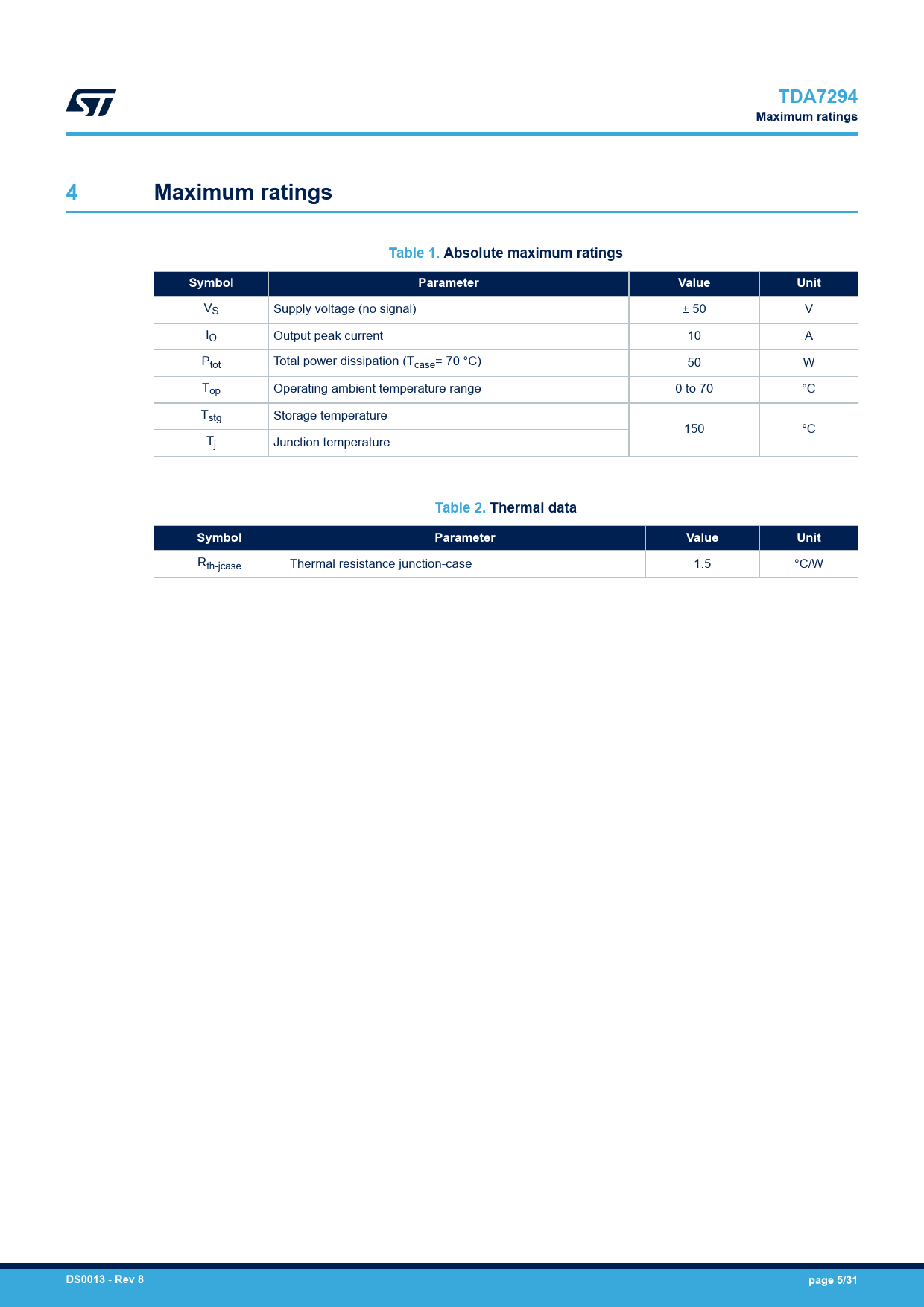

TDA7294. Maximum ratings. Table 1. Absolute maximum ratings. Symbol. Parameter. Value. Unit. Table 2. Thermal data. DS0013. Rev 8
该数据表的模型线
文件文字版本
TDA7294 Maximum ratings 4 Maximum ratings Table 1. Absolute maximum ratings Symbol Parameter Value Unit
VS Supply voltage (no signal) ± 50 V IO Output peak current 10 A Ptot Total power dissipation (Tcase= 70 °C) 50 W Top Operating ambient temperature range 0 to 70 °C Tstg Storage temperature 150 °C Tj Junction temperature
Table 2. Thermal data Symbol Parameter Value Unit
Rth-jcase Thermal resistance junction-case 1.5 °C/W
DS0013
-
Rev 8 page 5/31
