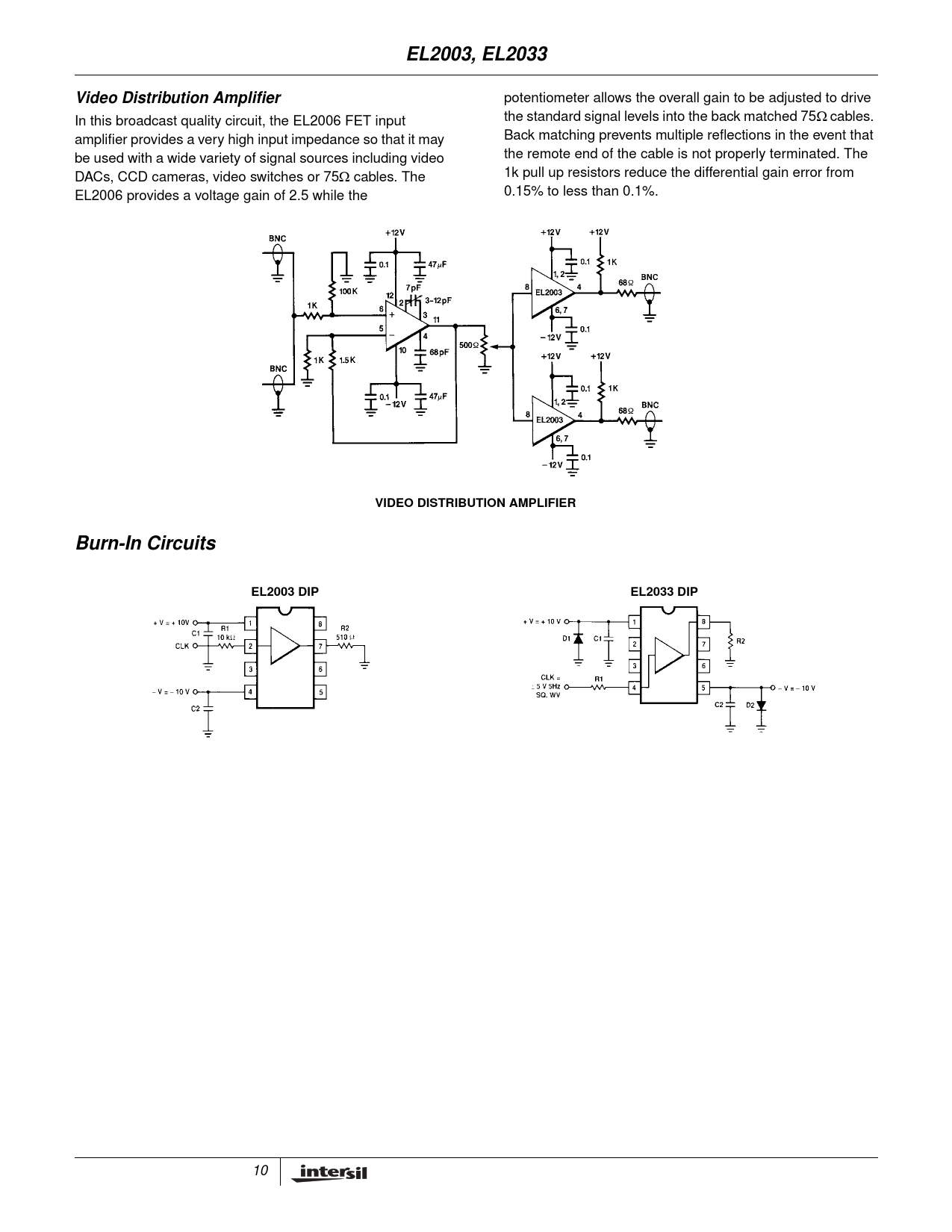

EL2003, EL2033 Video Distribution Amplifier
potentiometer allows the overall gain to be adjusted to drive In this broadcast quality circuit, the EL2006 FET input the standard signal levels into the back matched 75Ω cables. amplifier provides a very high input impedance so that it may Back matching prevents multiple reflections in the event that be used with a wide variety of signal sources including video the remote end of the cable is not properly terminated. The DACs, CCD cameras, video switches or 75Ω cables. The 1k pull up resistors reduce the differential gain error from EL2006 provides a voltage gain of 2.5 while the 0.15% to less than 0.1%.
VIDEO DISTRIBUTION AMPLIFIER Burn-In Circuits EL2003 DIP EL2033 DIP
