Datasheet 74LVCH2T45 (Diodes) - 2
| 制造商 | Diodes |
| 描述 | DUAL BIT DUAL POWER SUPPLY TRANSLATING TRANSCEIVER WITH 3 STATE OUTPUTS |
| 页数 / 页 | 16 / 2 — 74LVCH2T45. Pin Descriptions. Pin Name. Pin. Function. Logic Diagram. … |
| 文件格式/大小 | PDF / 858 Kb |
| 文件语言 | 英语 |
74LVCH2T45. Pin Descriptions. Pin Name. Pin. Function. Logic Diagram. VCC(A). VCC(B). Function Tables. Input. DIR (Direction Pin). Operation
该数据表的模型线
文件文字版本

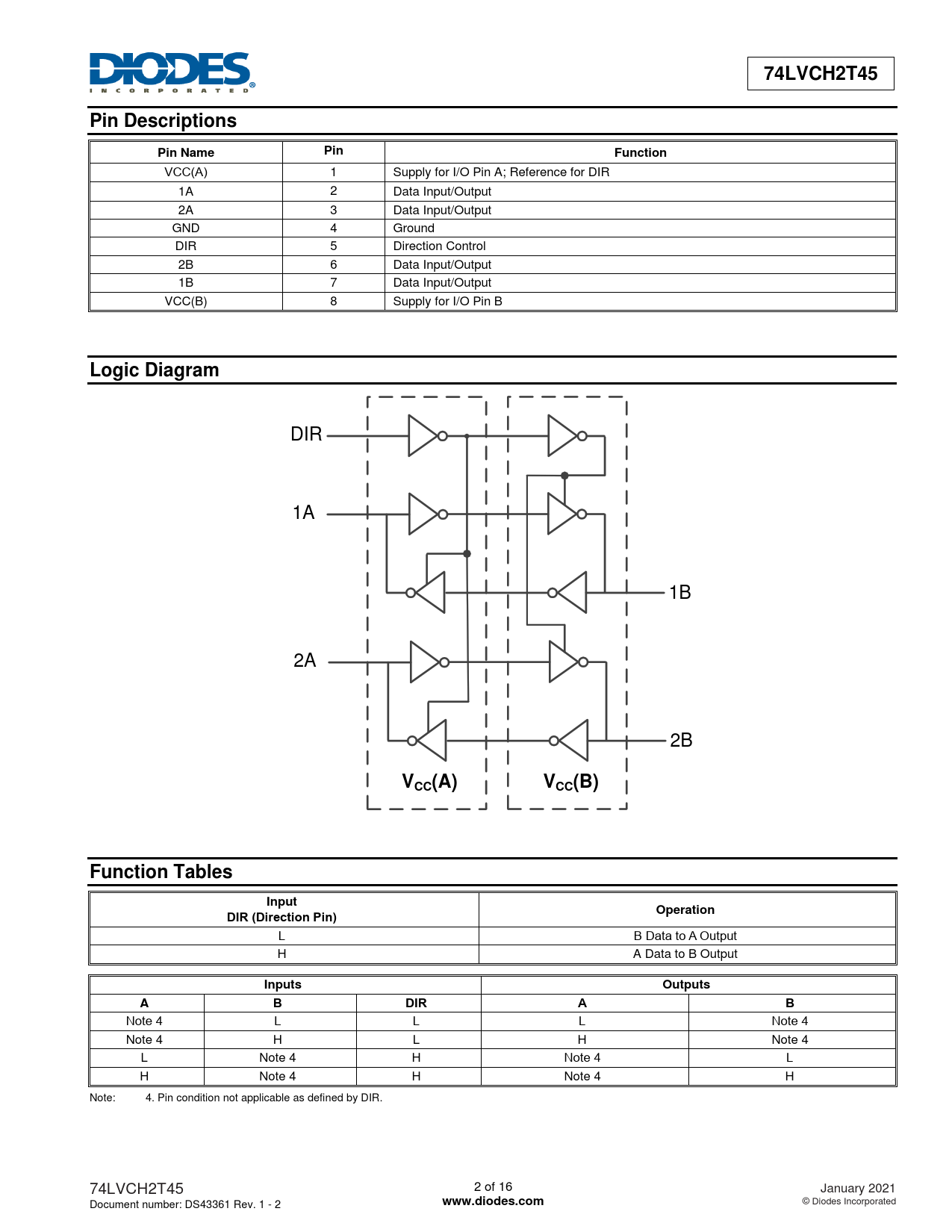

74LVCH2T45 Pin Descriptions Pin Name Pin Function
VCC(A) 1 Supply for I/O Pin A; Reference for DIR 1A 2 Data Input/Output 2A 3 Data Input/Output GND 4 Ground DIR 5 Direction Control 2B 6 Data Input/Output 1B 7 Data Input/Output VCC(B) 8 Supply for I/O Pin B
Logic Diagram
DIR 1A 1B 2A 2B
VCC(A) VCC(B) Function Tables Input DIR (Direction Pin) Operation
L B Data to A Output H A Data to B Output
Inputs Outputs A B DIR A B
Note 4 L L L Note 4 Note 4 H L H Note 4 L Note 4 H Note 4 L H Note 4 H Note 4 H Note: 4. Pin condition not applicable as defined by DIR. 74LVCH2T45 2 of 16 January 2021 Document number: DS43361 Rev. 1 - 2
www.diodes.com
© Diodes Incorporated
