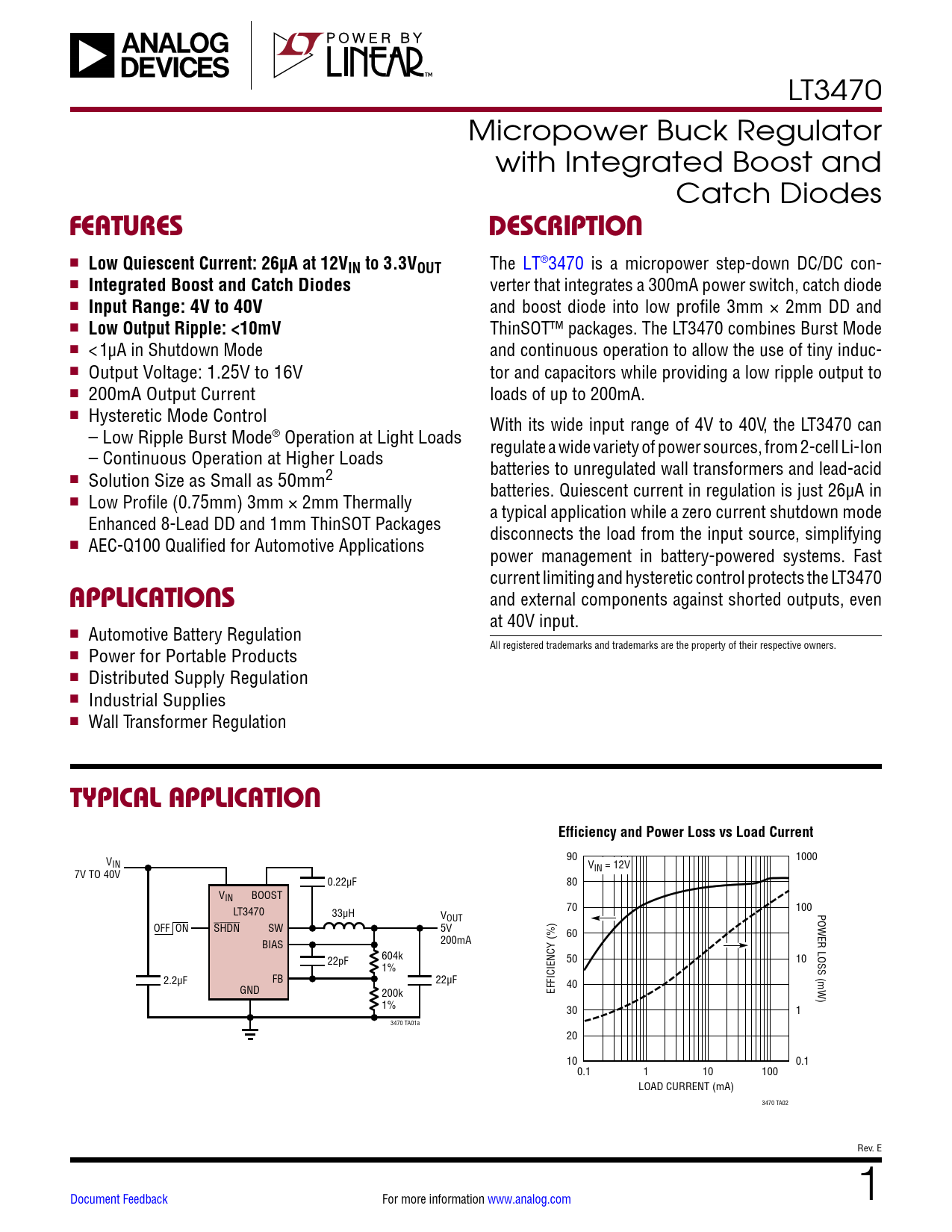

LT3470 Micropower Buck Regulator with Integrated Boost and Catch Diodes
FEATURES DESCRIPTION
n
Low Quiescent Current: 26µA at 12VIN to 3.3VOUT
The LT®3470 is a micropower step-down DC/DC con- n
Integrated Boost and Catch Diodes
verter that integrates a 300mA power switch, catch diode n
Input Range: 4V to 40V
and boost diode into low profile 3mm × 2mm DD and n
Low Output Ripple: <10mV
ThinSOT™ packages. The LT3470 combines Burst Mode n < 1µA in Shutdown Mode and continuous operation to allow the use of tiny induc- n Output Voltage: 1.25V to 16V tor and capacitors while providing a low ripple output to n 200mA Output Current loads of up to 200mA. n Hysteretic Mode Control With its wide input range of 4V to 40V, the LT3470 can – Low Ripple Burst Mode® Operation at Light Loads regulate a wide variety of power sources, from 2-cell Li-Ion – Continuous Operation at Higher Loads batteries to unregulated wall transformers and lead-acid n Solution Size as Small as 50mm2 batteries. Quiescent current in regulation is just 26µA in n Low Profile (0.75mm) 3mm × 2mm Thermally a typical application while a zero current shutdown mode Enhanced 8-Lead DD and 1mm ThinSOT Packages disconnects the load from the input source, simplifying n AEC-Q100 Qualified for Automotive Applications power management in battery-powered systems. Fast current limiting and hysteretic control protects the LT3470
APPLICATIONS
and external components against shorted outputs, even at 40V input. n Automotive Battery Regulation All registered trademarks and trademarks are the property of their respective owners. n Power for Portable Products n Distributed Supply Regulation n Industrial Supplies n Wall Transformer Regulation
TYPICAL APPLICATION Efficiency and Power Loss vs Load Current
90 1000 VIN VIN = 12V 7V TO 40V 0.22µF 80 VIN BOOST 70 100 LT3470 33µH POWER LOSS (mW) VOUT OFF ON SHDN SW 5V 60 200mA BIAS 22pF 604k 50 10 1% 2.2µF FB 22µF GND EFFICIENCY (%) 40 200k 1% 30 1 3470 TA01a 20 10 0.1 0.1 1 10 100 LOAD CURRENT (mA) 3470 TA02 Rev. E Document Feedback For more information www.analog.com 1 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Package Description Revision History Related Parts
