描述Dual N-channel 40 V, 13 mOhm logic level MOSFET in LFPAK56D (half-bridge configuration)
页数 / 页13 / 2 — Nexperia. BUK9V13-40H. Dual N-channel 40 V, 13 mOhm logic level MOSFET in …
修订版11022021
文件格式/大小PDF / 313 Kb
文件语言英语

Nexperia. BUK9V13-40H. Dual N-channel 40 V, 13 mOhm logic level MOSFET in LFPAK56D (half-bridge configuration). Symbol

Nexperia BUK9V13-40H Dual N-channel 40 V, 13 mOhm logic level MOSFET in LFPAK56D (half-bridge configuration) Symbol

该数据表的模型线

文件文字版本

link to page 8 link to page 8 link to page 9 link to page 2

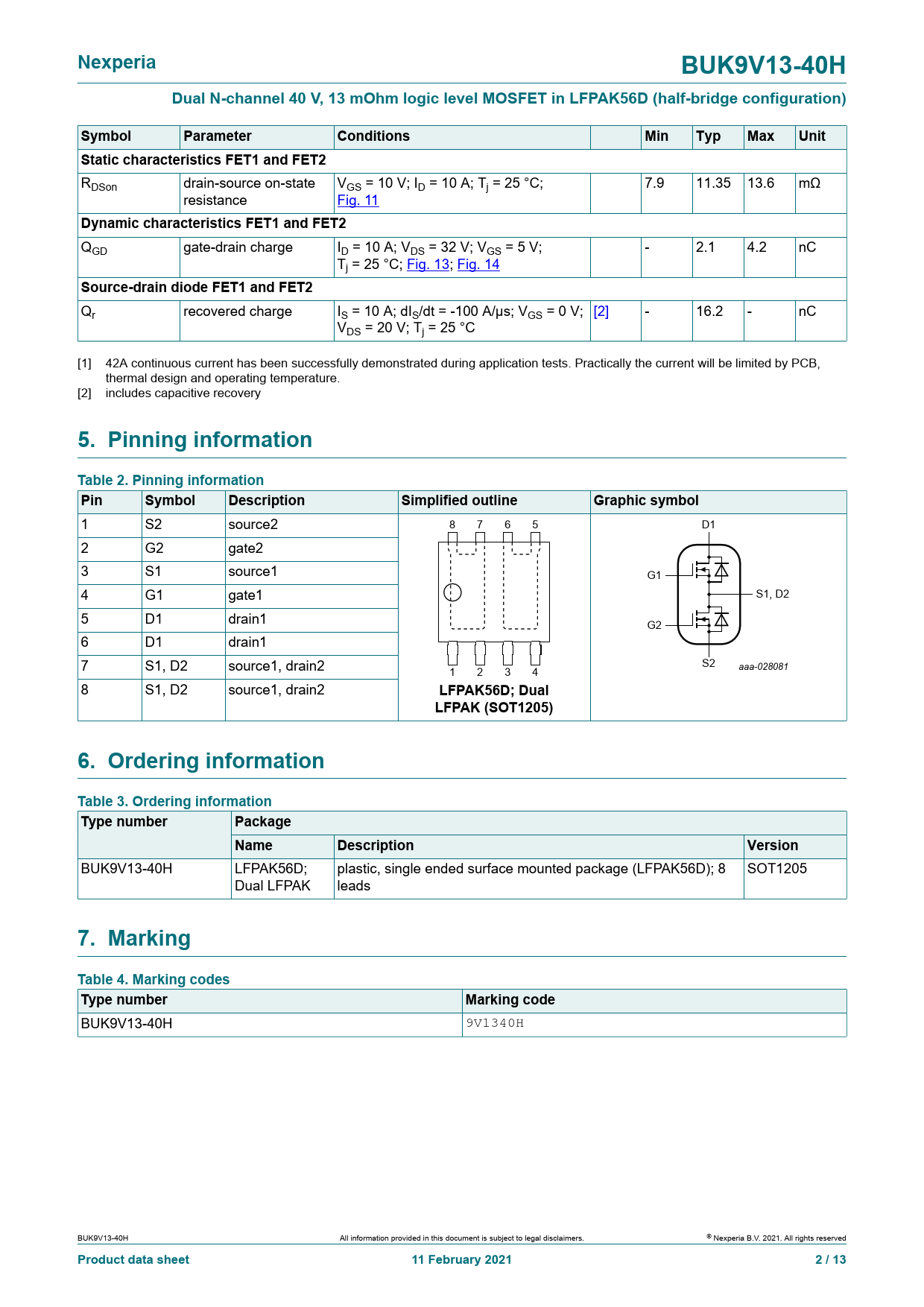

Nexperia BUK9V13-40H Dual N-channel 40 V, 13 mOhm logic level MOSFET in LFPAK56D (half-bridge configuration) Symbol Parameter Conditions Min Typ Max Unit Static characteristics FET1 and FET2
RDSon drain-source on-state VGS = 10 V; ID = 10 A; Tj = 25 °C; 7.9 11.35 13.6 mΩ resistance Fig. 11
Dynamic characteristics FET1 and FET2
QGD gate-drain charge ID = 10 A; VDS = 32 V; VGS = 5 V; - 2.1 4.2 nC Tj = 25 °C; Fig. 13; Fig. 14
Source-drain diode FET1 and FET2
Qr recovered charge IS = 10 A; dIS/dt = -100 A/µs; VGS = 0 V; [2] - 16.2 - nC VDS = 20 V; Tj = 25 °C [1] 42A continuous current has been successfully demonstrated during application tests. Practically the current will be limited by PCB, thermal design and operating temperature. [2] includes capacitive recovery
5. Pinning information Table 2. Pinning information Pin Symbol Description Simplified outline Graphic symbol
1 S2 source2 8 7 6 5 D1 2 G2 gate2 3 S1 source1 G1 4 G1 gate1 S1, D2 5 D1 drain1 G2 6 D1 drain1 7 S1, D2 source1, drain2 S2 1 2 3 4 aaa-028081 8 S1, D2 source1, drain2
LFPAK56D; Dual LFPAK (SOT1205) 6. Ordering information Table 3. Ordering information Type number Package Name Description Version
BUK9V13-40H LFPAK56D; plastic, single ended surface mounted package (LFPAK56D); 8 SOT1205 Dual LFPAK leads
7. Marking Table 4. Marking codes Type number Marking code
BUK9V13-40H 9V1340H BUK9V13-40H All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2021. Al rights reserved
Product data sheet 11 February 2021 2 / 13
