| 描述 | Dual N-channel 40 V, 13 mOhm logic level MOSFET in LFPAK56D (half-bridge configuration) |
| 页数 / 页 | 13 / 6 — Nexperia. BUK9V13-40H. Dual N-channel 40 V, 13 mOhm logic level MOSFET in … |
| 修订版 | 11022021 |
| 文件格式/大小 | PDF / 313 Kb |
| 文件语言 | 英语 |
Nexperia. BUK9V13-40H. Dual N-channel 40 V, 13 mOhm logic level MOSFET in LFPAK56D (half-bridge configuration). Symbol
该数据表的模型线
文件文字版本
link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 9 link to page 8 link to page 9 link to page 9 link to page 9 link to page 6

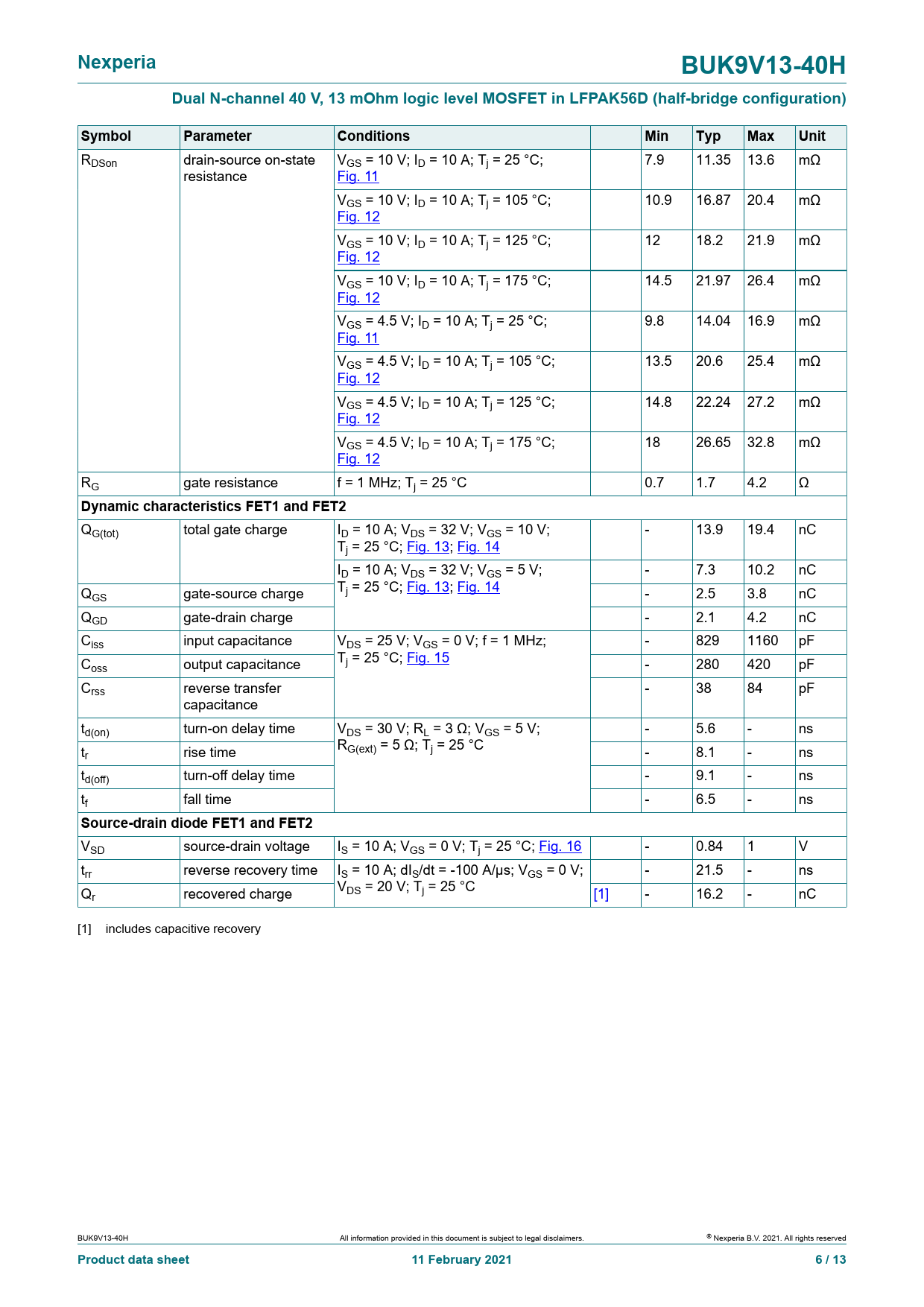

Nexperia BUK9V13-40H Dual N-channel 40 V, 13 mOhm logic level MOSFET in LFPAK56D (half-bridge configuration) Symbol Parameter Conditions Min Typ Max Unit
RDSon drain-source on-state VGS = 10 V; ID = 10 A; Tj = 25 °C; 7.9 11.35 13.6 mΩ resistance Fig. 11 VGS = 10 V; ID = 10 A; Tj = 105 °C; 10.9 16.87 20.4 mΩ Fig. 12 VGS = 10 V; ID = 10 A; Tj = 125 °C; 12 18.2 21.9 mΩ Fig. 12 VGS = 10 V; ID = 10 A; Tj = 175 °C; 14.5 21.97 26.4 mΩ Fig. 12 VGS = 4.5 V; ID = 10 A; Tj = 25 °C; 9.8 14.04 16.9 mΩ Fig. 11 VGS = 4.5 V; ID = 10 A; Tj = 105 °C; 13.5 20.6 25.4 mΩ Fig. 12 VGS = 4.5 V; ID = 10 A; Tj = 125 °C; 14.8 22.24 27.2 mΩ Fig. 12 VGS = 4.5 V; ID = 10 A; Tj = 175 °C; 18 26.65 32.8 mΩ Fig. 12 RG gate resistance f = 1 MHz; Tj = 25 °C 0.7 1.7 4.2 Ω
Dynamic characteristics FET1 and FET2
QG(tot) total gate charge ID = 10 A; VDS = 32 V; VGS = 10 V; - 13.9 19.4 nC Tj = 25 °C; Fig. 13; Fig. 14 ID = 10 A; VDS = 32 V; VGS = 5 V; - 7.3 10.2 nC Q T GS gate-source charge j = 25 °C; Fig. 13; Fig. 14 - 2.5 3.8 nC QGD gate-drain charge - 2.1 4.2 nC Ciss input capacitance VDS = 25 V; VGS = 0 V; f = 1 MHz; - 829 1160 pF C T oss output capacitance j = 25 °C; Fig. 15 - 280 420 pF Crss reverse transfer - 38 84 pF capacitance td(on) turn-on delay time VDS = 30 V; RL = 3 Ω; VGS = 5 V; - 5.6 - ns t R r rise time G(ext) = 5 Ω; Tj = 25 °C - 8.1 - ns td(of ) turn-of delay time - 9.1 - ns tf fall time - 6.5 - ns
Source-drain diode FET1 and FET2
VSD source-drain voltage IS = 10 A; VGS = 0 V; Tj = 25 °C; Fig. 16 - 0.84 1 V trr reverse recovery time IS = 10 A; dIS/dt = -100 A/µs; VGS = 0 V; - 21.5 - ns Q V r recovered charge DS = 20 V; Tj = 25 °C [1] - 16.2 - nC [1] includes capacitive recovery BUK9V13-40H All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2021. Al rights reserved
Product data sheet 11 February 2021 6 / 13
