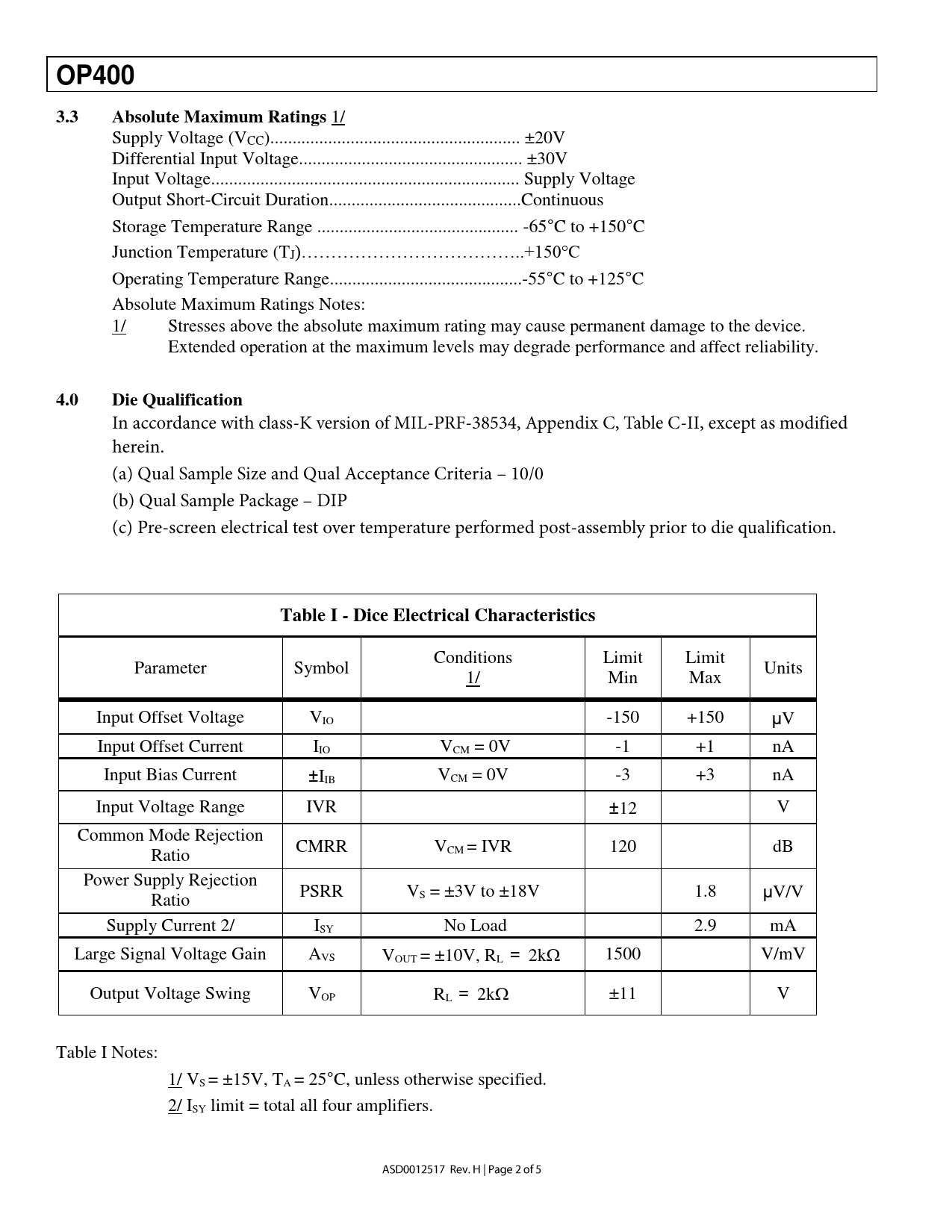

OP400 3.3 Absolute Maximum Ratings
1/ Supply Voltage (VCC).. ±20V Differential Input Voltage.. ±30V Input Voltage... Supply Voltage Output Short-Circuit Duration...Continuous Storage Temperature Range ... -65°C to +150°C Junction Temperature (TJ)………………………………..+150°C Operating Temperature Range...-55°C to +125°C Absolute Maximum Ratings Notes: 1/ Stresses above the absolute maximum rating may cause permanent damage to the device. Extended operation at the maximum levels may degrade performance and affect reliability.
4.0 Die Qualification Table I - Dice Electrical Characteristics
Conditions Limit Limit Parameter Symbol Units 1/ Min Max Input Offset Voltage V IO -150 +150 µV Input Offset Current IIO VCM = 0V -1 +1 nA Input Bias Current ±IIB VCM = 0V -3 +3 nA Input Voltage Range IVR ±12 V Common Mode Rejection CMRR V dB Ratio CM = IVR 120 Power Supply Rejection PSRR V 1.8 µV/V Ratio S = ±3V to ±18V Supply Current 2/ ISY No Load 2.9 mA Large Signal Voltage Gain AVS VOUT = ±10V, RL ＝ 2kΩ 1500 V/mV Output Voltage Swing V ＝ OP RL 2kΩ ±11 V Table I Notes: 1/ VS = ±15V, TA = 25°C, unless otherwise specified. 2/ ISY limit = total all four amplifiers.
