Datasheet AD8051, AD8052, AD8054 (Analog Devices) - 8
| 制造商 | Analog Devices |
| 描述 | Low Cost, High Speed, Rail-to-Rail Amplifiers |
| 页数 / 页 | 24 / 8 — AD8051/. AD8052/. AD8054. Data Sheet. AD8051A/AD8052A. AD8054A. … |
| 修订版 | K |
| 文件格式/大小 | PDF / 751 Kb |
| 文件语言 | 英语 |

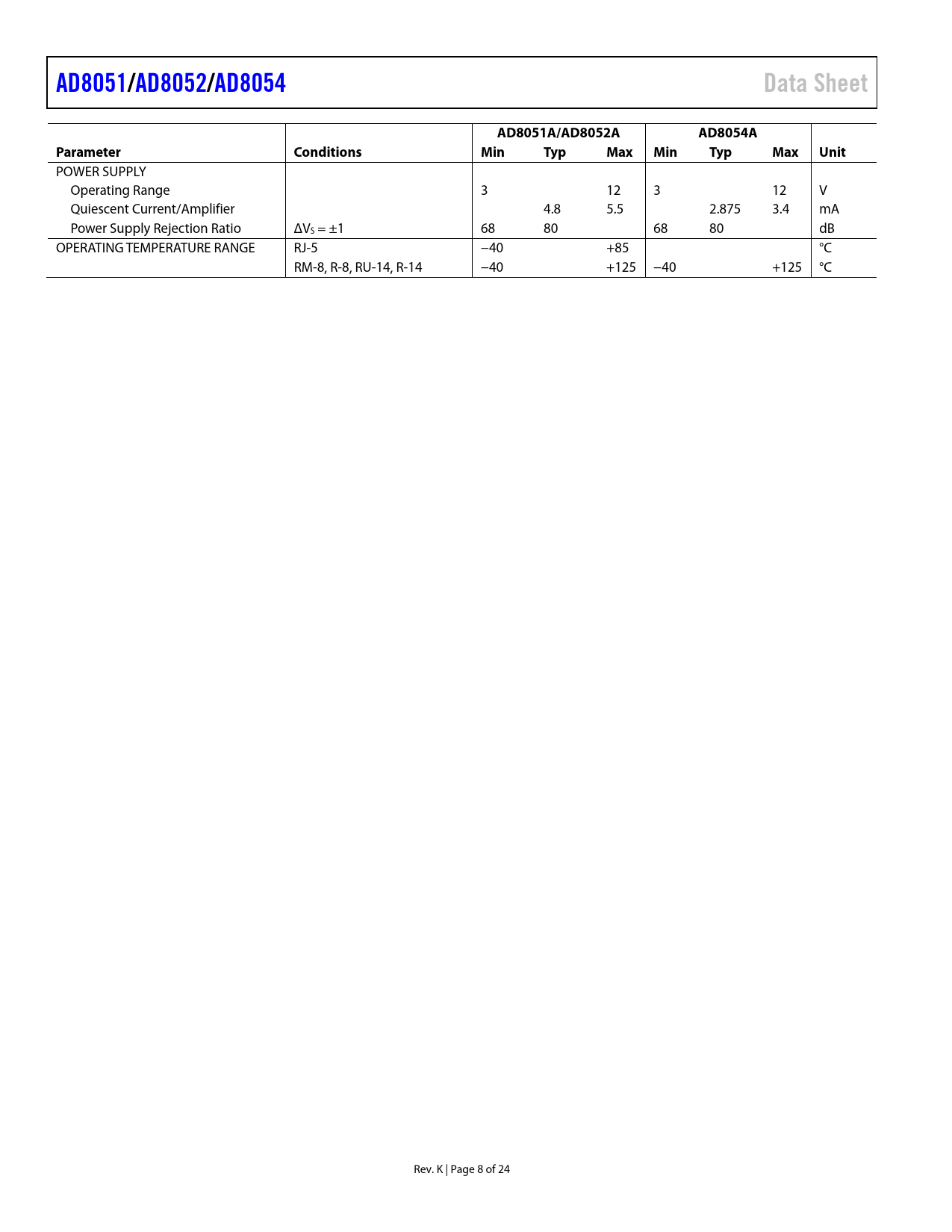

AD8051/. AD8052/. AD8054. Data Sheet. AD8051A/AD8052A. AD8054A. Parameter. Conditions. Min. Typ. Max. Unit
该数据表的模型线
文件文字版本
AD8051/ AD8052/ AD8054 Data Sheet AD8051A/AD8052A AD8054A Parameter Conditions Min Typ Max Min Typ Max Unit
POWER SUPPLY Operating Range 3 12 3 12 V Quiescent Current/Amplifier 4.8 5.5 2.875 3.4 mA Power Supply Rejection Ratio ΔVS = ±1 68 80 68 80 dB OPERATING TEMPERATURE RANGE RJ-5 −40 +85 °C RM-8, R-8, RU-14, R-14 −40 +125 −40 +125 °C Rev. K | Page 8 of 24 Document Outline FEATURES APPLICATIONS PIN CONNECTIONS (TOP VIEWS) GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE MAXIMUM POWER DISSIPATION ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION CIRCUIT DESCRIPTION APPLICATION INFORMATION OVERDRIVE RECOVERY DRIVING CAPACITIVE LOADS LAYOUT CONSIDERATIONS ACTIVE FILTERS ANALOG-TO-DIGITAL AND DIGITAL-TO-ANALOG APPLICATIONS SYNC STRIPPER SINGLE-SUPPLY COMPOSITE VIDEO LINE DRIVER OUTLINE DIMENSIONS ORDERING GUIDE
