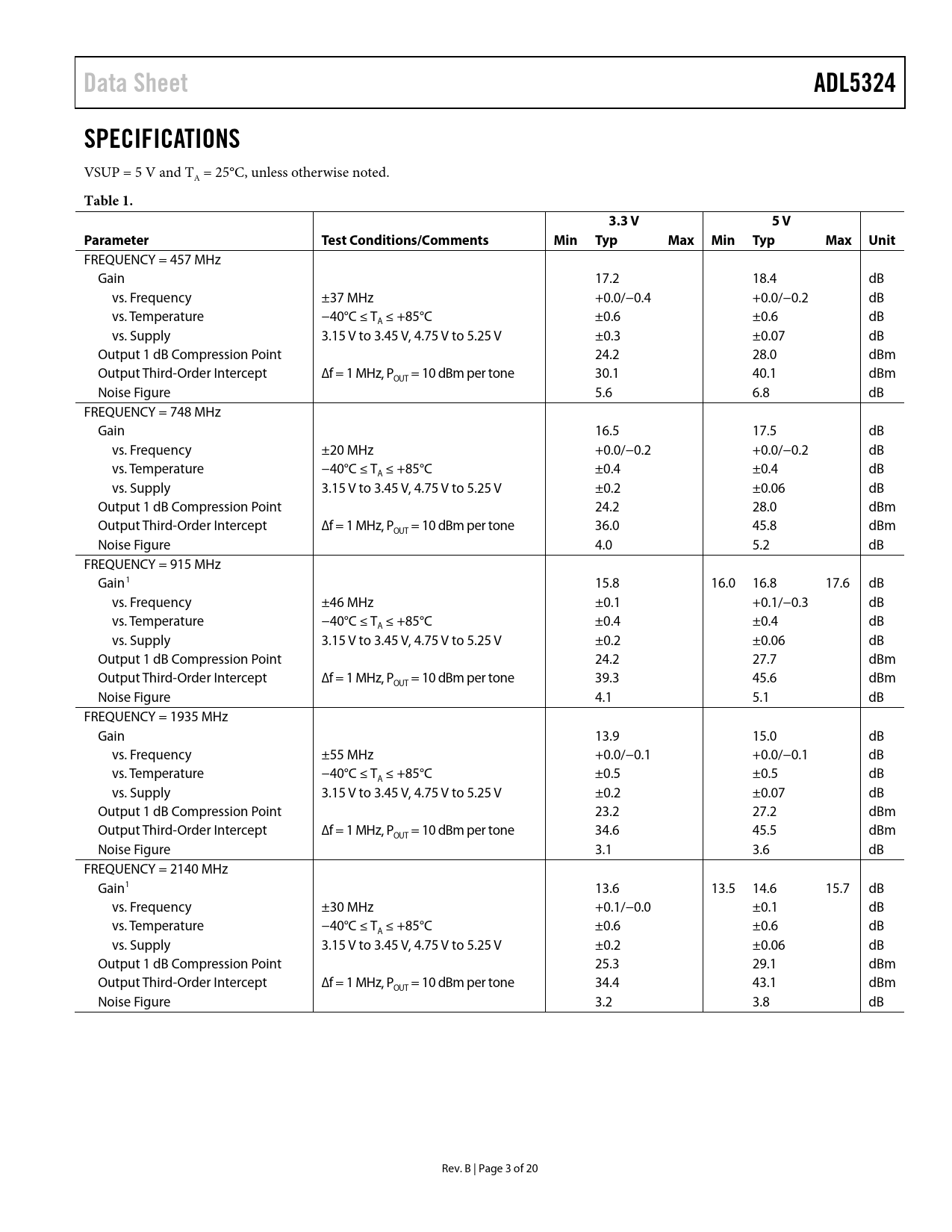

Data Sheet ADL5324 SPECIFICATIONS
VSUP = 5 V and TA = 25°C, unless otherwise noted.
Table 1. 3.3 V 5 V Parameter Test Conditions/Comments Min Typ Max Min Typ Max Unit
FREQUENCY = 457 MHz Gain 17.2 18.4 dB vs. Frequency ±37 MHz +0.0/−0.4 +0.0/−0.2 dB vs. Temperature −40°C ≤ T ≤ +85°C ±0.6 ±0.6 dB A vs. Supply 3.15 V to 3.45 V, 4.75 V to 5.25 V ±0.3 ±0.07 dB Output 1 dB Compression Point 24.2 28.0 dBm Output Third-Order Intercept ∆f = 1 MHz, P = 10 dBm per tone 30.1 40.1 dBm OUT Noise Figure 5.6 6.8 dB FREQUENCY = 748 MHz Gain 16.5 17.5 dB vs. Frequency ±20 MHz +0.0/−0.2 +0.0/−0.2 dB vs. Temperature −40°C ≤ T ≤ +85°C ±0.4 ±0.4 dB A vs. Supply 3.15 V to 3.45 V, 4.75 V to 5.25 V ±0.2 ±0.06 dB Output 1 dB Compression Point 24.2 28.0 dBm Output Third-Order Intercept ∆f = 1 MHz, P = 10 dBm per tone 36.0 45.8 dBm OUT Noise Figure 4.0 5.2 dB FREQUENCY = 915 MHz Gain1 15.8 16.0 16.8 17.6 dB vs. Frequency ±46 MHz ±0.1 +0.1/−0.3 dB vs. Temperature −40°C ≤ T ≤ +85°C ±0.4 ±0.4 dB A vs. Supply 3.15 V to 3.45 V, 4.75 V to 5.25 V ±0.2 ±0.06 dB Output 1 dB Compression Point 24.2 27.7 dBm Output Third-Order Intercept ∆f = 1 MHz, P = 10 dBm per tone 39.3 45.6 dBm OUT Noise Figure 4.1 5.1 dB FREQUENCY = 1935 MHz Gain 13.9 15.0 dB vs. Frequency ±55 MHz +0.0/−0.1 +0.0/−0.1 dB vs. Temperature −40°C ≤ T ≤ +85°C ±0.5 ±0.5 dB A vs. Supply 3.15 V to 3.45 V, 4.75 V to 5.25 V ±0.2 ±0.07 dB Output 1 dB Compression Point 23.2 27.2 dBm Output Third-Order Intercept ∆f = 1 MHz, P = 10 dBm per tone 34.6 45.5 dBm OUT Noise Figure 3.1 3.6 dB FREQUENCY = 2140 MHz Gain1 13.6 13.5 14.6 15.7 dB vs. Frequency ±30 MHz +0.1/−0.0 ±0.1 dB vs. Temperature −40°C ≤ T ≤ +85°C ±0.6 ±0.6 dB A vs. Supply 3.15 V to 3.45 V, 4.75 V to 5.25 V ±0.2 ±0.06 dB Output 1 dB Compression Point 25.3 29.1 dBm Output Third-Order Intercept ∆f = 1 MHz, P = 10 dBm per tone 34.4 43.1 dBm OUT Noise Figure 3.2 3.8 dB Rev. B | Page 3 of 20 Document Outline Features Applications General Description Functional Block Diagram Table of Contents Revision History Specifications Typical Scattering Parameters Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics High Temperature Operation Applications Information Basic Layout Connections Soldering Information and Recommended PCB Land Pattern Matching Procedure W-CDMA ACPR Performance Evaluation Board Outline Dimensions Ordering Guide
Data Sheet ADL5324 SPECIFICATIONS
VSUP = 5 V and TA = 25°C, unless otherwise noted.
Table 1. 3.3 V 5 V Parameter Test Conditions/Comments Min Typ Max Min Typ Max Unit
FREQUENCY = 457 MHz Gain 17.2 18.4 dB vs. Frequency ±37 MHz +0.0/−0.4 +0.0/−0.2 dB vs. Temperature −40°C ≤ T ≤ +85°C ±0.6 ±0.6 dB A vs. Supply 3.15 V to 3.45 V, 4.75 V to 5.25 V ±0.3 ±0.07 dB Output 1 dB Compression Point 24.2 28.0 dBm Output Third-Order Intercept ∆f = 1 MHz, P = 10 dBm per tone 30.1 40.1 dBm OUT Noise Figure 5.6 6.8 dB FREQUENCY = 748 MHz Gain 16.5 17.5 dB vs. Frequency ±20 MHz +0.0/−0.2 +0.0/−0.2 dB vs. Temperature −40°C ≤ T ≤ +85°C ±0.4 ±0.4 dB A vs. Supply 3.15 V to 3.45 V, 4.75 V to 5.25 V ±0.2 ±0.06 dB Output 1 dB Compression Point 24.2 28.0 dBm Output Third-Order Intercept ∆f = 1 MHz, P = 10 dBm per tone 36.0 45.8 dBm OUT Noise Figure 4.0 5.2 dB FREQUENCY = 915 MHz Gain1 15.8 16.0 16.8 17.6 dB vs. Frequency ±46 MHz ±0.1 +0.1/−0.3 dB vs. Temperature −40°C ≤ T ≤ +85°C ±0.4 ±0.4 dB A vs. Supply 3.15 V to 3.45 V, 4.75 V to 5.25 V ±0.2 ±0.06 dB Output 1 dB Compression Point 24.2 27.7 dBm Output Third-Order Intercept ∆f = 1 MHz, P = 10 dBm per tone 39.3 45.6 dBm OUT Noise Figure 4.1 5.1 dB FREQUENCY = 1935 MHz Gain 13.9 15.0 dB vs. Frequency ±55 MHz +0.0/−0.1 +0.0/−0.1 dB vs. Temperature −40°C ≤ T ≤ +85°C ±0.5 ±0.5 dB A vs. Supply 3.15 V to 3.45 V, 4.75 V to 5.25 V ±0.2 ±0.07 dB Output 1 dB Compression Point 23.2 27.2 dBm Output Third-Order Intercept ∆f = 1 MHz, P = 10 dBm per tone 34.6 45.5 dBm OUT Noise Figure 3.1 3.6 dB FREQUENCY = 2140 MHz Gain1 13.6 13.5 14.6 15.7 dB vs. Frequency ±30 MHz +0.1/−0.0 ±0.1 dB vs. Temperature −40°C ≤ T ≤ +85°C ±0.6 ±0.6 dB A vs. Supply 3.15 V to 3.45 V, 4.75 V to 5.25 V ±0.2 ±0.06 dB Output 1 dB Compression Point 25.3 29.1 dBm Output Third-Order Intercept ∆f = 1 MHz, P = 10 dBm per tone 34.4 43.1 dBm OUT Noise Figure 3.2 3.8 dB Rev. B | Page 3 of 20 Document Outline Features Applications General Description Functional Block Diagram Table of Contents Revision History Specifications Typical Scattering Parameters Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics High Temperature Operation Applications Information Basic Layout Connections Soldering Information and Recommended PCB Land Pattern Matching Procedure W-CDMA ACPR Performance Evaluation Board Outline Dimensions Ordering Guide
