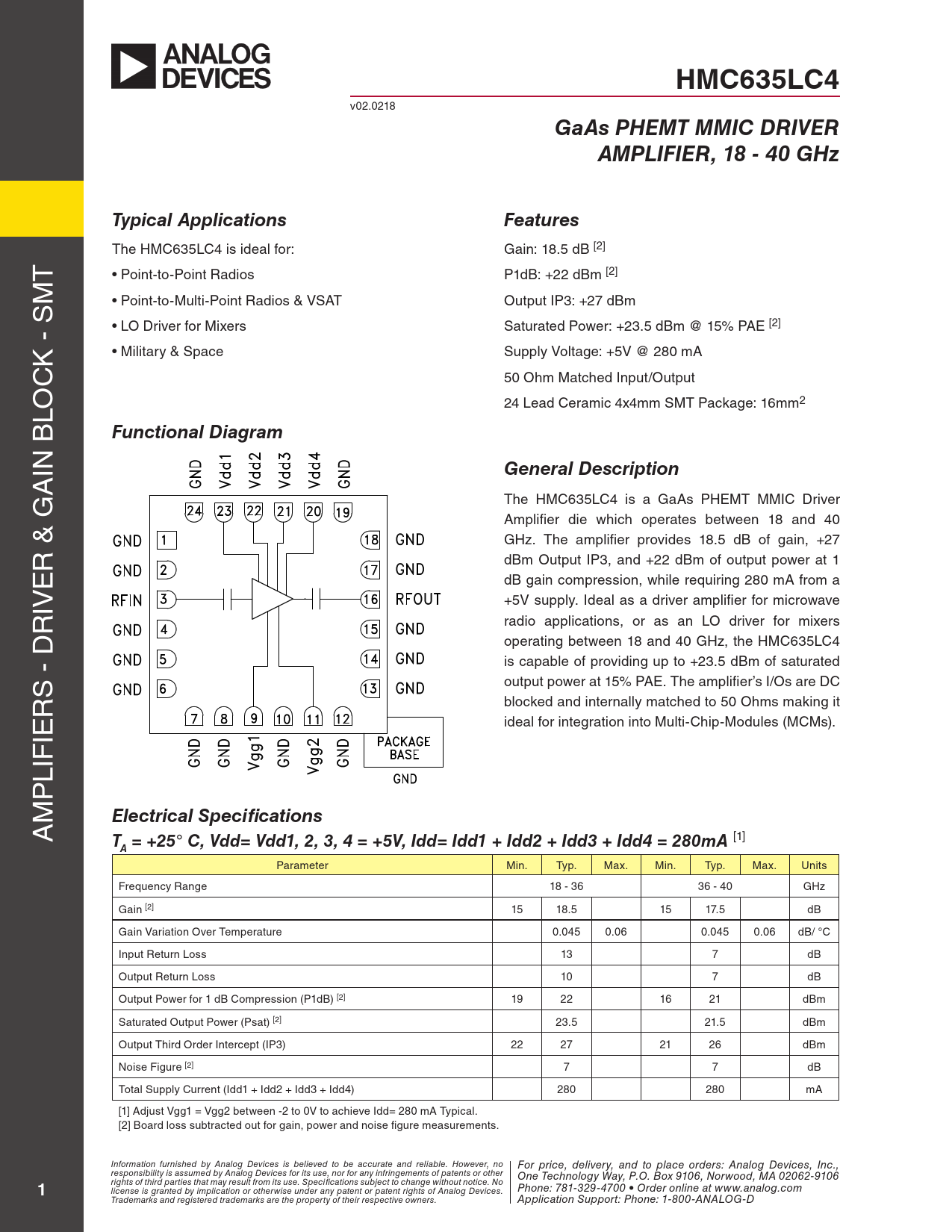

HMC635LC4
v02.0218
GaAs PHEMT MMIC DRIVER AMPLIFIER, 18 - 40 GHz Typical Applications Features
The HMC635LC4 is ideal for: Gain: 18.5 dB [2] T • Point-to-Point Radios P1dB: +22 dBm [2] M • Point-to-Multi-Point Radios & VSAT Output IP3: +27 dBm • LO Driver for Mixers Saturated Power: +23.5 dBm @ 15% PAE [2] K - S • Military & Space Supply Voltage: +5V @ 280 mA C 50 Ohm Matched Input/Output LO 24 Lead Ceramic 4x4mm SMT Package: 16mm2
Functional Diagram
IN B
General Description
A The HMC635LC4 is a GaAs PHEMT MMIC Driver Amplifier die which operates between 18 and 40 GHz. The amplifier provides 18.5 dB of gain, +27 R & G dBm Output IP3, and +22 dBm of output power at 1 E dB gain compression, while requiring 280 mA from a IV +5V supply. Ideal as a driver amplifier for microwave R radio applications, or as an LO driver for mixers operating between 18 and 40 GHz, the HMC635LC4 is capable of providing up to +23.5 dBm of saturated S - D output power at 15% PAE. The amplifier’s I/Os are DC R blocked and internal y matched to 50 Ohms making it IE ideal for integration into Multi-Chip-Modules (MCMs). LIF P M
Electrical Specifications
A
T = +25° C, Vdd= Vdd1, 2, 3, 4 = +5V, Idd= Idd1 + Idd2 + Idd3 + Idd4 = 280mA
[1]
A
Parameter Min. Typ. Max. Min. Typ. Max. Units Frequency Range 18 - 36 36 - 40 GHz Gain [2] 15 18.5 15 17.5 dB Gain Variation Over Temperature 0.045 0.06 0.045 0.06 dB/ °C Input Return Loss 13 7 dB Output Return Loss 10 7 dB Output Power for 1 dB Compression (P1dB) [2] 19 22 16 21 dBm Saturated Output Power (Psat) [2] 23.5 21.5 dBm Output Third Order Intercept (IP3) 22 27 21 26 dBm Noise Figure [2] 7 7 dB Total Supply Current (Idd1 + Idd2 + Idd3 + Idd4) 280 280 mA [1] Adjust Vgg1 = Vgg2 between -2 to 0V to achieve Idd= 280 mA Typical. [2] Board loss subtracted out for gain, power and noise figure measurements. Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
1
rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D Document Outline Typical Applications Features Functional Diagram General Description Electrical Specifications Reverse Isolation vs. Temperature Gain & Power vs. Supply Voltage @ 30 GHz Noise Figure vs. Temperature Power Compression @ 40 GHz Power Compression @ 30 GHz Psat vs. Temperature P1dB vs. Temperature Output Return Loss vs. Temperature Input Return Loss vs. Temperature Gain vs. Temperature Broadband Gain & Return Loss Output IP3 vs. Temperature Absolute Maximum Ratings Typical Supply Current vs. Vdd Outline Drawing Pin Descriptions Application Circuit Evaluation PCB List of Materials
