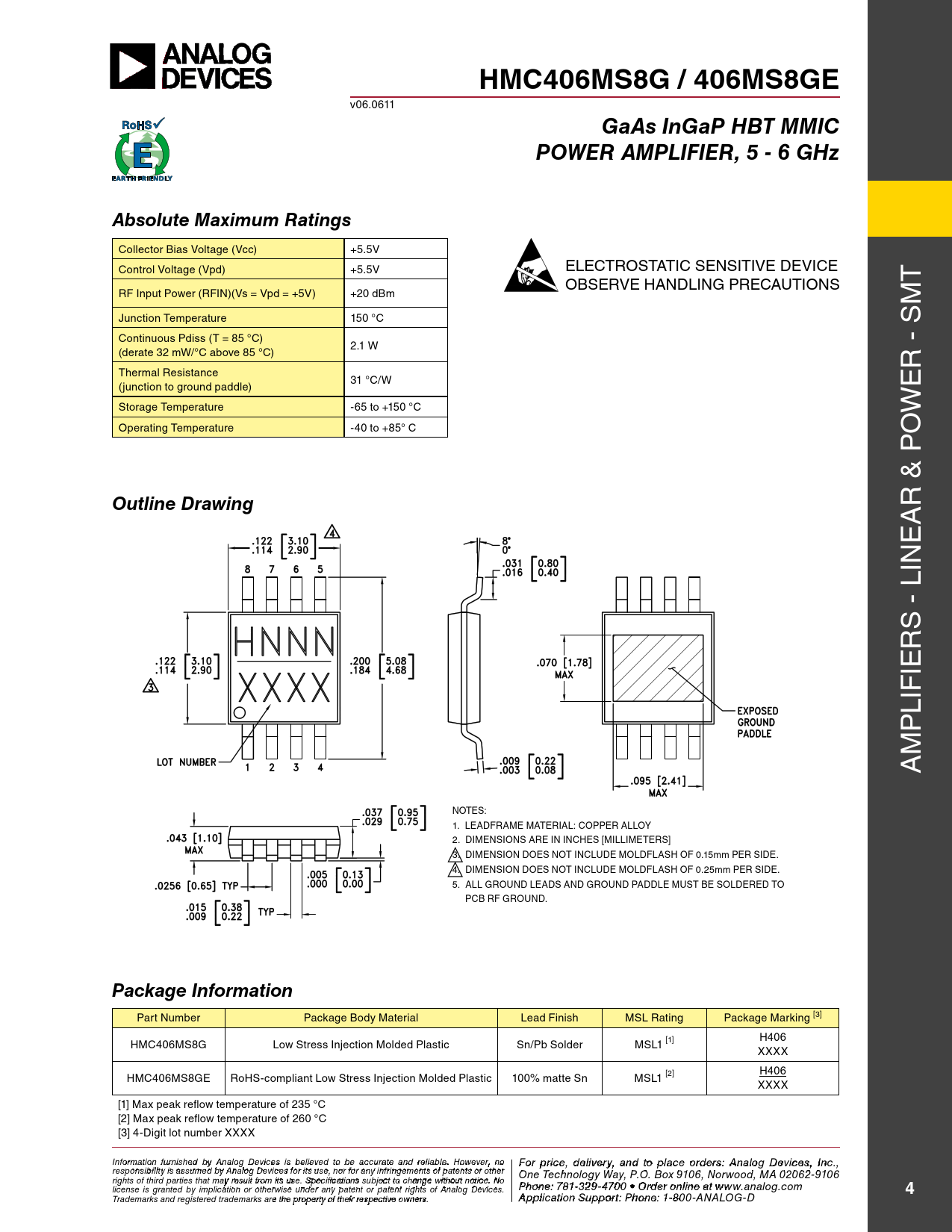

HMC406MS8G / 406MS8GE. GaAs InGaP HBT MMIC. POWER AMPLIFIER, 5 - 6 GHz. Absolute Maximum Ratings. Outline Drawing
该数据表的模型线
文件文字版本
HMC406MS8G / 406MS8GE
v06.0611
GaAs InGaP HBT MMIC POWER AMPLIFIER, 5 - 6 GHz Absolute Maximum Ratings
Collector Bias Voltage (Vcc) +5.5V Control Voltage (Vpd) +5.5V eleCTrosTATiC sensiTiVe DeViCe T OBSERVE HANDLING PRECAUTIONS rf input power (rfin)(Vs = Vpd = +5V) +20 dBm m Junction Temperature 150 °C s Continuous pdiss (T = 85 °C) 2.1 w (derate 32 mw/°C above 85 °C) r - Thermal resistance 31 °C/w (junction to ground paddle) e storage Temperature -65 to +150 °C w operating Temperature -40 to +85° C o p
Outline Drawing
r & A e lin s - r ie lif p m A noTes: 1. leADfrAme mATeriAl: Copper AlloY 2. Dimensions Are in inCHes [millimeTers] 3. DIMENSION DOES NOT INCLUDE MOLDFLASH OF 0.15mm PER SIDE. 4. DIMENSION DOES NOT INCLUDE MOLDFLASH OF 0.25mm PER SIDE. 5. ALL GROUND LEADS AND GROUND PADDLE MUST BE SOLDERED TO PCB RF GROUND.
Package Information
part number package Body material lead finish msl rating package marking [3] HmC406ms8G low stress injection molded plastic sn/pb solder msl1 [1] H406 XXXX HmC406ms8Ge roHs-compliant low stress injection molded plastic 100% matte sn msl1 [2] H406 XXXX [1] max peak reflow temperature of 235 °C [2] max peak reflow temperature of 260 °C [3] 4-Digit lot number XXXX Inf F or o m r p atio r n ifc ur e n , d ishe e d lbiv y e A r n y a alog n D d t evic o p es is la beclie o eved rd to ebre sa: H ccur iattti e tae M nd re ilicarbloew . H a o ve C wever, o n rp o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other oration, 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No P rd ho e ne r O : 7 n 81- -3li 2n 9 e a -47 t w 0 w 0 • O w rd .h e it r o tniltie n .c e ao t m license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com
