Datasheet ADL9006 (Analog Devices) - 3
| 制造商 | Analog Devices |
| 描述 | 2 GHz to 28 GHz, GaAs, pHEMT, MMIC Low Noise Amplifier |
| 页数 / 页 | 14 / 3 — Data Sheet. ADL9006. SPECIFICATIONS 2 GHz TO 6 GHz. Table 1. Parameter … |
| 文件格式/大小 | PDF / 400 Kb |
| 文件语言 | 英语 |
Data Sheet. ADL9006. SPECIFICATIONS 2 GHz TO 6 GHz. Table 1. Parameter Symbol. Test. Conditions/Comments. Min. Typ. Max. Unit
该数据表的模型线
文件文字版本

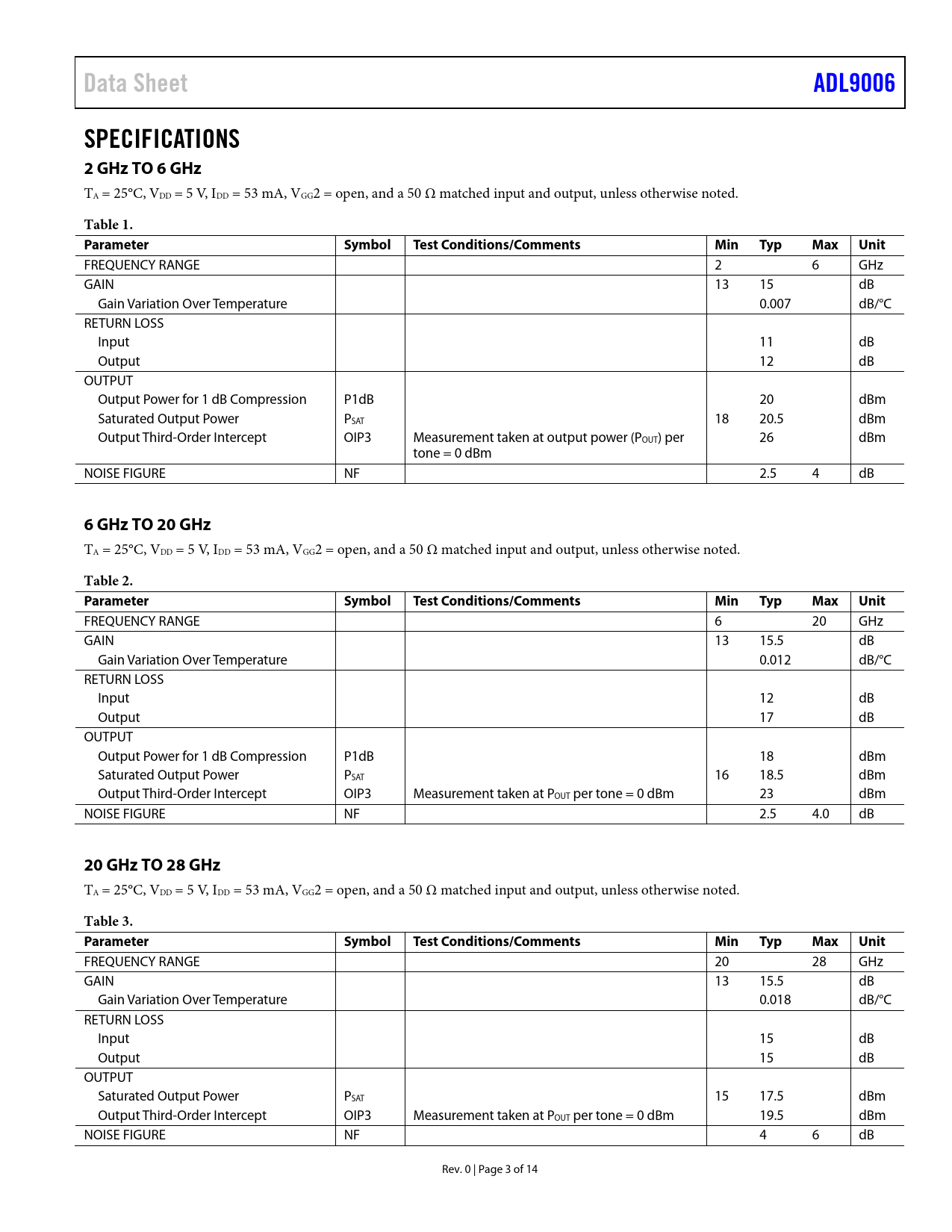

Data Sheet ADL9006 SPECIFICATIONS 2 GHz TO 6 GHz
TA = 25°C, VDD = 5 V, IDD = 53 mA, VGG2 = open, and a 50 Ω matched input and output, unless otherwise noted.
Table 1. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
FREQUENCY RANGE 2 6 GHz GAIN 13 15 dB Gain Variation Over Temperature 0.007 dB/°C RETURN LOSS Input 11 dB Output 12 dB OUTPUT Output Power for 1 dB Compression P1dB 20 dBm Saturated Output Power PSAT 18 20.5 dBm Output Third-Order Intercept OIP3 Measurement taken at output power (POUT) per 26 dBm tone = 0 dBm NOISE FIGURE NF 2.5 4 dB
6 GHz TO 20 GHz
TA = 25°C, VDD = 5 V, IDD = 53 mA, VGG2 = open, and a 50 Ω matched input and output, unless otherwise noted.
Table 2. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
FREQUENCY RANGE 6 20 GHz GAIN 13 15.5 dB Gain Variation Over Temperature 0.012 dB/°C RETURN LOSS Input 12 dB Output 17 dB OUTPUT Output Power for 1 dB Compression P1dB 18 dBm Saturated Output Power PSAT 16 18.5 dBm Output Third-Order Intercept OIP3 Measurement taken at POUT per tone = 0 dBm 23 dBm NOISE FIGURE NF 2.5 4.0 dB
20 GHz TO 28 GHz
TA = 25°C, VDD = 5 V, IDD = 53 mA, VGG2 = open, and a 50 Ω matched input and output, unless otherwise noted.
Table 3. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
FREQUENCY RANGE 20 28 GHz GAIN 13 15.5 dB Gain Variation Over Temperature 0.018 dB/°C RETURN LOSS Input 15 dB Output 15 dB OUTPUT Saturated Output Power PSAT 15 17.5 dBm Output Third-Order Intercept OIP3 Measurement taken at POUT per tone = 0 dBm 19.5 dBm NOISE FIGURE NF 4 6 dB Rev. 0 | Page 3 of 14 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications 2 GHz to 6 GHz 6 GHz to 20 GHz 20 GHz to 28 GHz DC Specifications Absolute Maximum Ratings Electrostatic Discharge (ESD) Ratings ESD Ratings for ADL9006 ESD Caution Pin Configuration and Function Descriptions Interface Schematics Typical Performance Characteristics Theory of Operation Applications Information Biasing Procedures Outline Dimensions Ordering Guide
