Datasheet HMC1049LP5E (Analog Devices) - 4

制造商Analog Devices
描述GaAs, pHEMT, MMIC, Low Noise Amplifier, 0.3 GHz to 20 GHz
页数 / 页14 / 4 — HMC1049LP5E. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 2. Table 3. …
修订版B
文件格式/大小PDF / 333 Kb
文件语言英语

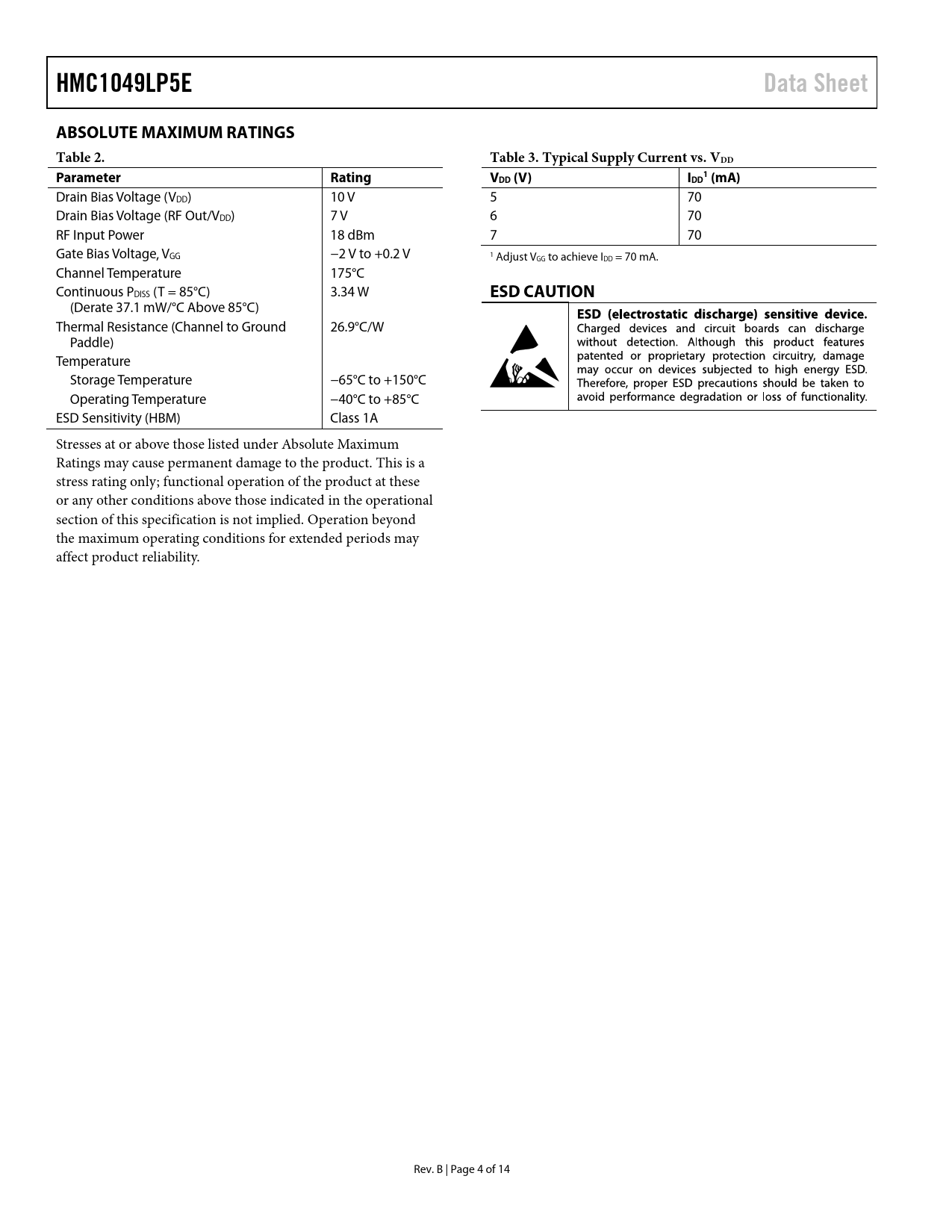

HMC1049LP5E. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 2. Table 3. Typical Supply Current vs. VDD. Parameter Rating. DD (V)

HMC1049LP5E Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2 Table 3 Typical Supply Current vs VDD Parameter Rating DD (V)

该数据表的模型线

文件文字版本

HMC1049LP5E Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2. Table 3. Typical Supply Current vs. VDD Parameter Rating V 1 DD (V) IDD (mA)
Drain Bias Voltage (VDD) 10 V 5 70 Drain Bias Voltage (RF Out/VDD) 7 V 6 70 RF Input Power 18 dBm 7 70 Gate Bias Voltage, VGG −2 V to +0.2 V 1 Adjust VGG to achieve IDD = 70 mA. Channel Temperature 175°C Continuous PDISS (T = 85°C) 3.34 W
ESD CAUTION
(Derate 37.1 mW/°C Above 85°C) Thermal Resistance (Channel to Ground 26.9°C/W Paddle) Temperature Storage Temperature −65°C to +150°C Operating Temperature −40°C to +85°C ESD Sensitivity (HBM) Class 1A Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. B | Page 4 of 14 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Interface Schematics Typical Performance Characteristics Evaluation Printed Circuit Board Packaging and Ordering Information Outline Dimensions Ordering Guide
