HMC963LC4
v02.0614

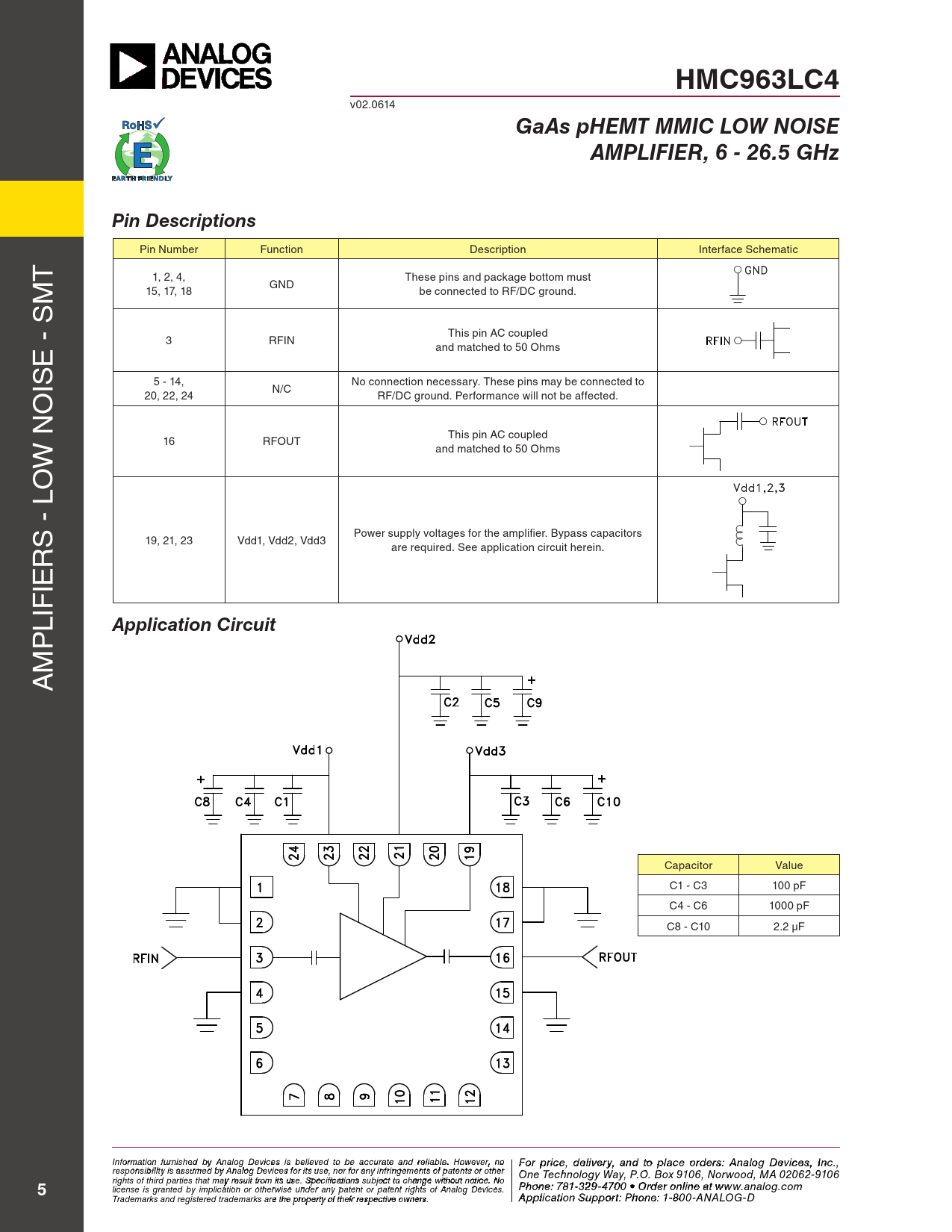

GaAs pHEMT MMIC LOW NOISE AMPLIFIER, 6 - 26.5 GHz Pin Descriptions
Pin Number Function Description Interface Schematic T 1, 2, 4, These pins and package bottom must M GND 15, 17, 18 be connected to RF/DC ground. This pin AC coupled 3 RFIN E - S and matched to 50 Ohms IS 5 - 14, No connection necessary. These pins may be connected to O N/C 20, 22, 24 RF/DC ground. Performance will not be affected. This pin AC coupled 16 RFOUT W N and matched to 50 Ohms O S - L Power supply voltages for the amplifier. Bypass capacitors 19, 21, 23 Vdd1, Vdd2, Vdd3 R are required. See application circuit herein. IE LIF
Application Circuit
P M A Capacitor Value C1 - C3 100 pF C4 - C6 1000 pF C8 - C10 2.2 µF Inf F or o m r p atio r n ifc ur e n , d ishe e d lbiv y e A r n y a alog n D d t evic o p es is la beclie o eved rd to ebre sa: H ccur iattti e tae M nd re ilicarbloew . H a o ve C wever, o n rp o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other oration, 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No P rd hone e r O : 7 n 81- -3li 2n 9 e a -47 t w 0 w 0 • O w rd .h e it r o t niltie n .c e ao t m
