Datasheet HMC-ALH482 (Analog Devices)
| 制造商 | Analog Devices |
| 描述 | GaAs HEMT MMIC LOW NOISE AMPLIFIER, 2 - 22 GHz |
| 页数 / 页 | 6 / 1 — HMC-ALH482. GaAs HEMT MMIC LOW NOISE. AMPLIFIER, 2 - 22 GHz. Typical … |
| 文件格式/大小 | PDF / 287 Kb |
| 文件语言 | 英语 |
HMC-ALH482. GaAs HEMT MMIC LOW NOISE. AMPLIFIER, 2 - 22 GHz. Typical Applications. Features. Functional Diagram
该数据表的模型线
文件文字版本

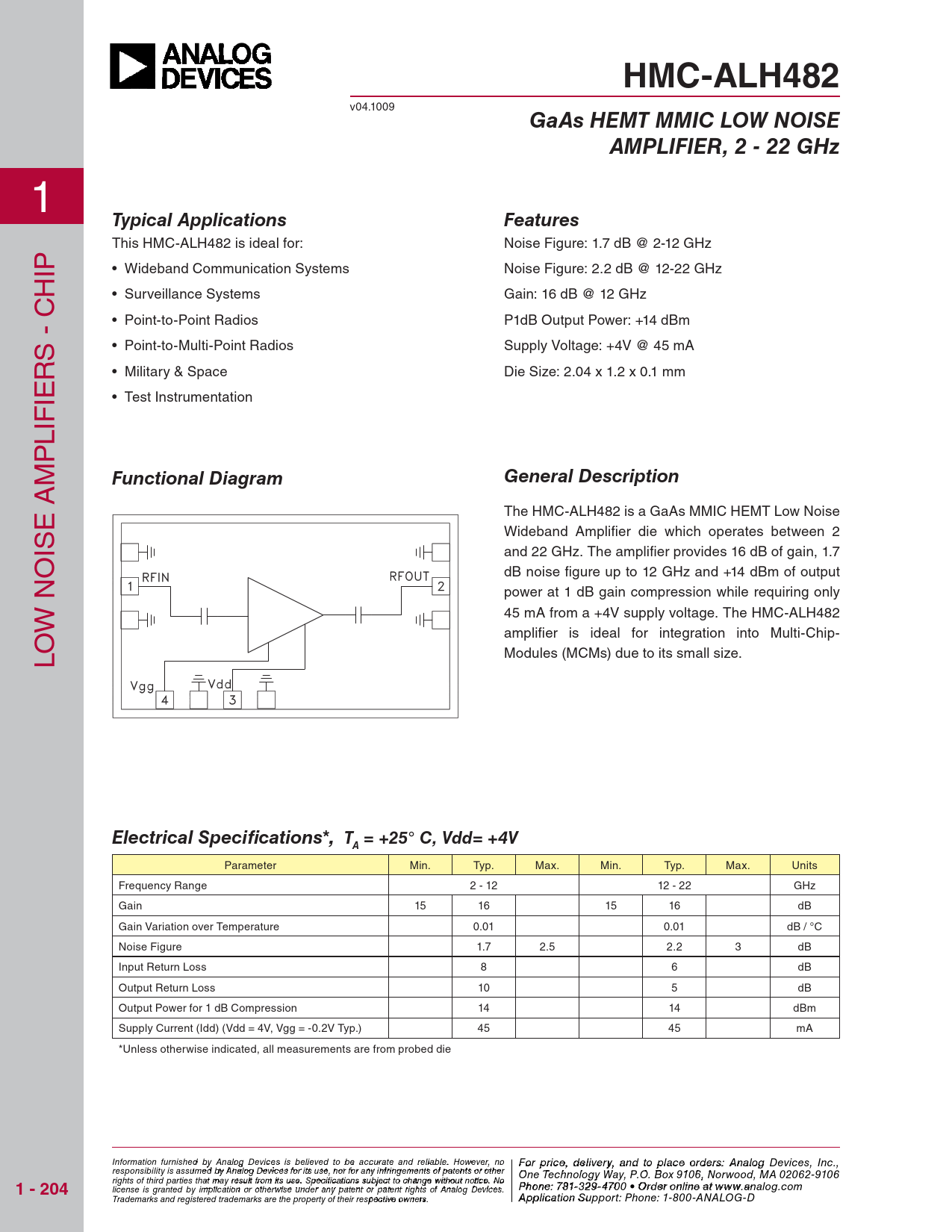

HMC-ALH482
v04.1009
GaAs HEMT MMIC LOW NOISE AMPLIFIER, 2 - 22 GHz
1
Typical Applications Features
This HMC-ALH482 is ideal for: Noise Figure: 1.7 dB @ 2-12 GHz IP • Wideband Communication Systems Noise Figure: 2.2 dB @ 12-22 GHz H • Surveillance Systems Gain: 16 dB @ 12 GHz C • Point-to-Point Radios P1dB Output Power: +14 dBm - • Point-to-Multi-Point Radios Supply Voltage: +4V @ 45 mA RS • Military & Space Die Size: 2.04 x 1.2 x 0.1 mm IE • Test Instrumentation IF L P M
Functional Diagram General Description
A E The HMC-ALH482 is a GaAs MMIC HEMT Low Noise Wideband Amplifi er die which operates between 2 IS and 22 GHz. The amplifi er provides 16 dB of gain, 1.7 O dB noise fi gure up to 12 GHz and +14 dBm of output N power at 1 dB gain compression while requiring only W 45 mA from a +4V supply voltage. The HMC-ALH482 amplifi er is ideal for integration into Multi-Chip- O L Modules (MCMs) due to its small size.
Electrical Specifi cations*, T = +25° C, Vdd= +4V A
Parameter Min. Typ. Max. Min. Typ. Max. Units Frequency Range 2 - 12 12 - 22 GHz Gain 15 16 15 16 dB Gain Variation over Temperature 0.01 0.01 dB / °C Noise Figure 1.7 2.5 2.2 3 dB Input Return Loss 8 6 dB Output Return Loss 10 5 dB Output Power for 1 dB Compression 14 14 dBm Supply Current (Idd) (Vdd = 4V, Vgg = -0.2V Typ.) 45 45 mA *Unless otherwise indicated, all measurements are from probed die Information furnish F ed obr pri y Anal ce, de og Device li s vie s r beyli, a eve nd to pla d to be accura ce o te and rder reliabl s e , pl . Ho ease co wever, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other ntact Hittite Microwave Corporation: One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No
1 - 204
20 Alpha Road, Chelmsford, MA 01824 Phone: 978 Phon - e 25 : 7 0 81--3 32 3 9 4 - 3 F 70 ax 0 • O : 978 rder on -li25 n 0 e a - t 33 ww 73 license is granted by implication or otherwise under any patent or patent rights of Analog Devices. w.analog.com Order On Trademarks and registered trademarks are the property of their respective owners. -line at www.h A it p tpite.co licatio m n Support: Phone: 1-800-ANALOG-D
