Datasheet HMC517 (Analog Devices)
| 制造商 | Analog Devices |
| 描述 | GaAs PHEMT MMIC LOW NOISE AMPLIFIER, 17 - 26 GHz |
| 页数 / 页 | 6 / 1 — HMC517. Gaas PHEMT MMIC LOW NOIsE. AMPLIFIER, 17 - 26 GHz. Typical … |
| 文件格式/大小 | PDF / 565 Kb |
| 文件语言 | 英语 |
HMC517. Gaas PHEMT MMIC LOW NOIsE. AMPLIFIER, 17 - 26 GHz. Typical Applications. Features. Functional Diagram. General Description
该数据表的模型线
文件文字版本

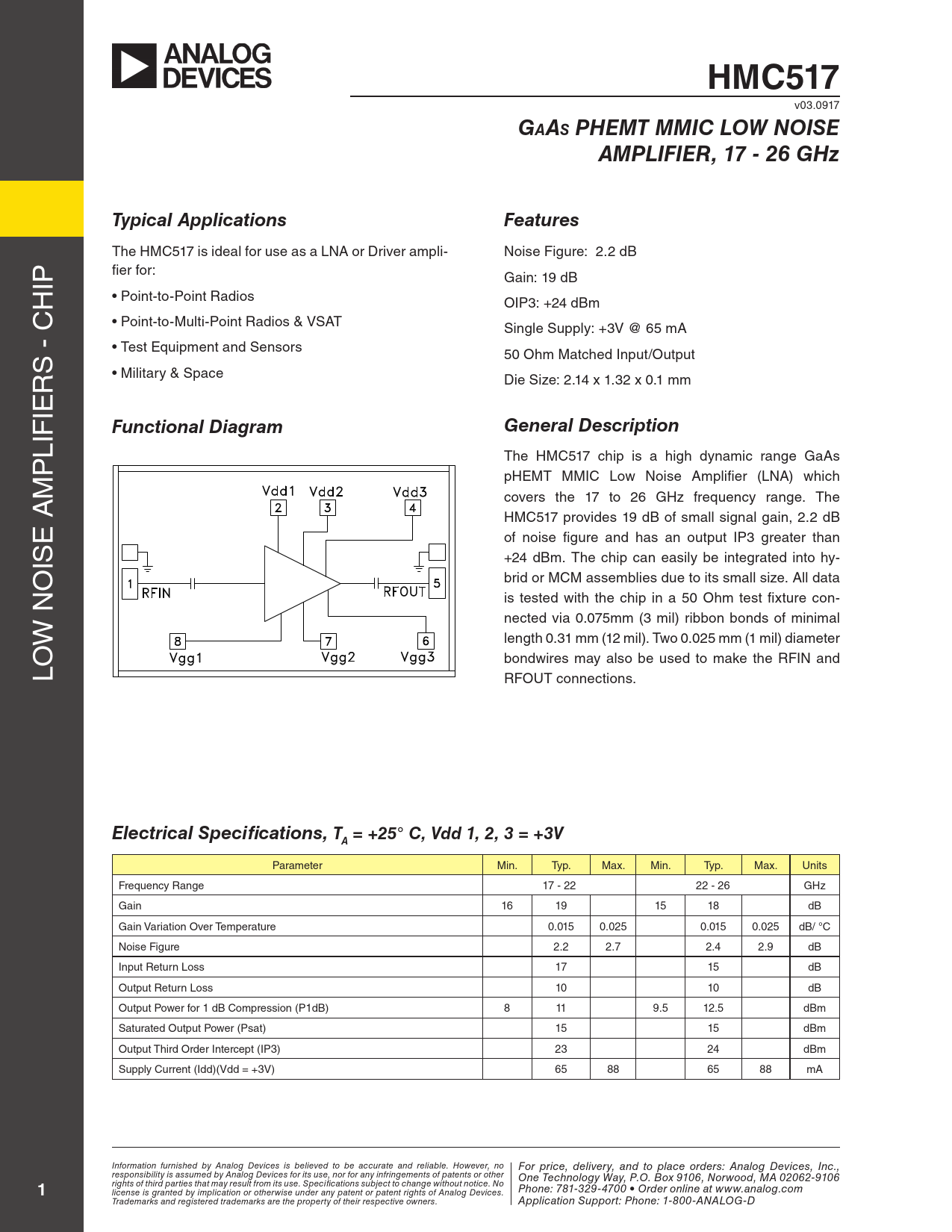

HMC517
v03.0917
Gaas PHEMT MMIC LOW NOIsE AMPLIFIER, 17 - 26 GHz Typical Applications Features
The HMC517 is ideal for use as a LNA or Driver ampli- Noise Figure: 2.2 dB IP fier for: Gain: 19 dB H • Point-to-Point Radios OIP3: +24 dBm C • Point-to-Multi-Point Radios & VSAT Single Supply: +3V @ 65 mA - • Test Equipment and Sensors S 50 Ohm Matched Input/Output R • Military & Space Die Size: 2.14 x 1.32 x 0.1 mm IE
Functional Diagram General Description
LIF P The HMC517 chip is a high dynamic range GaAs M pHEMT MMIC Low Noise Amplifier (LNA) which covers the 17 to 26 GHz frequency range. The A HMC517 provides 19 dB of small signal gain, 2.2 dB E of noise figure and has an output IP3 greater than IS +24 dBm. The chip can easily be integrated into hy- O brid or MCM assemblies due to its small size. All data N is tested with the chip in a 50 Ohm test fixture con- nected via 0.075mm (3 mil) ribbon bonds of minimal W length 0.31 mm (12 mil). Two 0.025 mm (1 mil) diameter LO bondwires may also be used to make the RFIN and RFOUT connections.
Electrical Specifications, T = +25° C, Vdd 1, 2, 3 = +3V A
Parameter Min. Typ. Max. Min. Typ. Max. Units Frequency Range 17 - 22 22 - 26 GHz Gain 16 19 15 18 dB Gain Variation Over Temperature 0.015 0.025 0.015 0.025 dB/ °C Noise Figure 2.2 2.7 2.4 2.9 dB Input Return Loss 17 15 dB Output Return Loss 10 10 dB Output Power for 1 dB Compression (P1dB) 8 11 9.5 12.5 dBm Saturated Output Power (Psat) 15 15 dBm Output Third Order Intercept (IP3) 23 24 dBm Supply Current (Idd)(Vdd = +3V) 65 88 65 88 mA Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
1
rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D
