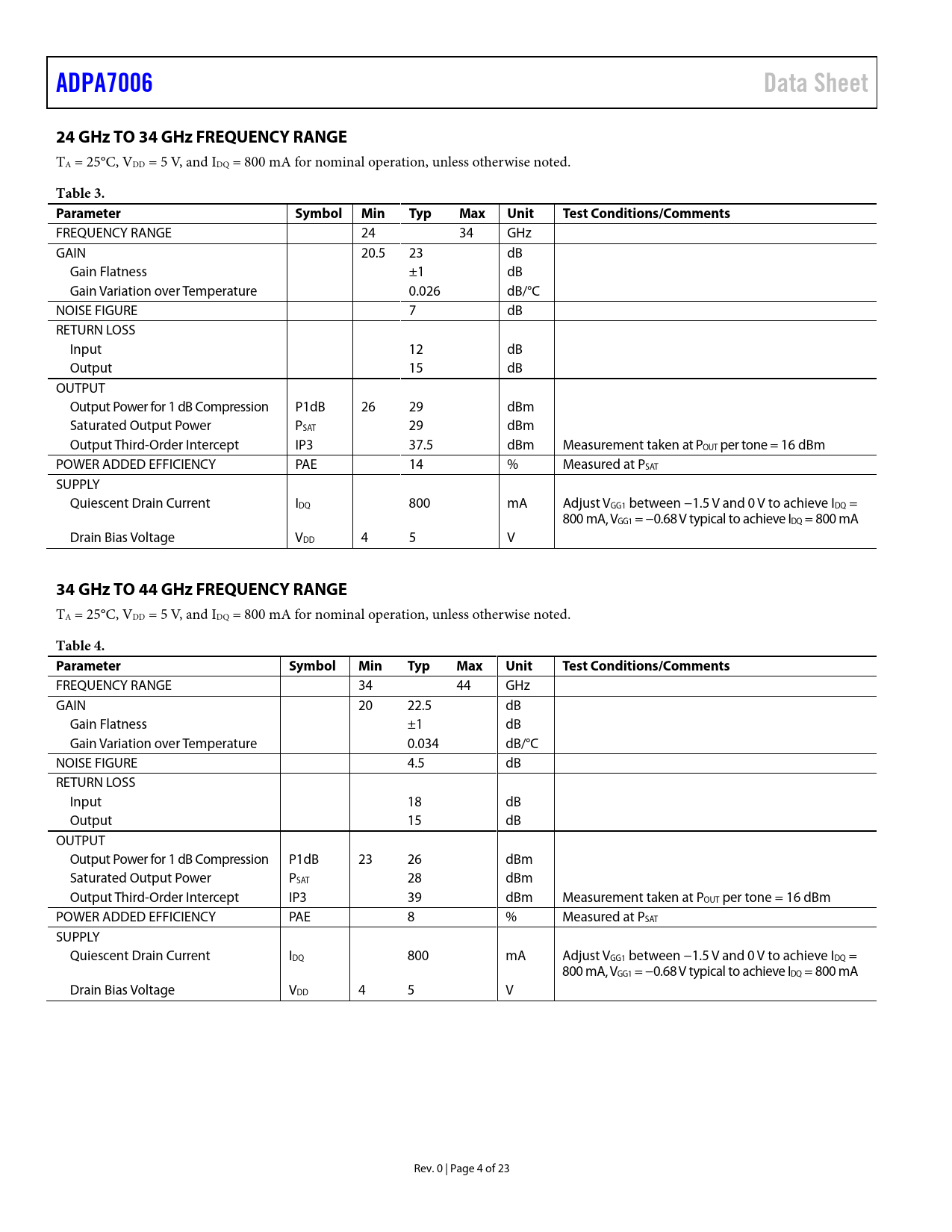

ADPA7006. Data Sheet. 24 GHz TO 34 GHz FREQUENCY RANGE. Table 3. Parameter. Symbol Min. Typ. Max. Unit. Test Conditions/Comments
该数据表的模型线
文件文字版本
ADPA7006 Data Sheet 24 GHz TO 34 GHz FREQUENCY RANGE
TA = 25°C, VDD = 5 V, and IDQ = 800 mA for nominal operation, unless otherwise noted.
Table 3. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
FREQUENCY RANGE 24 34 GHz GAIN 20.5 23 dB Gain Flatness ±1 dB Gain Variation over Temperature 0.026 dB/°C NOISE FIGURE 7 dB RETURN LOSS Input 12 dB Output 15 dB OUTPUT Output Power for 1 dB Compression P1dB 26 29 dBm Saturated Output Power PSAT 29 dBm Output Third-Order Intercept IP3 37.5 dBm Measurement taken at POUT per tone = 16 dBm POWER ADDED EFFICIENCY PAE 14 % Measured at PSAT SUPPLY Quiescent Drain Current IDQ 800 mA Adjust VGG1 between −1.5 V and 0 V to achieve IDQ = 800 mA, VGG1 = −0.68 V typical to achieve IDQ = 800 mA Drain Bias Voltage VDD 4 5 V
34 GHz TO 44 GHz FREQUENCY RANGE
TA = 25°C, VDD = 5 V, and IDQ = 800 mA for nominal operation, unless otherwise noted.
Table 4. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
FREQUENCY RANGE 34 44 GHz GAIN 20 22.5 dB Gain Flatness ±1 dB Gain Variation over Temperature 0.034 dB/°C NOISE FIGURE 4.5 dB RETURN LOSS Input 18 dB Output 15 dB OUTPUT Output Power for 1 dB Compression P1dB 23 26 dBm Saturated Output Power PSAT 28 dBm Output Third-Order Intercept IP3 39 dBm Measurement taken at POUT per tone = 16 dBm POWER ADDED EFFICIENCY PAE 8 % Measured at PSAT SUPPLY Quiescent Drain Current IDQ 800 mA Adjust VGG1 between −1.5 V and 0 V to achieve IDQ = 800 mA, VGG1 = −0.68 V typical to achieve IDQ = 800 mA Drain Bias Voltage VDD 4 5 V Rev. 0 | Page 4 of 23 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS 18 GHz TO 24 GHz FREQUENCY RANGE 20 GHz TO 24 GHz FREQUENCY RANGE 24 GHz TO 34 GHz FREQUENCY RANGE 34 GHz TO 44 GHz FREQUENCY RANGE ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS CONSTANT IDD OPERATION THEORY OF OPERATION APPLICATIONS INFORMATION BIASING PROCEDURES BIASING THE ADPA7006 WITH THE HMC980LP4E APPLICATION CIRCUIT SETUP LIMITING VGATE AND VNEG TO MEET ADPA7006 VGG1 ABSOLUTE MAXIMUM RATINGS REQUIREMENT HMC980LP4E BIAS SEQUENCE CONSTANT DRAIN CURRENT BIASING vs. CONSTANT GATE VOLTAGE BIASING OUTLINE DIMENSIONS ORDERING GUIDE
