Datasheet ADPA7006CHIP (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | 18 GHz to 44 GHz, GaAs, pHEMT, MMIC, 1/2 W Power Amplifier |
| 页数 / 页 | 24 / 5 — Data Sheet. ADPA7006CHIP. ABSOLUTE MAXIMUM RATINGS Table 5. THERMAL … |
| 文件格式/大小 | PDF / 465 Kb |
| 文件语言 | 英语 |

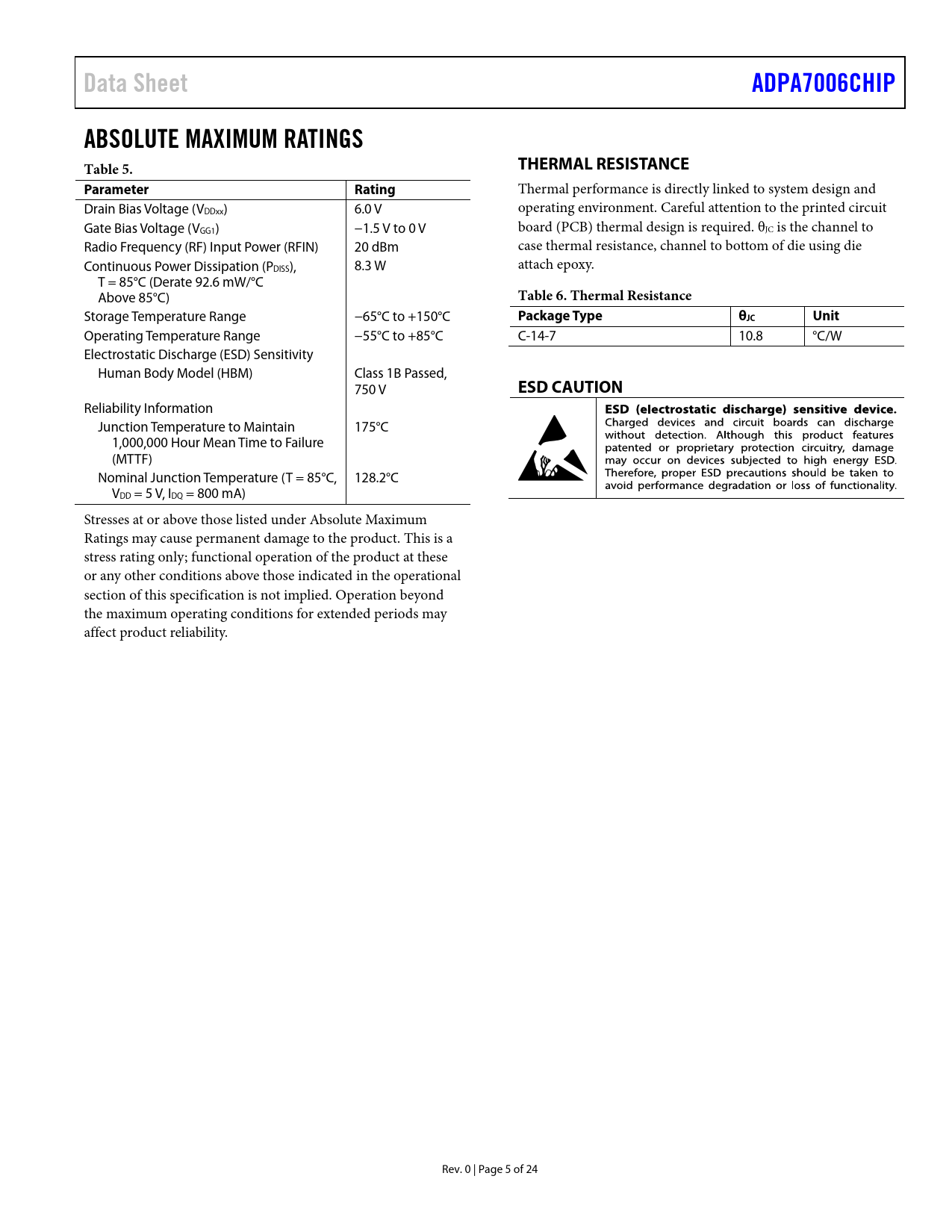

Data Sheet. ADPA7006CHIP. ABSOLUTE MAXIMUM RATINGS Table 5. THERMAL RESISTANCE. Parameter Rating. Table 6. Thermal Resistance
该数据表的模型线
文件文字版本
Data Sheet ADPA7006CHIP ABSOLUTE MAXIMUM RATINGS Table 5. THERMAL RESISTANCE Parameter Rating
Thermal performance is directly linked to system design and Drain Bias Voltage (VDDxx) 6.0 V operating environment. Careful attention to the printed circuit Gate Bias Voltage (VGG1) −1.5 V to 0 V board (PCB) thermal design is required. θJC is the channel to Radio Frequency (RF) Input Power (RFIN) 20 dBm case thermal resistance, channel to bottom of die using die Continuous Power Dissipation (PDISS), 8.3 W attach epoxy. T = 85°C (Derate 92.6 mW/°C Above 85°C)
Table 6. Thermal Resistance
Storage Temperature Range −65°C to +150°C
Package Type θJC Unit
Operating Temperature Range −55°C to +85°C C-14-7 10.8 °C/W Electrostatic Discharge (ESD) Sensitivity Human Body Model (HBM) Class 1B Passed, 750 V
