Datasheet ADTR1107 (Analog Devices)
| 制造商 | Analog Devices |
| 描述 | 6 GHz to 18 GHz, Front-End IC |
| 页数 / 页 | 28 / 1 — 6 GHz to 18 GHz, Front-End IC. Data Sheet. ADTR1107. FEATURES. FUNCTIONAL … |
| 修订版 | A |
| 文件格式/大小 | PDF / 943 Kb |
| 文件语言 | 英语 |
6 GHz to 18 GHz, Front-End IC. Data Sheet. ADTR1107. FEATURES. FUNCTIONAL BLOCK DIAGRAM. VDD_LNA VGG_LNA. VSS_SW CTRL_SW VDD_SW
该数据表的模型线
文件文字版本

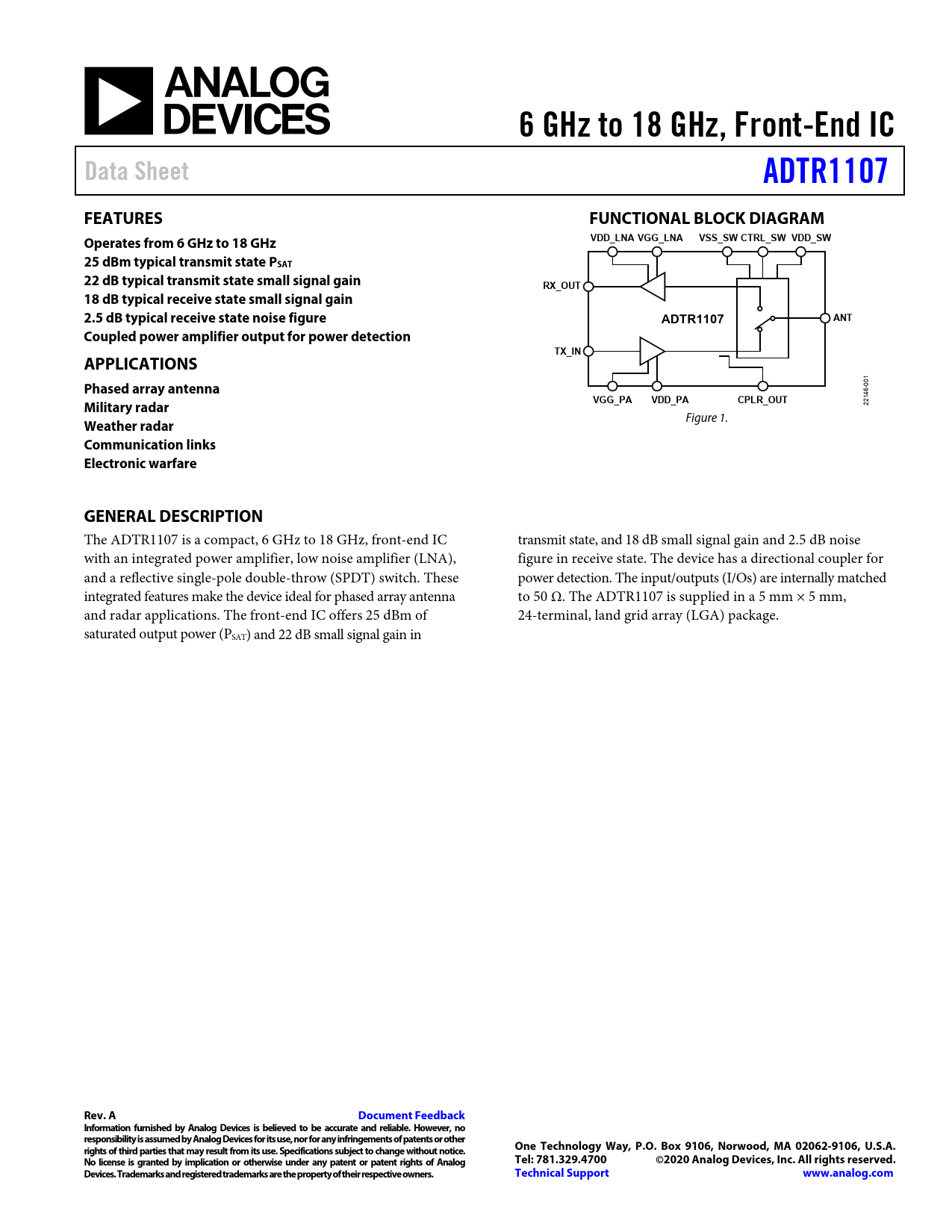

6 GHz to 18 GHz, Front-End IC Data Sheet ADTR1107 FEATURES FUNCTIONAL BLOCK DIAGRAM VDD_LNA VGG_LNA VSS_SW CTRL_SW VDD_SW Operates from 6 GHz to 18 GHz 25 dBm typical transmit state PSAT 22 dB typical transmit state small signal gain RX_OUT 18 dB typical receive state small signal gain 2.5 dB typical receive state noise figure ADTR1107 ANT Coupled power amplifier output for power detection TX_IN APPLICATIONS
001
Phased array antenna
46-
VGG_PA VDD_PA CPLR_OUT Military radar
221 Figure 1.
Weather radar Communication links Electronic warfare GENERAL DESCRIPTION
The ADTR1107 is a compact, 6 GHz to 18 GHz, front-end IC transmit state, and 18 dB small signal gain and 2.5 dB noise with an integrated power amplifier, low noise amplifier (LNA), figure in receive state. The device has a directional coupler for and a reflective single-pole double-throw (SPDT) switch. These power detection. The input/outputs (I/Os) are internally matched integrated features make the device ideal for phased array antenna to 50 Ω. The ADTR1107 is supplied in a 5 mm × 5 mm, and radar applications. The front-end IC offers 25 dBm of 24-terminal, land grid array (LGA) package. saturated output power (PSAT) and 22 dB small signal gain in
