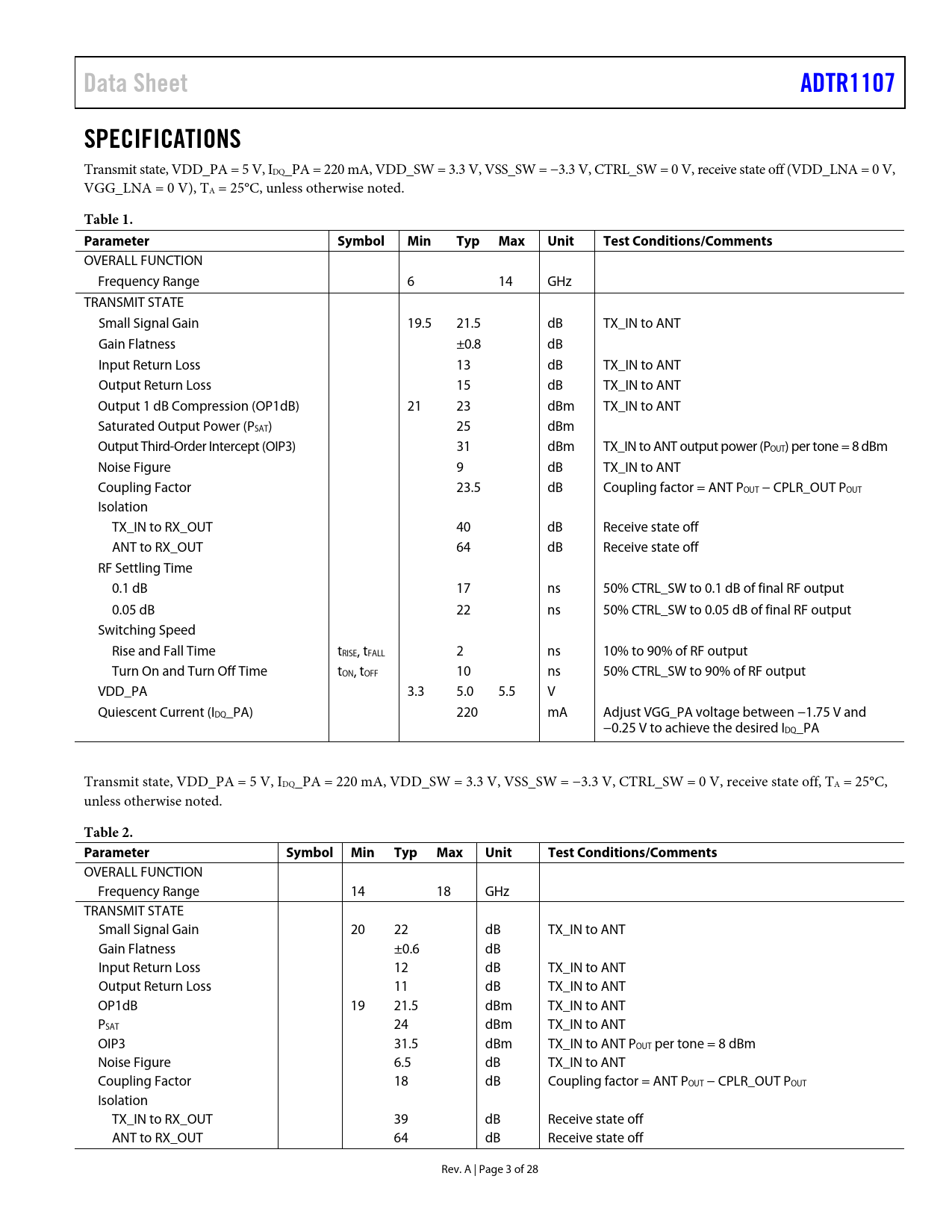

Data Sheet. ADTR1107. SPECIFICATIONS. Table 1. Parameter Symbol. Min. Typ. Max. Unit. Test. Conditions/Comments. Table 2. Parameter Symbol
该数据表的模型线
文件文字版本
Data Sheet ADTR1107 SPECIFICATIONS
Transmit state, VDD_PA = 5 V, IDQ_PA = 220 mA, VDD_SW = 3.3 V, VSS_SW = −3.3 V, CTRL_SW = 0 V, receive state off (VDD_LNA = 0 V, VGG_LNA = 0 V), TA = 25°C, unless otherwise noted.
Table 1. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
OVERALL FUNCTION Frequency Range 6 14 GHz TRANSMIT STATE Small Signal Gain 19.5 21.5 dB TX_IN to ANT Gain Flatness ±0.8 dB Input Return Loss 13 dB TX_IN to ANT Output Return Loss 15 dB TX_IN to ANT Output 1 dB Compression (OP1dB) 21 23 dBm TX_IN to ANT Saturated Output Power (PSAT) 25 dBm Output Third-Order Intercept (OIP3) 31 dBm TX_IN to ANT output power (POUT) per tone = 8 dBm Noise Figure 9 dB TX_IN to ANT Coupling Factor 23.5 dB Coupling factor = ANT POUT − CPLR_OUT POUT Isolation TX_IN to RX_OUT 40 dB Receive state off ANT to RX_OUT 64 dB Receive state off RF Settling Time 0.1 dB 17 ns 50% CTRL_SW to 0.1 dB of final RF output 0.05 dB 22 ns 50% CTRL_SW to 0.05 dB of final RF output Switching Speed Rise and Fall Time tRISE, tFALL 2 ns 10% to 90% of RF output Turn On and Turn Off Time tON, tOFF 10 ns 50% CTRL_SW to 90% of RF output VDD_PA 3.3 5.0 5.5 V Quiescent Current (IDQ_PA) 220 mA Adjust VGG_PA voltage between −1.75 V and −0.25 V to achieve the desired IDQ_PA Transmit state, VDD_PA = 5 V, IDQ_PA = 220 mA, VDD_SW = 3.3 V, VSS_SW = −3.3 V, CTRL_SW = 0 V, receive state off, TA = 25°C, unless otherwise noted.
Table 2. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
OVERALL FUNCTION Frequency Range 14 18 GHz TRANSMIT STATE Small Signal Gain 20 22 dB TX_IN to ANT Gain Flatness ±0.6 dB Input Return Loss 12 dB TX_IN to ANT Output Return Loss 11 dB TX_IN to ANT OP1dB 19 21.5 dBm TX_IN to ANT PSAT 24 dBm TX_IN to ANT OIP3 31.5 dBm TX_IN to ANT POUT per tone = 8 dBm Noise Figure 6.5 dB TX_IN to ANT Coupling Factor 18 dB Coupling factor = ANT POUT − CPLR_OUT POUT Isolation TX_IN to RX_OUT 39 dB Receive state off ANT to RX_OUT 64 dB Receive state off Rev. A | Page 3 of 28 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS TRANSMIT STATE RECEIVE STATE THEORY OF OPERATION APPLICATIONS INFORMATION RECOMMENDED BIAS SEQUENCING TYPICAL APPLICATION CIRCUIT INTERFACING THE ADTR1107 TO THE ADAR1000 X BAND AND KU BAND BEAMFORMER OUTLINE DIMENSIONS ORDERING GUIDE
