HMC7885 Data Sheet EVALUATION BOARD ASSEMBLY

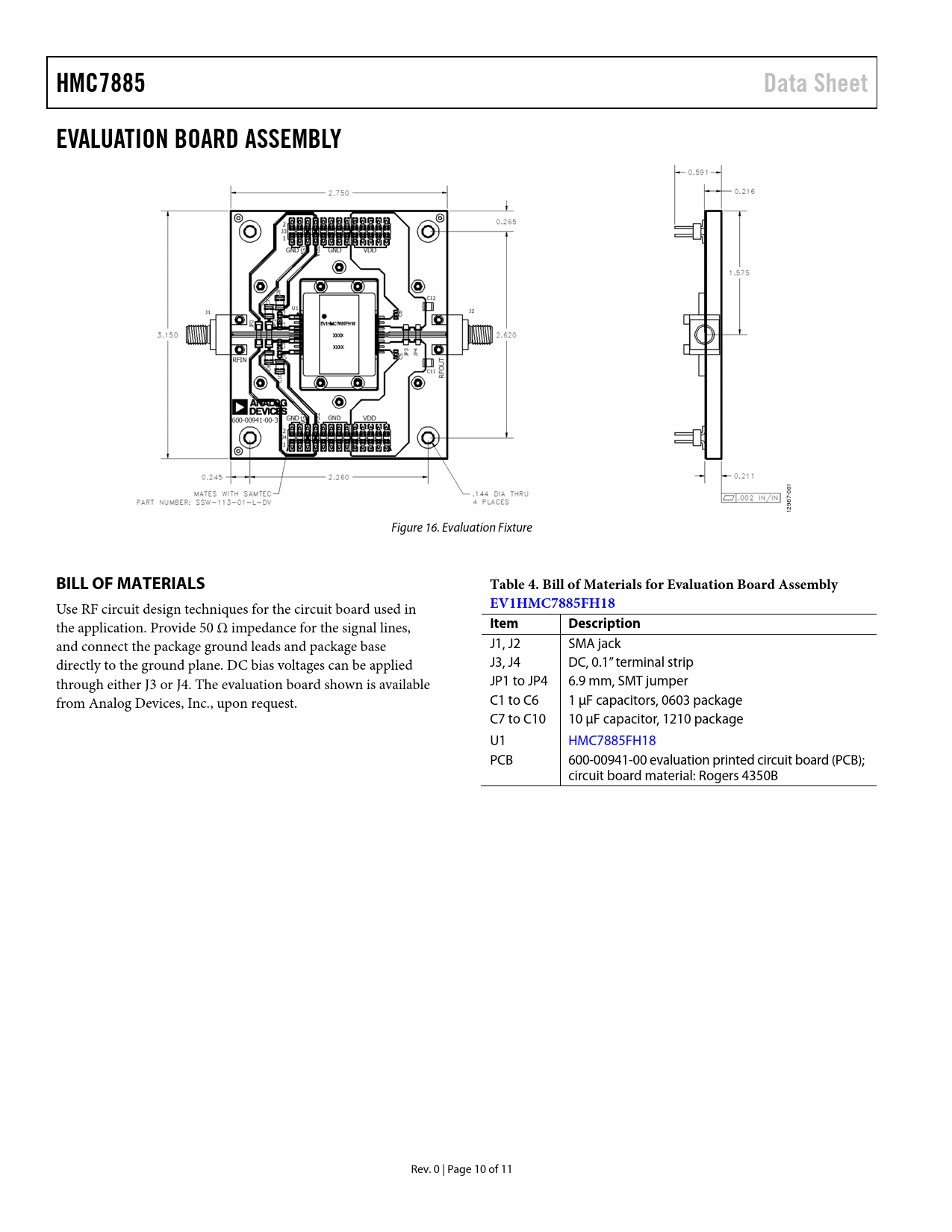

01 0 67- 129 Figure 16. Evaluation Fixture
BILL OF MATERIALS Table 4. Bill of Materials for Evaluation Board Assembly
Use RF circuit design techniques for the circuit board used in
EV1HMC7885FH18
the application. Provide 50 Ω impedance for the signal lines,
Item Description
and connect the package ground leads and package base J1, J2 SMA jack directly to the ground plane. DC bias voltages can be applied J3, J4 DC, 0.1” terminal strip through either J3 or J4. The evaluation board shown is available JP1 to JP4 6.9 mm, SMT jumper from Analog Devices, Inc., upon request. C1 to C6 1 μF capacitors, 0603 package C7 to C10 10 μF capacitor, 1210 package U1 HMC7885FH18 PCB 600-00941-00 evaluation printed circuit board (PCB); circuit board material: Rogers 4350B Rev. 0 | Page 10 of 11 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION EVALUATION BOARD ASSEMBLY BILL OF MATERIALS OUTLINE DIMENSIONS ORDERING GUIDE
