Datasheet HMC1086F10 (Analog Devices) - 9
| 制造商 | Analog Devices |
| 描述 | 25 WATT Flange Mount GaN MMIC POWER AMPLIFIER, 2 - 6 GHz |
| 页数 / 页 | 12 / 9 — HMC1086F10. 25 WATT FlAnge MounT gAn MMIC. PoWeR AMPlIFIeR, 2 - 6 gHz. … |
| 文件格式/大小 | PDF / 728 Kb |
| 文件语言 | 英语 |
HMC1086F10. 25 WATT FlAnge MounT gAn MMIC. PoWeR AMPlIFIeR, 2 - 6 gHz. Pin Descriptions
该数据表的模型线
文件文字版本
HMC1086F10
v06.1017

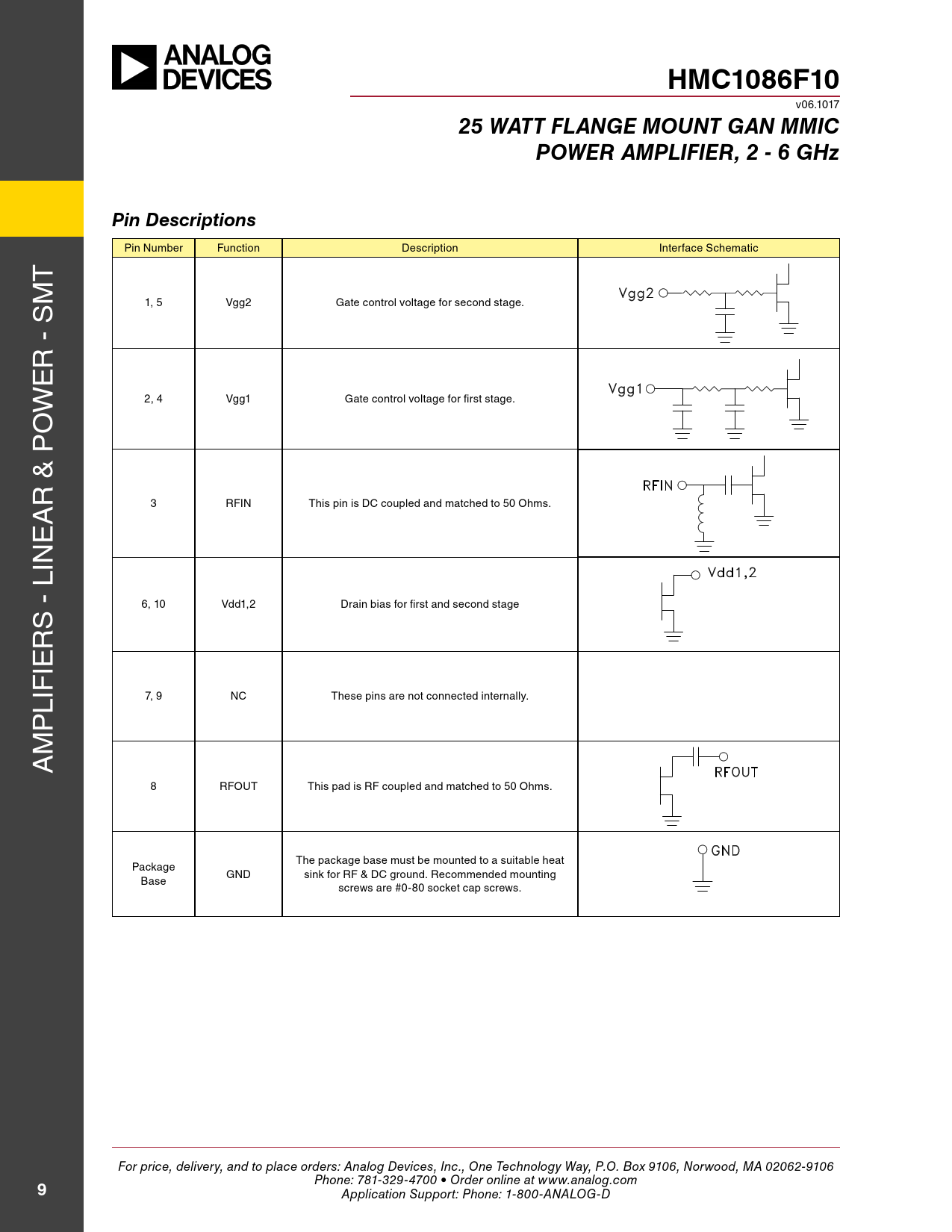

25 WATT FlAnge MounT gAn MMIC PoWeR AMPlIFIeR, 2 - 6 gHz Pin Descriptions
pin number function Description interface schematic T m s 1, 5 Vgg2 Gate control voltage for second stage. r - e w 2, 4 Vgg1 Gate control voltage for first stage. o p r & A 3 rfin This pin is DC coupled and matched to 50 ohms. e lin s - 6, 10 Vdd1,2 Drain bias for first and second stage r ie lif 7, 9 nC These pins are not connected internally. p m A 8 rfoUT This pad is rf coupled and matched to 50 ohms. The package base must be mounted to a suitable heat package GnD sink for rf & DC ground. recommended mounting Base screws are #0-80 socket cap screws. For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
9
Application Support: Phone: 1-800-ANALOG-D Document Outline Typical Applications Features Functional Diagram General Description Electrical Specifications Performance Characteristics Gain & Return Loss Gain vs. Temperature Input Return Loss vs. Temperature Output Return Loss vs. Temperature Low Frequency Gain & Return Loss Noise Figure vs. Frequency P1dB vs. Temperature Psat vs. Temperature P1dB vs. Vdd Psat vs. Vdd Output IP3 vs. Temperature @ Pout = 18 dBm Tone Power Compression @ 10 GHz Power Dissipation Second Harmonics vs. Temperature @ Pout = 18 dBm Second Harmonics vs. Vdd @ Pout = 18 dBm Second Harmonics vs. Pout Absolute Maximum Ratings Typical Supply Current vs. Vdd Outline Drawing Die Packaging Information Pad Descriptions Assembly Diagram Application Circuit
