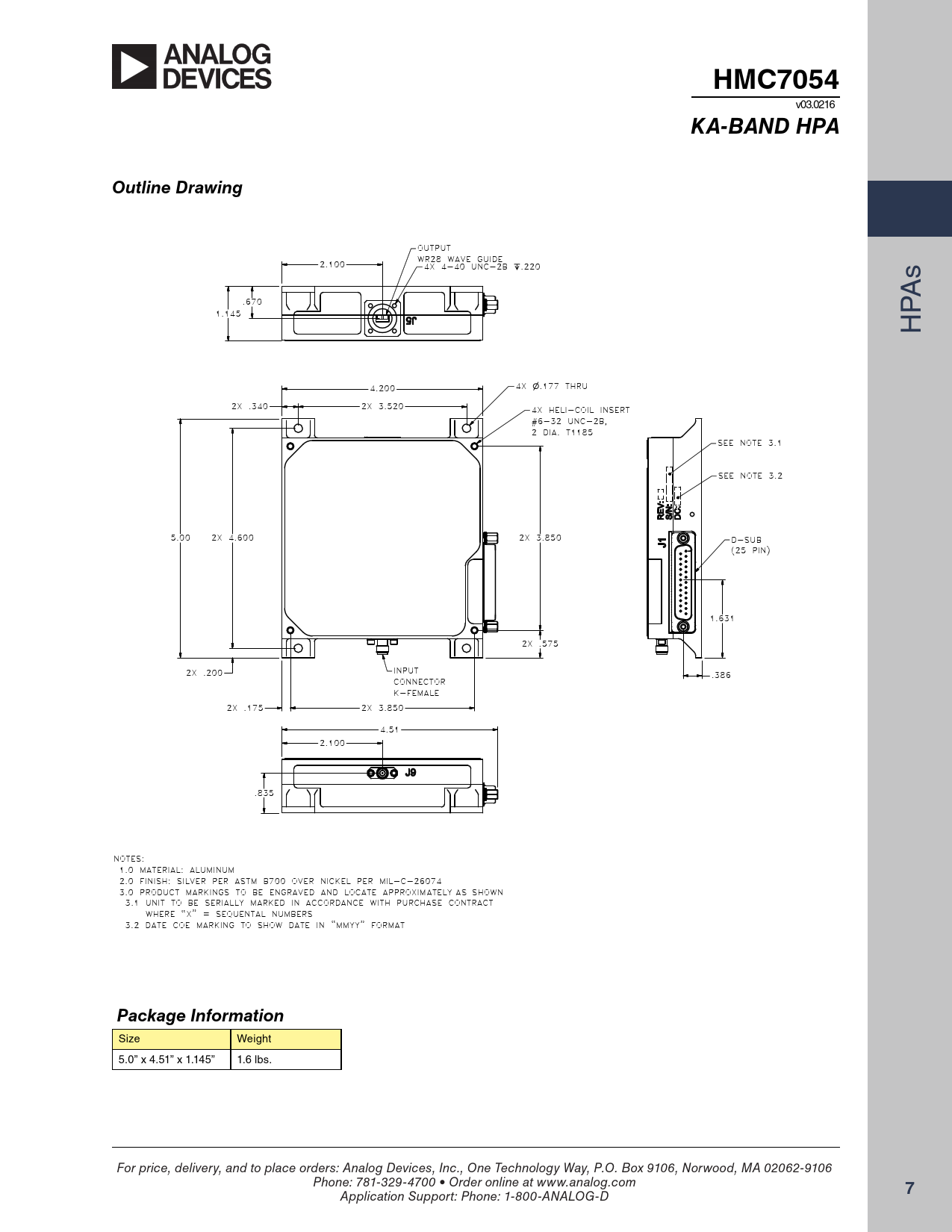

HMC7054. Ka-Band HPa. Outline drawing. Package Information
该数据表的模型线
文件文字版本
HMC7054
v03.0216
Ka-Band HPa Outline drawing
OUTPUT 2.100 WR28 WAVE GUIDE 4X 4-40 UNC-2B .220 s .670 1.145 PA H 4.200 4X .177 THRU . 2X 340 2X 3. 520 4X HELI-COIL INSERT #6-32 UNC-2B, 2 DIA. T1185 SEE NOTE 3.1 SEE NOTE 3.2 5.00 2X 4. 600 2X 3. 850 D-SUB (25 PIN) 1.631 . 2X 575 . 2X 200 INPUT .386 CONNECTOR K-FEMALE . 2X 175 2X 3. 850 4.51 2.100 .835 NOTES: 1.0 MATERIAL: ALUMINUM 2.0 FINISH: SILVER PER ASTM B700 OVER NICKEL PER MIL-C-26074 3.0 PRODUCT MARKINGS TO BE ENGRAVED AND LOCATE APPROX M I ATELY AS SHOWN 3.1 UNIT TO BE SERIALLY MARKED IN ACCORDANCE WITH PURCHASE CONTRACT WHERE " X" = SEQUENTAL NUMBERS 3.2 DATE COE MARKING TO SHOW DATE IN " MMYY" FORMAT
Package Information
Size Weight 5.0” x 4.51” x 1.145” 1.6 lbs. For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
7
Application Support: Phone: 1-800-ANALOG-D Document Outline Features Functional Block Diagram Electrical Specifications Small Signal Gain Output P1dB & PAE Saturated Output Power Linear Power (SRG) IP3 Absolute Maximum Ratings Outline Drawing Table 1. Absolute Maximum Ratings Table 2. J1 HPA Connector Pin Out Table 3. J2 BUC Connector Pin Out
