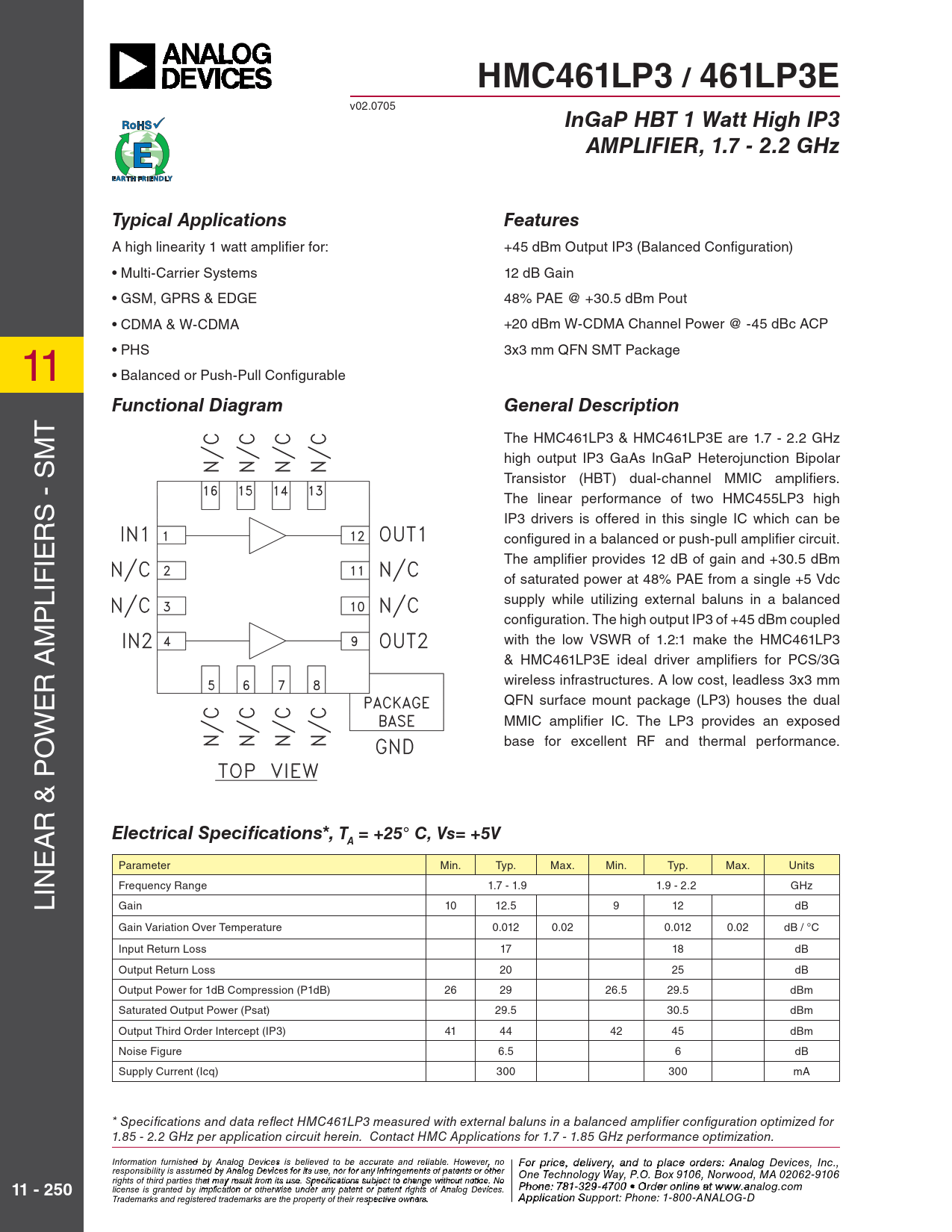

HMC461LP3 / 461LP3E
v02.0705
InGaP HBT 1 Watt High IP3 AMPLIFIER, 1.7 - 2.2 GHz Typical Applications Features
A high linearity 1 watt amplifi er for: +45 dBm Output IP3 (Balanced Confi guration) • Multi-Carrier Systems 12 dB Gain • GSM, GPRS & EDGE 48% PAE @ +30.5 dBm Pout • CDMA & W-CDMA +20 dBm W-CDMA Channel Power @ -45 dBc ACP 11 • PHS 3x3 mm QFN SMT Package • Balanced or Push-Pull Confi gurable
Functional Diagram General Description
T The HMC461LP3 & HMC461LP3E are 1.7 - 2.2 GHz high output IP3 GaAs InGaP Heterojunction Bipolar Transistor (HBT) dual-channel MMIC amplifi ers. - SM The linear performance of two HMC455LP3 high S IP3 drivers is offered in this single IC which can be R confi gured in a balanced or push-pull amplifi er circuit. IE The amplifi er provides 12 dB of gain and +30.5 dBm IF of saturated power at 48% PAE from a single +5 Vdc L supply while utilizing external baluns in a balanced P confi guration. The high output IP3 of +45 dBm coupled M with the low VSWR of 1.2:1 make the HMC461LP3 & HMC461LP3E ideal driver amplifi ers for PCS/3G R A wireless infrastructures. A low cost, leadless 3x3 mm E QFN surface mount package (LP3) houses the dual W MMIC amplifi er IC. The LP3 provides an exposed O base for excellent RF and thermal performance. & P R A
Electrical Specifi cations*, T = +25° C, Vs= +5V A
E Parameter Min. Typ. Max. Min. Typ. Max. Units IN Frequency Range 1.7 - 1.9 1.9 - 2.2 GHz L Gain 10 12.5 9 12 dB Gain Variation Over Temperature 0.012 0.02 0.012 0.02 dB / °C Input Return Loss 17 18 dB Output Return Loss 20 25 dB Output Power for 1dB Compression (P1dB) 26 29 26.5 29.5 dBm Saturated Output Power (Psat) 29.5 30.5 dBm Output Third Order Intercept (IP3) 41 44 42 45 dBm Noise Figure 6.5 6 dB Supply Current (Icq) 300 300 mA * Specifi cations and data refl ect HMC461LP3 measured with external baluns in a balanced amplifi er confi guration optimized for 1.85 - 2.2 GHz per application circuit herein. Contact HMC Applications for 1.7 - 1.85 GHz performance optimization. Information furnish F e o d r pri by An ce, de alog Devic leis vie s rby eli, a eve nd to pla d to be accur ce o ate an r d der relia s ble , pl . Ho ease co wever, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other ntact Hittite Microwave Corporation: One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 20 Alpha Road, Chelmsford, MA 01824 Phone rights of third parties that may result from its use. Specifications subject to change without notice. No : 978 Phon -e25 : 7 0 81 - - 3 3 3 29 4 - 3 F 470 ax 0 • O : 978 rder o - nl 25 in 0 e a - t 33 ww 73
