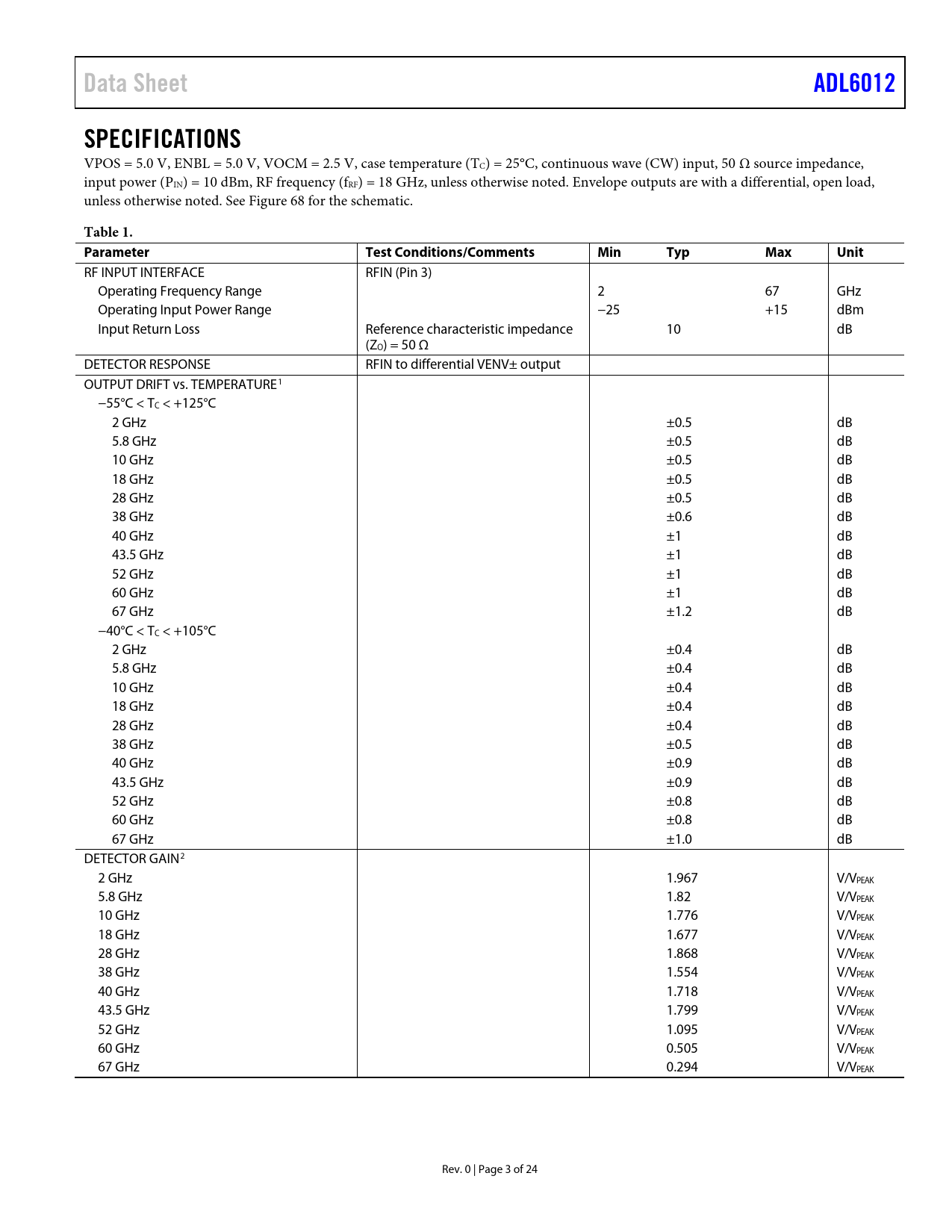

Data Sheet ADL6012 SPECIFICATIONS
VPOS = 5.0 V, ENBL = 5.0 V, VOCM = 2.5 V, case temperature (TC) = 25°C, continuous wave (CW) input, 50 Ω source impedance, input power (PIN) = 10 dBm, RF frequency (fRF) = 18 GHz, unless otherwise noted. Envelope outputs are with a differential, open load, unless otherwise noted. See Figure 68 for the schematic.
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
RF INPUT INTERFACE RFIN (Pin 3) Operating Frequency Range 2 67 GHz Operating Input Power Range −25 +15 dBm Input Return Loss Reference characteristic impedance 10 dB (ZO) = 50 Ω DETECTOR RESPONSE RFIN to differential VENV± output OUTPUT DRIFT vs. TEMPERATURE1 −55°C < TC < +125°C 2 GHz ±0.5 dB 5.8 GHz ±0.5 dB 10 GHz ±0.5 dB 18 GHz ±0.5 dB 28 GHz ±0.5 dB 38 GHz ±0.6 dB 40 GHz ±1 dB 43.5 GHz ±1 dB 52 GHz ±1 dB 60 GHz ±1 dB 67 GHz ±1.2 dB −40°C < TC < +105°C 2 GHz ±0.4 dB 5.8 GHz ±0.4 dB 10 GHz ±0.4 dB 18 GHz ±0.4 dB 28 GHz ±0.4 dB 38 GHz ±0.5 dB 40 GHz ±0.9 dB 43.5 GHz ±0.9 dB 52 GHz ±0.8 dB 60 GHz ±0.8 dB 67 GHz ±1.0 dB DETECTOR GAIN2 2 GHz 1.967 V/VPEAK 5.8 GHz 1.82 V/VPEAK 10 GHz 1.776 V/VPEAK 18 GHz 1.677 V/VPEAK 28 GHz 1.868 V/VPEAK 38 GHz 1.554 V/VPEAK 40 GHz 1.718 V/VPEAK 43.5 GHz 1.799 V/VPEAK 52 GHz 1.095 V/VPEAK 60 GHz 0.505 V/VPEAK 67 GHz 0.294 V/VPEAK Rev. 0 | Page 3 of 24 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS MEASUREMENT SETUPS THEORY OF OPERATION BASIC CONNECTIONS RF INPUT ENVELOPE OUTPUT INTERFACE COMMON-MODE VOLTAGE INTERFACE ENABLE INTERFACE DECOUPLING INTERFACE PCB LAYOUT RECOMMENDATIONS SYSTEM CALIBRATION AND MEASUREMENT ERROR APPLICATIONS INFORMATION EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
