Datasheet ADL6010S (Analog Devices) - 4
| 制造商 | Analog Devices |
| 描述 | 0.5 GHz to 43.5 GHz Envelope Detector |
| 页数 / 页 | 14 / 4 — Figure. 3. –. Terminal. Connections. 1/. This. COMM. is. the. ground. … |
| 修订版 | B |
| 文件格式/大小 | PDF / 789 Kb |
| 文件语言 | 英语 |

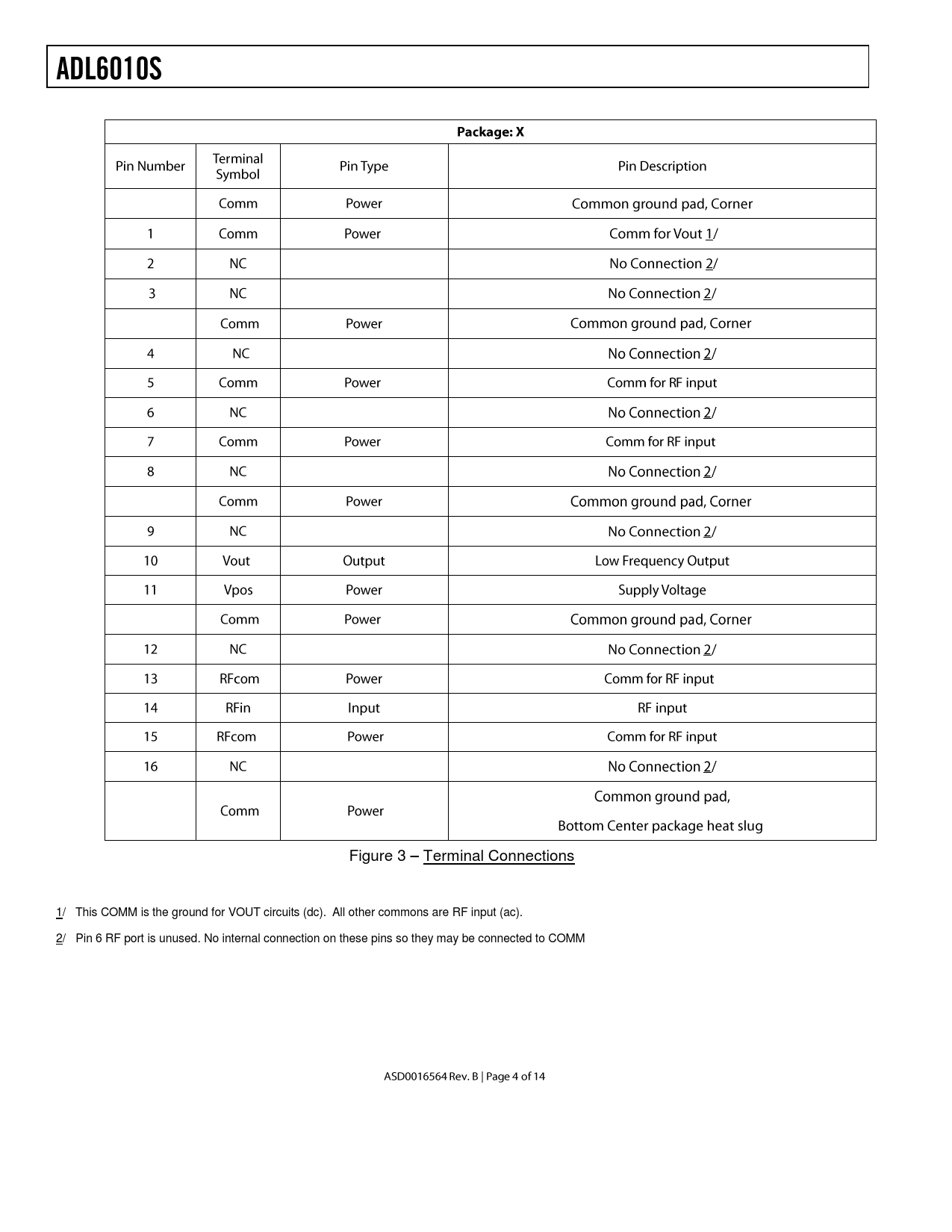

Figure. 3. –. Terminal. Connections. 1/. This. COMM. is. the. ground. for. VOUT. circuits. (dc). All. other. commons. are. RF. input. (ac). 2/. Pin. 6. RF. port. is. unused. No
该数据表的模型线
文件文字版本
Figure 3 – Terminal Connections 1/ This COMM is the ground for VOUT circuits (dc). All other commons are RF input (ac). 2/ Pin 6 RF port is unused. No internal connection on these pins so they may be connected to COMM
