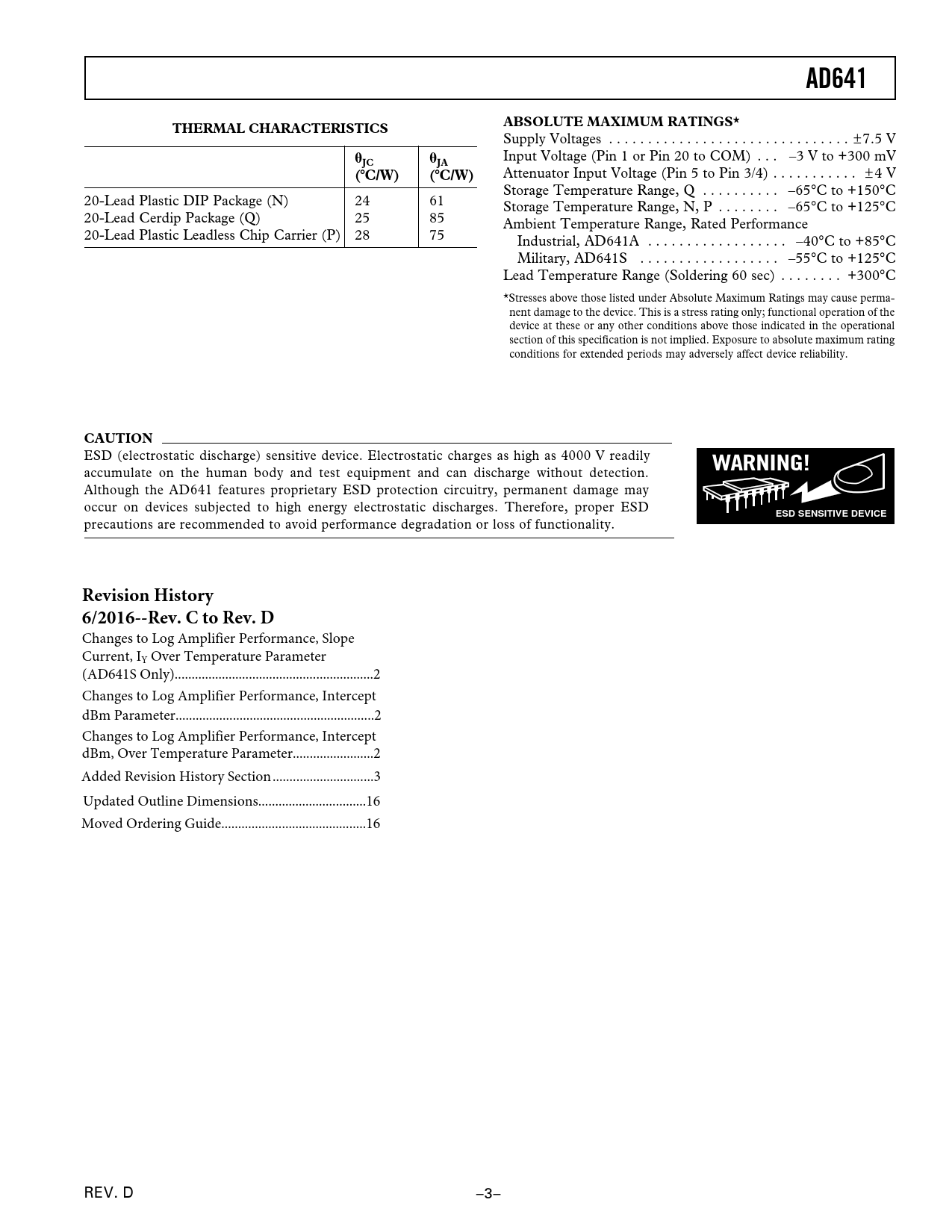

AD641. ABSOLUTE MAXIMUM RATINGS*. THERMAL CHARACTERISTICS. C/W). CAUTION. WARNING!. ESD SENSITIVE DEVICE. Revision History
该数据表的模型线
文件文字版本
AD641 ABSOLUTE MAXIMUM RATINGS* THERMAL CHARACTERISTICS
Supply Voltages . ± 7.5 V Input Voltage (Pin 1 or Pin 20 to COM) . –3 V to +300 mV
JC JA (
ⴗ
C/W) (
ⴗ
C/W)
Attenuator Input Voltage (Pin 5 to Pin 3/4) . ± 4 V Storage Temperature Range, Q . –65°C to +150°C 20-Lead Plastic DIP Package (N) 24 61 Storage Temperature Range, N, P . –65°C to +125°C 20-Lead Cerdip Package (Q) 25 85 Ambient Temperature Range, Rated Performance 20-Lead Plastic Leadless Chip Carrier (P) 28 75 Industrial, AD641A . –40°C to +85°C Military, AD641S . –55°C to +125°C Lead Temperature Range (Soldering 60 sec) . +300°C *Stresses above those listed under Absolute Maximum Ratings may cause perma- nent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may adversely affect device reliability.
