| 制造商 | Analog Devices |
| 描述 | Bidirectional, Zero-Drift, Current Sense Amplifier |
| 页数 / 页 | 18 / 5 — Data Sheet. AD8418A. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. –IN 1. … |
| 修订版 | E |
| 文件格式/大小 | PDF / 463 Kb |
| 文件语言 | 英语 |

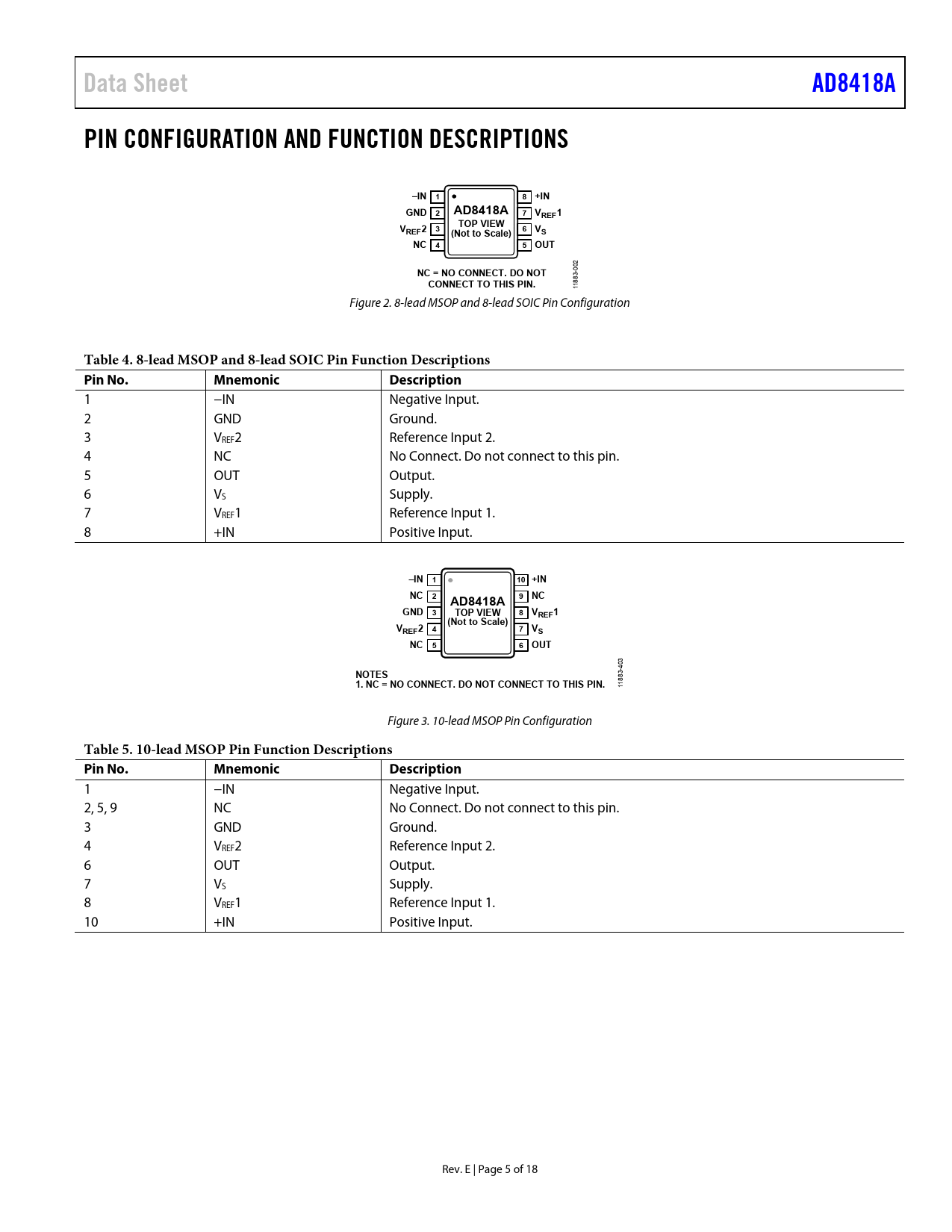

Data Sheet. AD8418A. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. –IN 1. 8 +IN. GND 2. AD8418A 7 VREF1. TOP VIEW. REF2. 6 VS
该数据表的模型线
文件文字版本
Data Sheet AD8418A PIN CONFIGURATION AND FUNCTION DESCRIPTIONS –IN 1 8 +IN GND 2 AD8418A 7 VREF1 V TOP VIEW REF2 3 6 VS (Not to Scale) NC 4 5 OUT
2
NC = NO CONNECT. DO NOT
00 3-
CONNECT TO THIS PIN.
88 11 Figure 2. 8-lead MSOP and 8-lead SOIC Pin Configuration
Table 4. 8-lead MSOP and 8-lead SOIC Pin Function Descriptions Pin No. Mnemonic Description
1 −IN Negative Input. 2 GND Ground. 3 VREF2 Reference Input 2. 4 NC No Connect. Do not connect to this pin. 5 OUT Output. 6 VS Supply. 7 VREF1 Reference Input 1. 8 +IN Positive Input.
