Enhanced Product. AD8479-EP. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. REF(–). –IN. AD8479-EP 7 +VS. +IN. TOP VIEW. OUTPUT
该数据表的模型线
文件文字版本

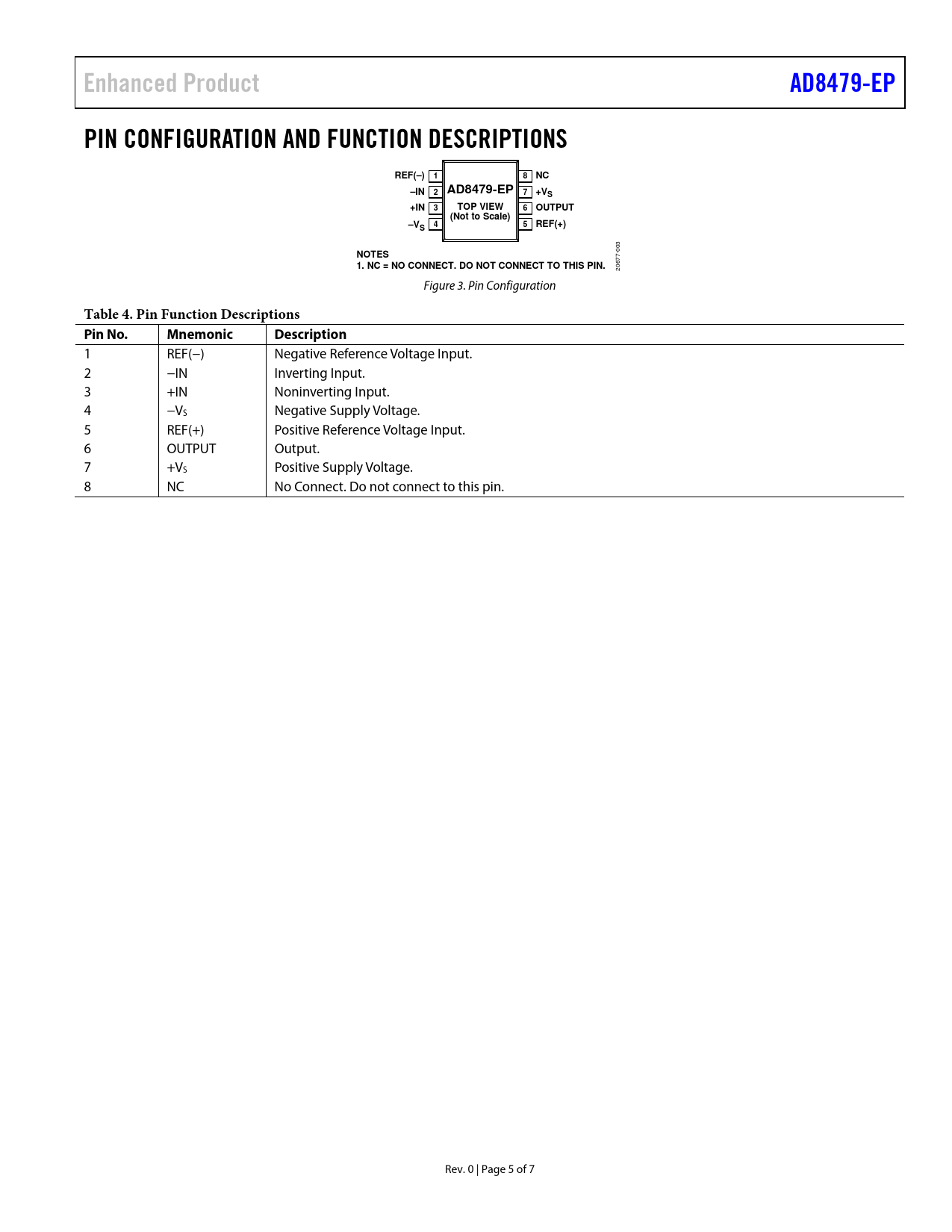

Enhanced Product AD8479-EP PIN CONFIGURATION AND FUNCTION DESCRIPTIONS REF(–) 1 8 NC –IN 2 AD8479-EP 7 +VS +IN 3 TOP VIEW 6 OUTPUT (Not to Scale) –V 4 5 REF(+) S
003
NOTES 1. NC = NO CONNECT. DO NOT CONNECT TO THIS PIN.
20677- Figure 3. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1 REF(−) Negative Reference Voltage Input. 2 −IN Inverting Input. 3 +IN Noninverting Input. 4 −VS Negative Supply Voltage. 5 REF(+) Positive Reference Voltage Input. 6 OUTPUT Output. 7 +VS Positive Supply Voltage. 8 NC No Connect. Do not connect to this pin. Rev. 0 | Page 5 of 7 Document Outline Features Enhanced Product Features Applications Functional Block Diagram General Description Revision History Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Outline Dimensions Ordering Guide
