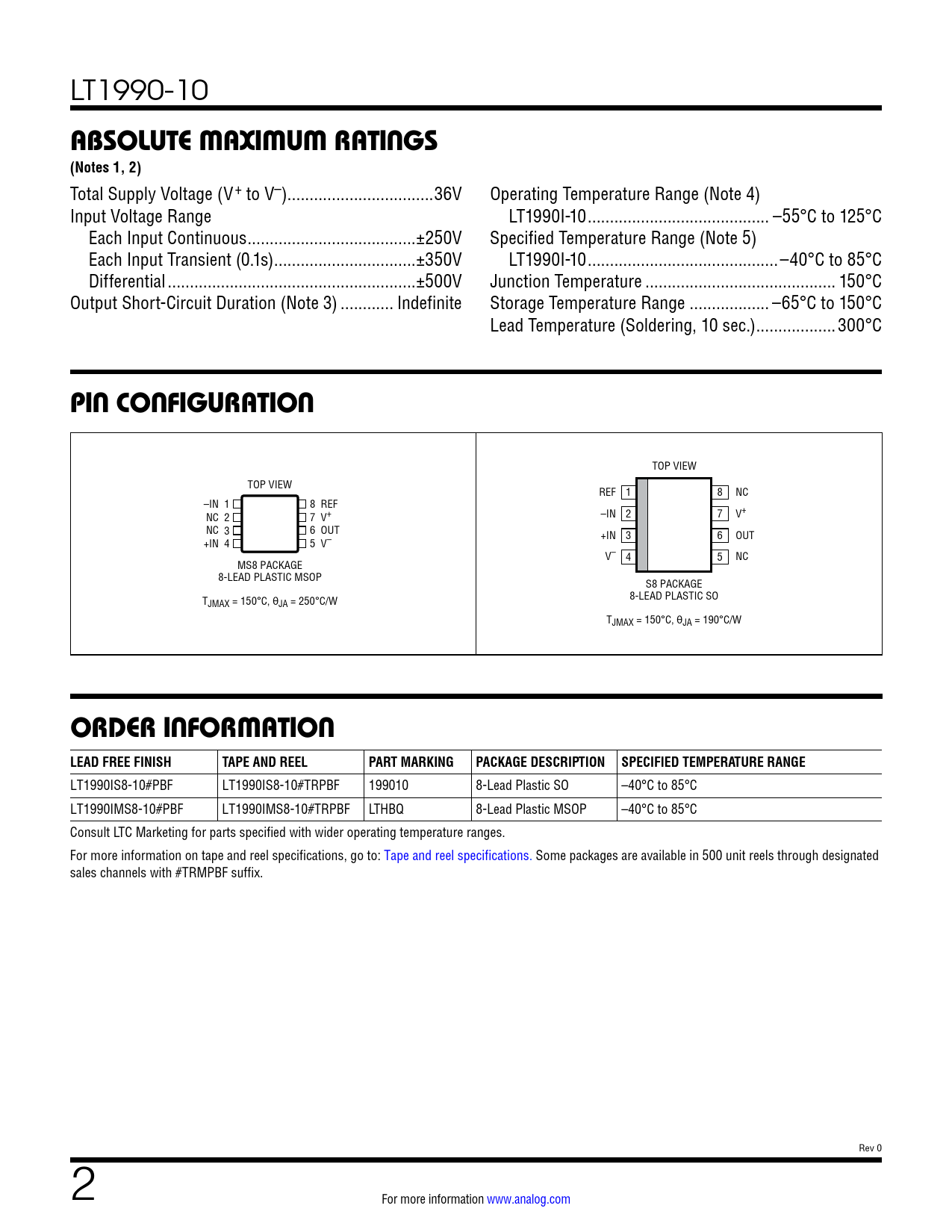

LT1990-10
ABSOLUTE MAXIMUM RATINGS (Notes 1, 2)
Total Supply Voltage (V+ to V–)...36V Operating Temperature Range (Note 4) Input Voltage Range LT1990I-10 ... –55°C to 125°C Each Input Continuous ..±250V Specified Temperature Range (Note 5) Each Input Transient (0.1s) ..±350V LT1990I-10 ...–40°C to 85°C Differential ..±500V Junction Temperature ... 150°C Output Short-Circuit Duration (Note 3) .. Indefinite Storage Temperature Range .. –65°C to 150°C Lead Temperature (Soldering, 10 sec.) ..300°C
PIN CONFIGURATION
TOP VIEW TOP VIEW REF 1 8 NC –IN 1 8 REF NC 2 7 V+ –IN 2 7 V+ NC 3 6 OUT +IN 3 6 OUT +IN 4 5 V– V– 4 5 NC MS8 PACKAGE 8-LEAD PLASTIC MSOP S8 PACKAGE T 8-LEAD PLASTIC SO JMAX = 150°C, θJA = 250°C/W TJMAX = 150°C, θJA = 190°C/W
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT1990IS8-10#PBF LT1990IS8-10#TRPBF 199010 8-Lead Plastic SO –40°C to 85°C LT1990IMS8-10#PBF LT1990IMS8-10#TRPBF LTHBQ 8-Lead Plastic MSOP –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. For more information on tape and reel specifications, go to: Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. Rev 0 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information 3V/5V Electrical Characteristics Electrical Characteristics ±15V Electrical Characteristics Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Package Description Typical Applications Related Parts
