| 描述 | Simple Packaged Crystal Oscillator (SPXO) with an LVDS output in a hermetically sealed ceramic package with a metal lid |
| 页数 / 页 | 5 / 2 — Crystal Clock Oscillator Specification. IQXO-406-25. ISSUE 2; March 2021. … |
| 文件格式/大小 | PDF / 1.2 Mb |
| 文件语言 | 英语 |
Crystal Clock Oscillator Specification. IQXO-406-25. ISSUE 2; March 2021. Description. Frequency Parameters
该数据表的模型线
文件文字版本

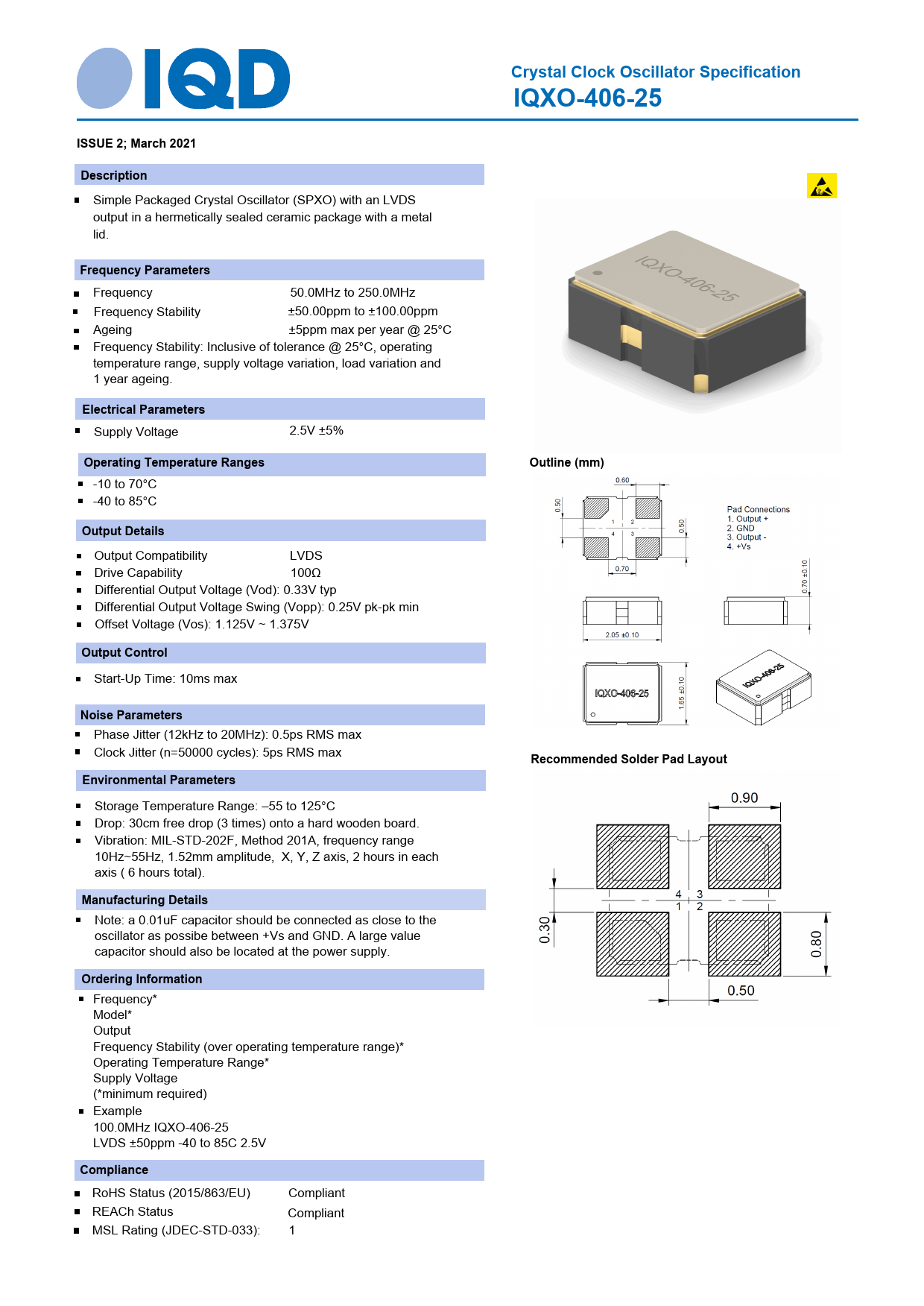

Crystal Clock Oscillator Specification IQXO-406-25 ISSUE 2; March 2021 Description
Simple Packaged Crystal Oscillator (SPXO) with an LVDS output in a hermetically sealed ceramic package with a metal lid.
Frequency Parameters
Frequency 50.0MHz to 250.0MHz Frequency Stability ±50.00ppm to ±100.00ppm Ageing ±5ppm max per year @ 25°C Frequency Stability: Inclusive of tolerance @ 25°C, operating temperature range, supply voltage variation, load variation and 1 year ageing.
Electrical Parameters
Supply Voltage 2.5V ±5%
Operating Temperature Ranges Outline (mm)
-10 to 70°C -40 to 85°C
Output Details
Output Compatibility LVDS Drive Capability 100Ω Differential Output Voltage (Vod): 0.33V typ Differential Output Voltage Swing (Vopp): 0.25V pk-pk min Offset Voltage (Vos): 1.125V ~ 1.375V
Output Control
Start-Up Time: 10ms max
Noise Parameters
Phase Jitter (12kHz to 20MHz): 0.5ps RMS max Clock Jitter (n=50000 cycles): 5ps RMS max
Recommended Solder Pad Layout Environmental Parameters
Storage Temperature Range: –55 to 125°C Drop: 30cm free drop (3 times) onto a hard wooden board. Vibration: MIL-STD-202F, Method 201A, frequency range 10Hz~55Hz, 1.52mm amplitude, X, Y, Z axis, 2 hours in each axis ( 6 hours total).
Manufacturing Details
Note: a 0.01uF capacitor should be connected as close to the oscillator as possibe between +Vs and GND. A large value capacitor should also be located at the power supply.
Ordering Information
Frequency* Model* Output Frequency Stability (over operating temperature range)* Operating Temperature Range* Supply Voltage (*minimum required) Example 100.0MHz IQXO-406-25 LVDS ±50ppm -40 to 85C 2.5V
Compliance
RoHS Status (2015/863/EU) Compliant REACh Status Compliant MSL Rating (JDEC-STD-033): 1
Simple Packaged Crystal Oscillator (SPXO) with an LVDS output in a hermetically sealed ceramic package with a metal lid.
Frequency Parameters
Frequency 50.0MHz to 250.0MHz Frequency Stability ±50.00ppm to ±100.00ppm Ageing ±5ppm max per year @ 25°C Frequency Stability: Inclusive of tolerance @ 25°C, operating temperature range, supply voltage variation, load variation and 1 year ageing.
Electrical Parameters
Supply Voltage 2.5V ±5%
Operating Temperature Ranges Outline (mm)
-10 to 70°C -40 to 85°C
Output Details
Output Compatibility LVDS Drive Capability 100Ω Differential Output Voltage (Vod): 0.33V typ Differential Output Voltage Swing (Vopp): 0.25V pk-pk min Offset Voltage (Vos): 1.125V ~ 1.375V
Output Control
Start-Up Time: 10ms max
Noise Parameters
Phase Jitter (12kHz to 20MHz): 0.5ps RMS max Clock Jitter (n=50000 cycles): 5ps RMS max
Recommended Solder Pad Layout Environmental Parameters
Storage Temperature Range: –55 to 125°C Drop: 30cm free drop (3 times) onto a hard wooden board. Vibration: MIL-STD-202F, Method 201A, frequency range 10Hz~55Hz, 1.52mm amplitude, X, Y, Z axis, 2 hours in each axis ( 6 hours total).
Manufacturing Details
Note: a 0.01uF capacitor should be connected as close to the oscillator as possibe between +Vs and GND. A large value capacitor should also be located at the power supply.
Ordering Information
Frequency* Model* Output Frequency Stability (over operating temperature range)* Operating Temperature Range* Supply Voltage (*minimum required) Example 100.0MHz IQXO-406-25 LVDS ±50ppm -40 to 85C 2.5V
Compliance
RoHS Status (2015/863/EU) Compliant REACh Status Compliant MSL Rating (JDEC-STD-033): 1
