Datasheet IQXO-406-25, IQXO-406-33 (IQD) - 3
| 制造商 | IQD |
| 描述 | Simple Packaged Crystal Oscillator (SPXO) with an LVDS output in a hermetically sealed ceramic package with a metal lid |
| 页数 / 页 | 5 / 3 — Crystal Clock Oscillator Specification. IQXO-406-25. ISSUE 2; March 2021. … |
| 文件格式/大小 | PDF / 1.2 Mb |
| 文件语言 | 英语 |
Crystal Clock Oscillator Specification. IQXO-406-25. ISSUE 2; March 2021. Packaging Details
该数据表的模型线
文件文字版本

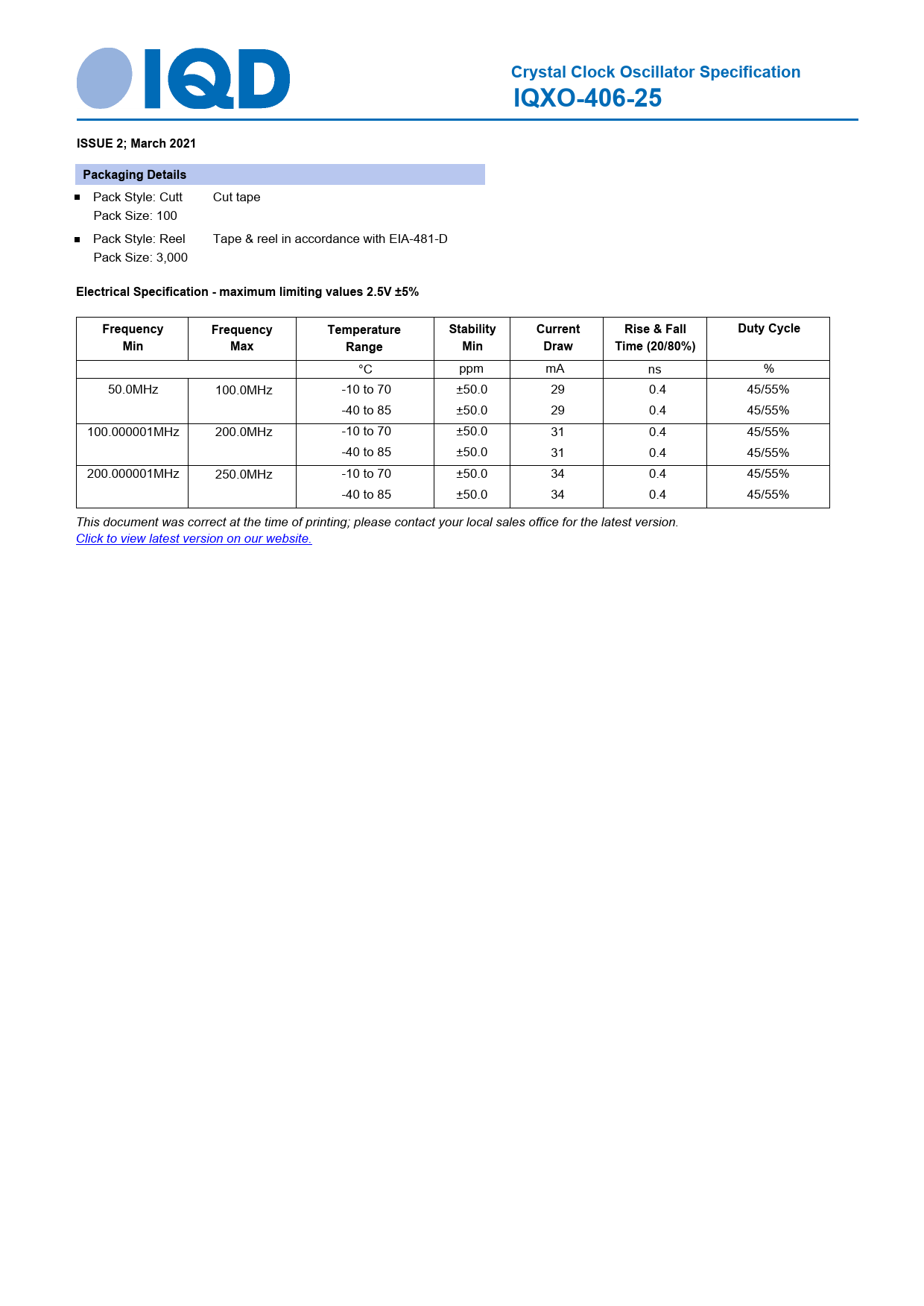

Crystal Clock Oscillator Specification IQXO-406-25 ISSUE 2; March 2021 Packaging Details
Pack Style: Cutt Cut tape Pack Size: 100 Pack Style: Reel Tape & reel in accordance with EIA-481-D Pack Size: 3,000
Electrical Specification - maximum limiting values 2.5V ±5% Frequency Frequency Temperature Stability Current Rise & Fall Duty Cycle Min Max Range Min Draw Time (20/80%)
°C ppm mA ns % 50.0MHz 100.0MHz -10 to 70 ±50.0 29 0.4 45/55% -40 to 85 ±50.0 29 0.4 45/55% 100.000001MHz 200.0MHz -10 to 70 ±50.0 31 0.4 45/55% -40 to 85 ±50.0 31 0.4 45/55% 200.000001MHz 250.0MHz -10 to 70 ±50.0 34 0.4 45/55% -40 to 85 ±50.0 34 0.4 45/55% This document was correct at the time of printing; please contact your local sales office for the latest version. Click to view latest version on our website.
Pack Style: Cutt Cut tape Pack Size: 100 Pack Style: Reel Tape & reel in accordance with EIA-481-D Pack Size: 3,000
Electrical Specification - maximum limiting values 2.5V ±5% Frequency Frequency Temperature Stability Current Rise & Fall Duty Cycle Min Max Range Min Draw Time (20/80%)
°C ppm mA ns % 50.0MHz 100.0MHz -10 to 70 ±50.0 29 0.4 45/55% -40 to 85 ±50.0 29 0.4 45/55% 100.000001MHz 200.0MHz -10 to 70 ±50.0 31 0.4 45/55% -40 to 85 ±50.0 31 0.4 45/55% 200.000001MHz 250.0MHz -10 to 70 ±50.0 34 0.4 45/55% -40 to 85 ±50.0 34 0.4 45/55% This document was correct at the time of printing; please contact your local sales office for the latest version. Click to view latest version on our website.
