Datasheet TCR5RG (Toshiba) - 3
| 制造商 | Toshiba |
| 描述 | Ultra high Ripple rejection ratio, 500 mA CMOS Low Dropout Regulator in ultra small package |
| 页数 / 页 | 10 / 3 — TCR5RG series. 7. List of Products Number, Output voltage and Marking. … |
| 文件格式/大小 | PDF / 483 Kb |
| 文件语言 | 英语 |
TCR5RG series. 7. List of Products Number, Output voltage and Marking. Top Marking. (top view)
该数据表的模型线
TCR5RG
文件文字版本

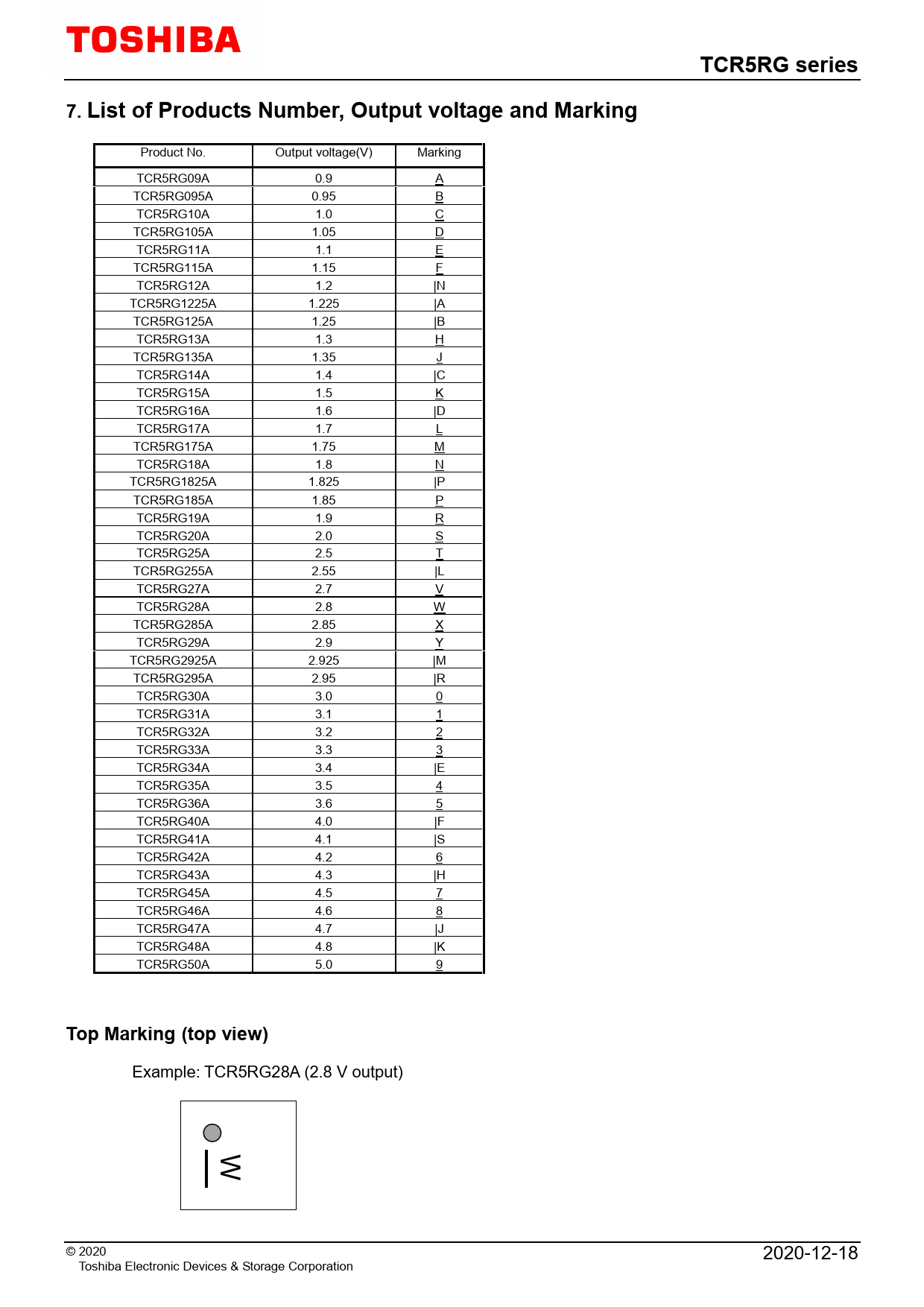

TCR5RG series 7. List of Products Number, Output voltage and Marking
Product No. Output voltage(V) Marking TCR5RG09A 0.9 A TCR5RG095A 0.95 B TCR5RG10A 1.0 C TCR5RG105A 1.05 D TCR5RG11A 1.1 E TCR5RG115A 1.15 F TCR5RG12A 1.2 |N TCR5RG1225A 1.225 |A TCR5RG125A 1.25 |B TCR5RG13A 1.3 H TCR5RG135A 1.35 J TCR5RG14A 1.4 |C TCR5RG15A 1.5 K TCR5RG16A 1.6 |D TCR5RG17A 1.7 L TCR5RG175A 1.75 M TCR5RG18A 1.8 N TCR5RG1825A 1.825 |P TCR5RG185A 1.85 P TCR5RG19A 1.9 R TCR5RG20A 2.0 S TCR5RG25A 2.5 T TCR5RG255A 2.55 |L TCR5RG27A 2.7 V TCR5RG28A 2.8 W TCR5RG285A 2.85 X TCR5RG29A 2.9 Y TCR5RG2925A 2.925 |M TCR5RG295A 2.95 |R TCR5RG30A 3.0 0 TCR5RG31A 3.1 1 TCR5RG32A 3.2 2 TCR5RG33A 3.3 3 TCR5RG34A 3.4 |E TCR5RG35A 3.5 4 TCR5RG36A 3.6 5 TCR5RG40A 4.0 |F TCR5RG41A 4.1 |S TCR5RG42A 4.2 6 TCR5RG43A 4.3 |H TCR5RG45A 4.5 7 TCR5RG46A 4.6 8 TCR5RG47A 4.7 |J TCR5RG48A 4.8 |K TCR5RG50A 5.0 9
Top Marking (top view)
Example: TCR5RG28A (2.8 V output) W © 2020 2020-12-18 Toshiba Electronic Devices & Storage Corporation
Product No. Output voltage(V) Marking TCR5RG09A 0.9 A TCR5RG095A 0.95 B TCR5RG10A 1.0 C TCR5RG105A 1.05 D TCR5RG11A 1.1 E TCR5RG115A 1.15 F TCR5RG12A 1.2 |N TCR5RG1225A 1.225 |A TCR5RG125A 1.25 |B TCR5RG13A 1.3 H TCR5RG135A 1.35 J TCR5RG14A 1.4 |C TCR5RG15A 1.5 K TCR5RG16A 1.6 |D TCR5RG17A 1.7 L TCR5RG175A 1.75 M TCR5RG18A 1.8 N TCR5RG1825A 1.825 |P TCR5RG185A 1.85 P TCR5RG19A 1.9 R TCR5RG20A 2.0 S TCR5RG25A 2.5 T TCR5RG255A 2.55 |L TCR5RG27A 2.7 V TCR5RG28A 2.8 W TCR5RG285A 2.85 X TCR5RG29A 2.9 Y TCR5RG2925A 2.925 |M TCR5RG295A 2.95 |R TCR5RG30A 3.0 0 TCR5RG31A 3.1 1 TCR5RG32A 3.2 2 TCR5RG33A 3.3 3 TCR5RG34A 3.4 |E TCR5RG35A 3.5 4 TCR5RG36A 3.6 5 TCR5RG40A 4.0 |F TCR5RG41A 4.1 |S TCR5RG42A 4.2 6 TCR5RG43A 4.3 |H TCR5RG45A 4.5 7 TCR5RG46A 4.6 8 TCR5RG47A 4.7 |J TCR5RG48A 4.8 |K TCR5RG50A 5.0 9
Top Marking (top view)
Example: TCR5RG28A (2.8 V output) W © 2020 2020-12-18 Toshiba Electronic Devices & Storage Corporation
