Datasheet STD30NF06LAG (STMicroelectronics)
| 制造商 | STMicroelectronics |
| 描述 | Automotive-grade N-channel 60 V, 0.022 Ω typ., 35 A STripFET II Power MOSFET in a DPAK package |
| 页数 / 页 | 15 / 1 — STD30NF06LAG. Features. Order code. VDS. RDS(on) max. Applications. … |
| 文件格式/大小 | PDF / 734 Kb |
| 文件语言 | 英语 |

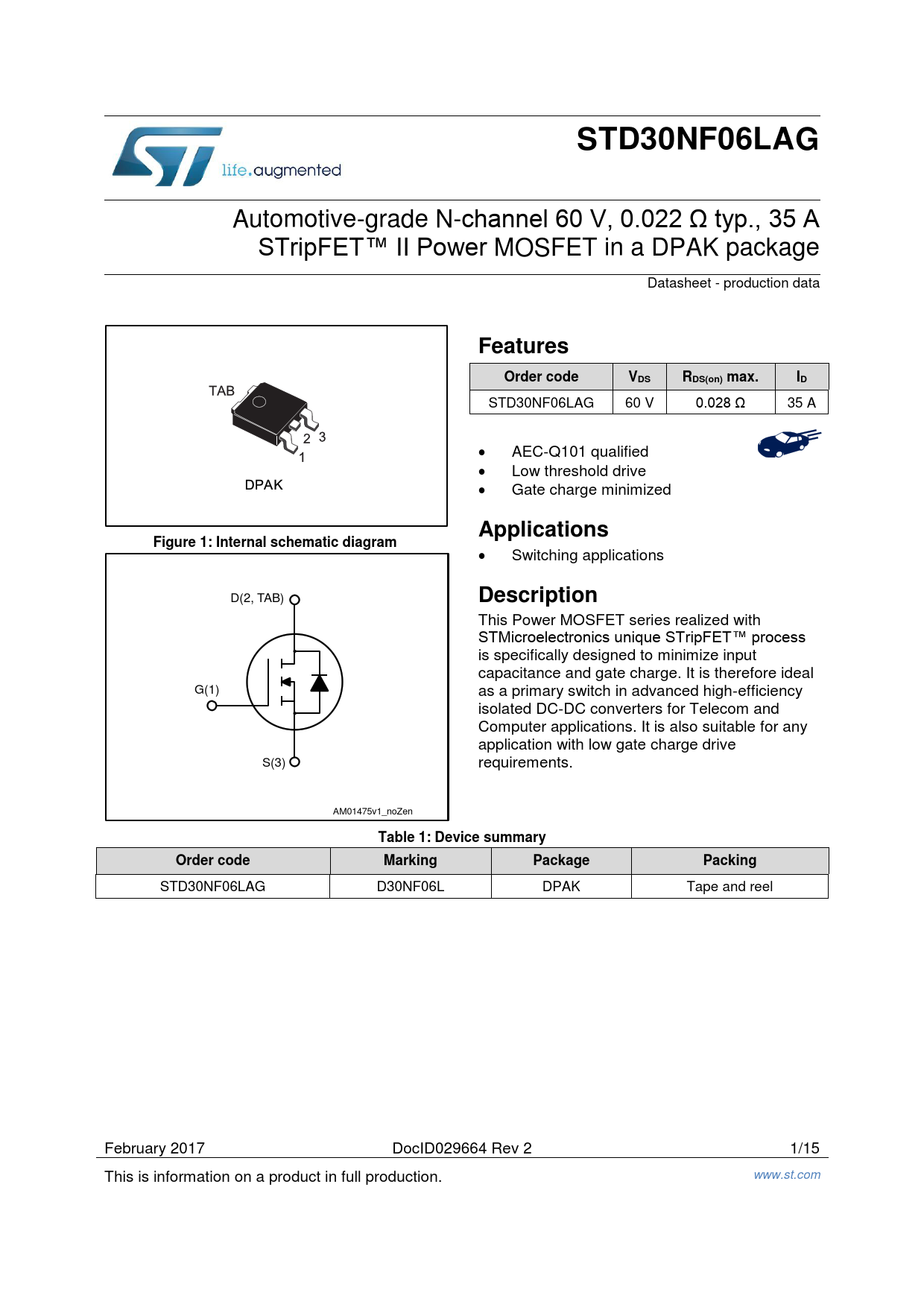

STD30NF06LAG. Features. Order code. VDS. RDS(on) max. Applications. Figure 1: Internal schematic diagram. Description
该数据表的模型线
文件文字版本
STD30NF06LAG
Automotive-grade N-channel 60 V, 0.022 Ω typ., 35 A STripFET™ II Power MOSFET in a DPAK package Datasheet - production data
Features Order code VDS RDS(on) max. ID
STD30NF06LAG 60 V 0.028 Ω 35 A AEC-Q101 qualified Low threshold drive Gate charge minimized
Applications Figure 1: Internal schematic diagram
Switching applications D(2, TAB)
Description
This Power MOSFET series realized with STMicroelectronics unique STripFET™ process is specifically designed to minimize input capacitance and gate charge. It is therefore ideal G(1) as a primary switch in advanced high-efficiency isolated DC-DC converters for Telecom and Computer applications. It is also suitable for any application with low gate charge drive S(3) requirements. AM01475v1_noZen
Table 1: Device summary Order code Marking Package Packing
STD30NF06LAG D30NF06L DPAK Tape and reel February 2017 DocID029664 Rev 2 1/15 This is information on a product in full production. www.st.com
