TSV7721, TSV7722, TSV7723. Absolute maximum ratings and operating conditions. Table 1. Absolute maximum ratings. Symbol
该数据表的模型线
文件文字版本
link to page 3 link to page 3 link to page 3 link to page 3 link to page 3 link to page 3 link to page 3

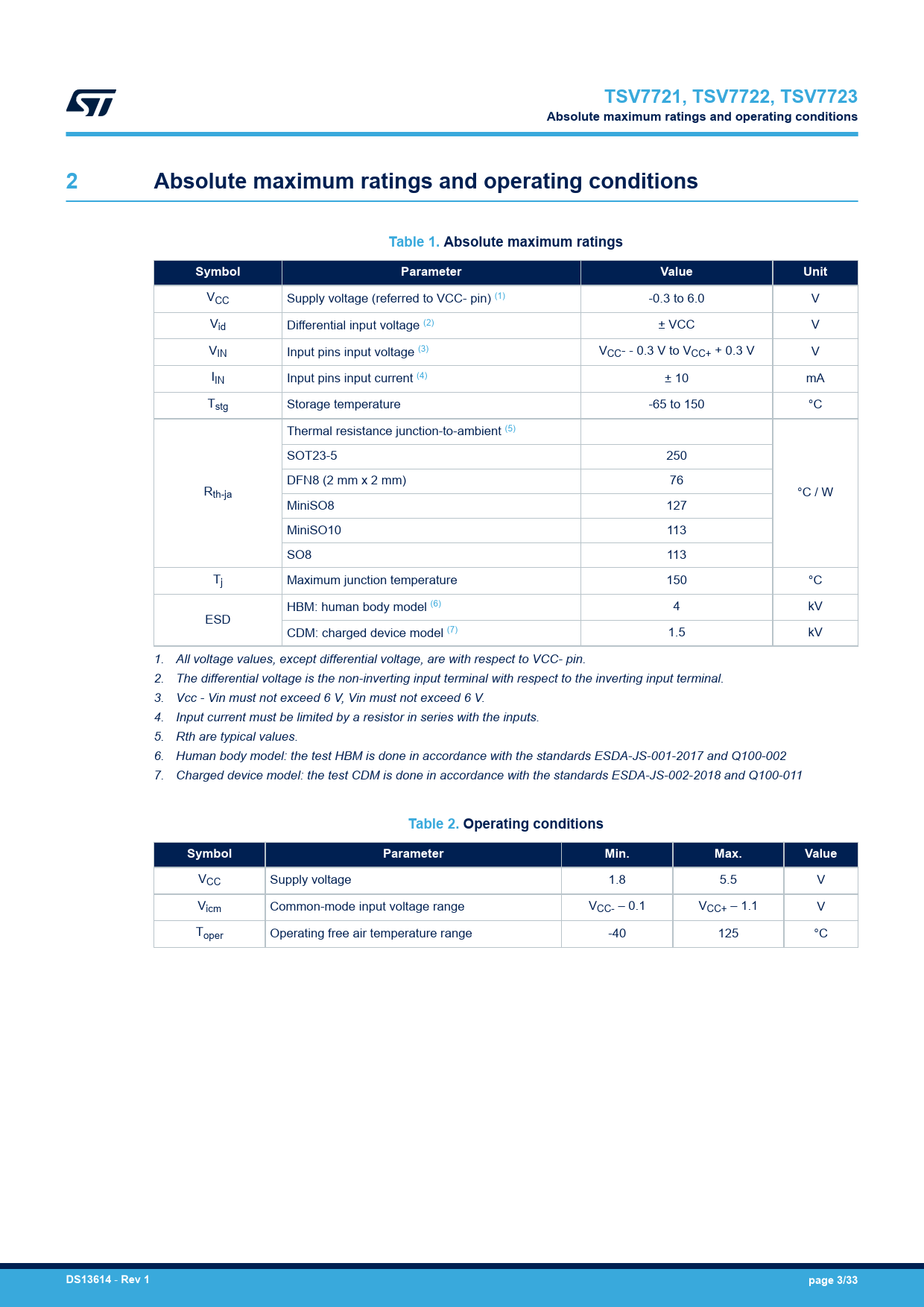

TSV7721, TSV7722, TSV7723 Absolute maximum ratings and operating conditions 2 Absolute maximum ratings and operating conditions Table 1. Absolute maximum ratings Symbol Parameter Value Unit
VCC Supply voltage (referred to VCC- pin) (1) -0.3 to 6.0 V Vid Differential input voltage (2) ± VCC V VIN Input pins input voltage (3) VCC- - 0.3 V to VCC+ + 0.3 V V IIN Input pins input current (4) ± 10 mA Tstg Storage temperature -65 to 150 °C Thermal resistance junction-to-ambient (5) SOT23-5 250 DFN8 (2 mm x 2 mm) 76 Rth-ja °C / W MiniSO8 127 MiniSO10 113 SO8 113 Tj Maximum junction temperature 150 °C HBM: human body model (6) 4 kV ESD CDM: charged device model (7) 1.5 kV 1. All voltage values, except differential voltage, are with respect to VCC- pin. 2. The differential voltage is the non-inverting input terminal with respect to the inverting input terminal. 3. Vcc - Vin must not exceed 6 V, Vin must not exceed 6 V. 4. Input current must be limited by a resistor in series with the inputs. 5. Rth are typical values. 6. Human body model: the test HBM is done in accordance with the standards ESDA-JS-001-2017 and Q100-002 7. Charged device model: the test CDM is done in accordance with the standards ESDA-JS-002-2018 and Q100-011
Table 2. Operating conditions Symbol Parameter Min. Max. Value
VCC Supply voltage 1.8 5.5 V Vicm Common-mode input voltage range VCC- – 0.1 VCC+ – 1.1 V Toper Operating free air temperature range -40 125 °C
DS13614
-
Rev 1 page 3/33
