Datasheet TSV7721, TSV7722, TSV7723 (STMicroelectronics) - 6
| 制造商 | STMicroelectronics |
| 描述 | High bandwidth (22 MHz) low offset (200 μV) 5 V op amp |
| 页数 / 页 | 33 / 6 — TSV7721, TSV7722, TSV7723. Electrical characteristics |
| 文件格式/大小 | PDF / 4.5 Mb |
| 文件语言 | 英语 |
TSV7721, TSV7722, TSV7723. Electrical characteristics
该数据表的模型线
文件文字版本
link to page 7

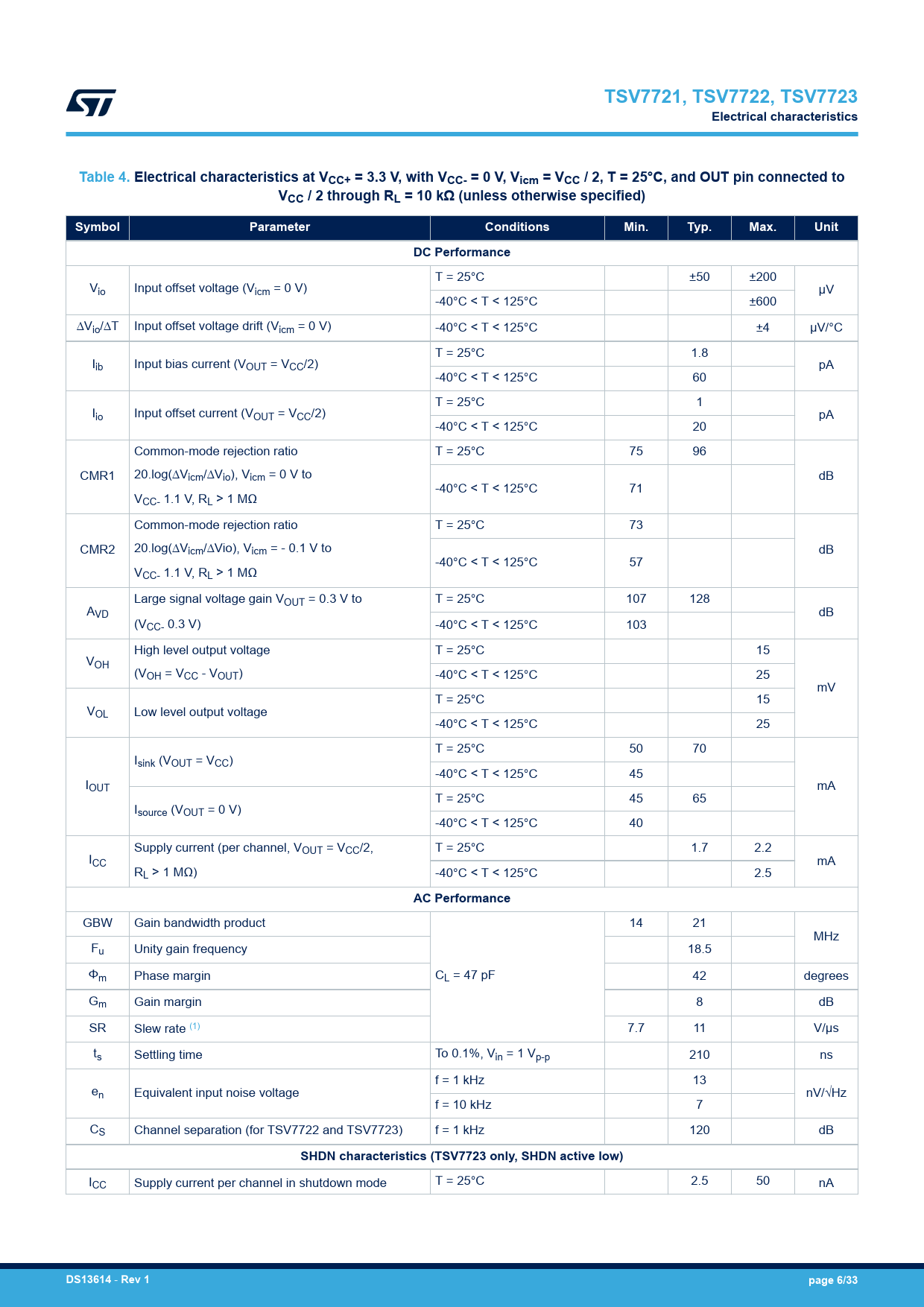

TSV7721, TSV7722, TSV7723 Electrical characteristics Table 4. Electrical characteristics at VCC+ = 3.3 V, with VCC- = 0 V, Vicm = VCC / 2, T = 25°C, and OUT pin connected to VCC / 2 through RL = 10 kΩ (unless otherwise specified) Symbol Parameter Conditions Min. Typ. Max. Unit DC Performance
T = 25°C ±50 ±200 Vio Input offset voltage (Vicm = 0 V) µV -40°C < T < 125°C ±600 ∆Vio/∆T Input offset voltage drift (Vicm = 0 V) -40°C < T < 125°C ±4 µV/°C T = 25°C 1.8 Iib Input bias current (VOUT = VCC/2) pA -40°C < T < 125°C 60 T = 25°C 1 Iio Input offset current (VOUT = VCC/2) pA -40°C < T < 125°C 20 Common-mode rejection ratio T = 25°C 75 96 CMR1 20.log(∆Vicm/∆Vio), Vicm = 0 V to dB -40°C < T < 125°C 71 VCC- 1.1 V, RL > 1 MΩ Common-mode rejection ratio T = 25°C 73 CMR2 20.log(∆Vicm/∆Vio), Vicm = - 0.1 V to dB -40°C < T < 125°C 57 VCC- 1.1 V, RL > 1 MΩ Large signal voltage gain VOUT = 0.3 V to T = 25°C 107 128 AVD dB (VCC- 0.3 V) -40°C < T < 125°C 103 High level output voltage T = 25°C 15 VOH (VOH = VCC - VOUT) -40°C < T < 125°C 25 mV T = 25°C 15 VOL Low level output voltage -40°C < T < 125°C 25 T = 25°C 50 70 Isink (VOUT = VCC) -40°C < T < 125°C 45 IOUT mA T = 25°C 45 65 Isource (VOUT = 0 V) -40°C < T < 125°C 40 Supply current (per channel, VOUT = VCC/2, T = 25°C 1.7 2.2 ICC mA RL > 1 MΩ) -40°C < T < 125°C 2.5
AC Performance
GBW Gain bandwidth product 14 21 MHz Fu Unity gain frequency 18.5 Φm Phase margin CL = 47 pF 42 degrees Gm Gain margin 8 dB SR Slew rate (1) 7.7 11 V/µs ts Settling time To 0.1%, Vin = 1 Vp-p 210 ns f = 1 kHz 13 en Equivalent input noise voltage nV/√Hz f = 10 kHz 7 CS Channel separation (for TSV7722 and TSV7723) f = 1 kHz 120 dB
SHDN characteristics (TSV7723 only, SHDN active low)
ICC Supply current per channel in shutdown mode T = 25°C 2.5 50 nA
DS13614
-
Rev 1 page 6/33
Document Outline Features Applications Description 1 Pin connections 2 Absolute maximum ratings and operating conditions 3 Electrical characteristics 4 Typical performance characteristics 5 Application information 5.1 Operating voltages 5.2 Input offset voltage drift over the temperature 5.3 Unused channel 5.4 EMI rejection 5.5 Maximum power dissipation 5.6 Capacitive load and stability 5.7 Resistor values for high speed op amp design 5.8 Settling time 5.9 PCB layout recommendations 5.10 Decoupling capacitor 5.11 Macro model 6 Typical applications 6.1 Low-side current sensing 6.2 Photodiode transimpedance amplification 7 Package information 7.1 SOT23-5 package information 7.2 DFN8 2x2 package information 7.3 MiniSO8 package information 7.4 SO-8 package information 7.5 MiniSO10 package information 8 Ordering information Revision history
TSV7721, TSV7722, TSV7723 Electrical characteristics Table 4. Electrical characteristics at VCC+ = 3.3 V, with VCC- = 0 V, Vicm = VCC / 2, T = 25°C, and OUT pin connected to VCC / 2 through RL = 10 kΩ (unless otherwise specified) Symbol Parameter Conditions Min. Typ. Max. Unit DC Performance
T = 25°C ±50 ±200 Vio Input offset voltage (Vicm = 0 V) µV -40°C < T < 125°C ±600 ∆Vio/∆T Input offset voltage drift (Vicm = 0 V) -40°C < T < 125°C ±4 µV/°C T = 25°C 1.8 Iib Input bias current (VOUT = VCC/2) pA -40°C < T < 125°C 60 T = 25°C 1 Iio Input offset current (VOUT = VCC/2) pA -40°C < T < 125°C 20 Common-mode rejection ratio T = 25°C 75 96 CMR1 20.log(∆Vicm/∆Vio), Vicm = 0 V to dB -40°C < T < 125°C 71 VCC- 1.1 V, RL > 1 MΩ Common-mode rejection ratio T = 25°C 73 CMR2 20.log(∆Vicm/∆Vio), Vicm = - 0.1 V to dB -40°C < T < 125°C 57 VCC- 1.1 V, RL > 1 MΩ Large signal voltage gain VOUT = 0.3 V to T = 25°C 107 128 AVD dB (VCC- 0.3 V) -40°C < T < 125°C 103 High level output voltage T = 25°C 15 VOH (VOH = VCC - VOUT) -40°C < T < 125°C 25 mV T = 25°C 15 VOL Low level output voltage -40°C < T < 125°C 25 T = 25°C 50 70 Isink (VOUT = VCC) -40°C < T < 125°C 45 IOUT mA T = 25°C 45 65 Isource (VOUT = 0 V) -40°C < T < 125°C 40 Supply current (per channel, VOUT = VCC/2, T = 25°C 1.7 2.2 ICC mA RL > 1 MΩ) -40°C < T < 125°C 2.5
AC Performance
GBW Gain bandwidth product 14 21 MHz Fu Unity gain frequency 18.5 Φm Phase margin CL = 47 pF 42 degrees Gm Gain margin 8 dB SR Slew rate (1) 7.7 11 V/µs ts Settling time To 0.1%, Vin = 1 Vp-p 210 ns f = 1 kHz 13 en Equivalent input noise voltage nV/√Hz f = 10 kHz 7 CS Channel separation (for TSV7722 and TSV7723) f = 1 kHz 120 dB
SHDN characteristics (TSV7723 only, SHDN active low)
ICC Supply current per channel in shutdown mode T = 25°C 2.5 50 nA
