MAX6674. Cold-Junction-Compensated K-Thermocouple-. to-Digital Converter (0°C to +128°C). General Description. Features
该数据表的模型线
文件文字版本

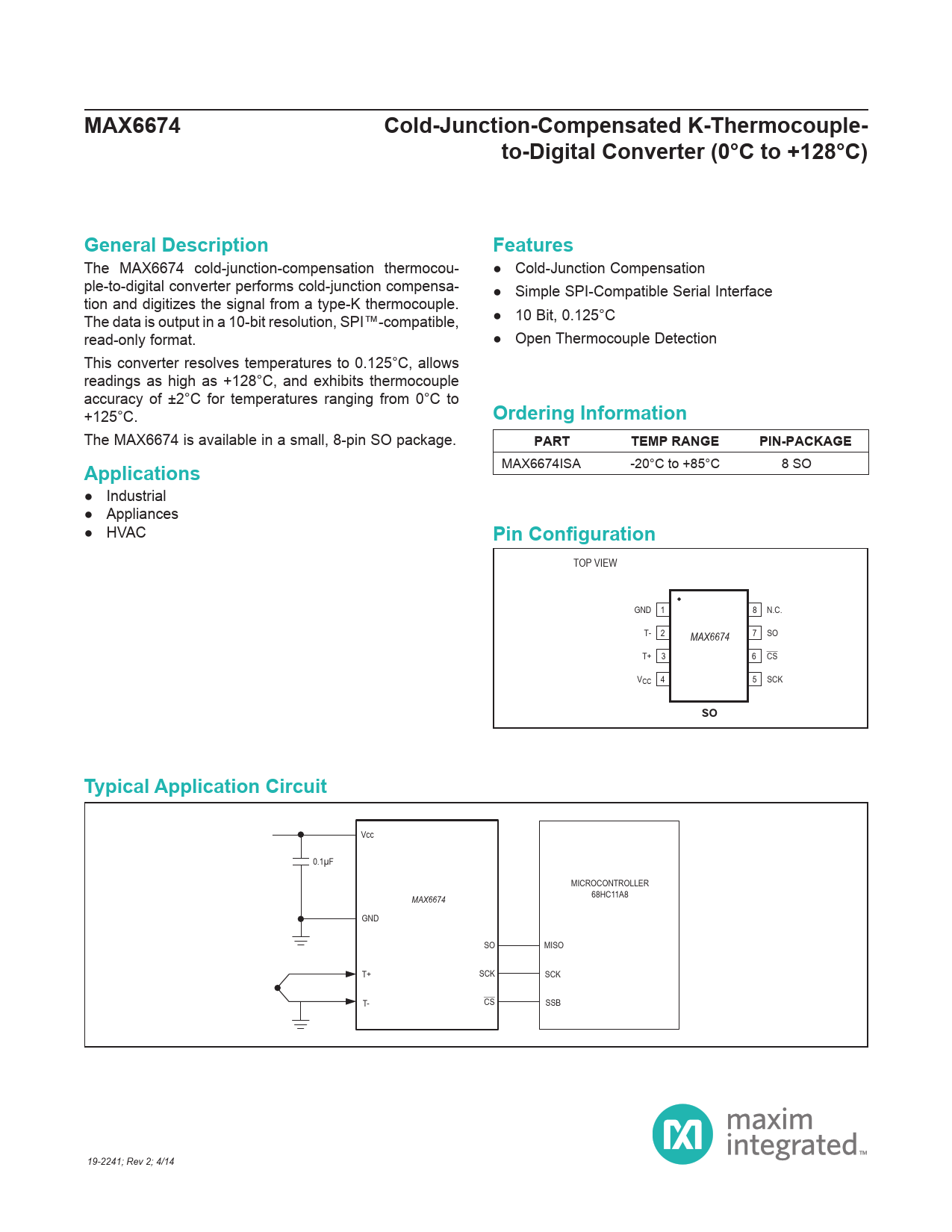

MAX6674 Cold-Junction-Compensated K-Thermocouple- to-Digital Converter (0°C to +128°C) General Description Features
The MAX6674 cold-junction-compensation thermocou- ● Cold-Junction Compensation ple-to-digital converter performs cold-junction compensa- ● Simple SPI-Compatible Serial Interface tion and digitizes the signal from a type-K thermocouple. The data is output in a 10-bit resolution, SPI™-compatible, ● 10 Bit, 0.125°C read-only format. ● Open Thermocouple Detection This converter resolves temperatures to 0.125°C, allows readings as high as +128°C, and exhibits thermocouple accuracy of ±2°C for temperatures ranging from 0°C to +125°C.
Ordering Information
The MAX6674 is available in a small, 8-pin SO package.
PART TEMP RANGE PIN-PACKAGE Applications
MAX6674ISA -20°C to +85°C 8 SO ● Industrial ● Appliances ● HVAC
Pin Configuration
TOP VIEW GND 1 8 N.C. T- 2 7 SO MAX6674 T+ 3 6 CS VCC 4 5 SCK
SO Typical Application Circuit
Vcc 0.1µF MICROCONTROLLER 68HC11A8 MAX6674 GND SO MISO T+ SCK SCK T- CS SSB 19-2241; Rev 2; 4/14
The MAX6674 cold-junction-compensation thermocou- ● Cold-Junction Compensation ple-to-digital converter performs cold-junction compensa- ● Simple SPI-Compatible Serial Interface tion and digitizes the signal from a type-K thermocouple. The data is output in a 10-bit resolution, SPI™-compatible, ● 10 Bit, 0.125°C read-only format. ● Open Thermocouple Detection This converter resolves temperatures to 0.125°C, allows readings as high as +128°C, and exhibits thermocouple accuracy of ±2°C for temperatures ranging from 0°C to +125°C.
Ordering Information
The MAX6674 is available in a small, 8-pin SO package.
PART TEMP RANGE PIN-PACKAGE Applications
MAX6674ISA -20°C to +85°C 8 SO ● Industrial ● Appliances ● HVAC
Pin Configuration
TOP VIEW GND 1 8 N.C. T- 2 7 SO MAX6674 T+ 3 6 CS VCC 4 5 SCK
SO Typical Application Circuit
Vcc 0.1µF MICROCONTROLLER 68HC11A8 MAX6674 GND SO MISO T+ SCK SCK T- CS SSB 19-2241; Rev 2; 4/14
