Datasheet C2M1000170D (Wolfspeed) - 9
| 制造商 | Wolfspeed |
| 描述 | Silicon Carbide Power MOSFET 1700 V 5.0 A 1.0 Ω |
| 页数 / 页 | 10 / 9 — Package Dimensions. Inches. Millimeters. POS. Min. Max. Recommended … |
| 文件格式/大小 | PDF / 996 Kb |
| 文件语言 | 英语 |
Package Dimensions. Inches. Millimeters. POS. Min. Max. Recommended Solder Pad Layout
该数据表的模型线
文件文字版本

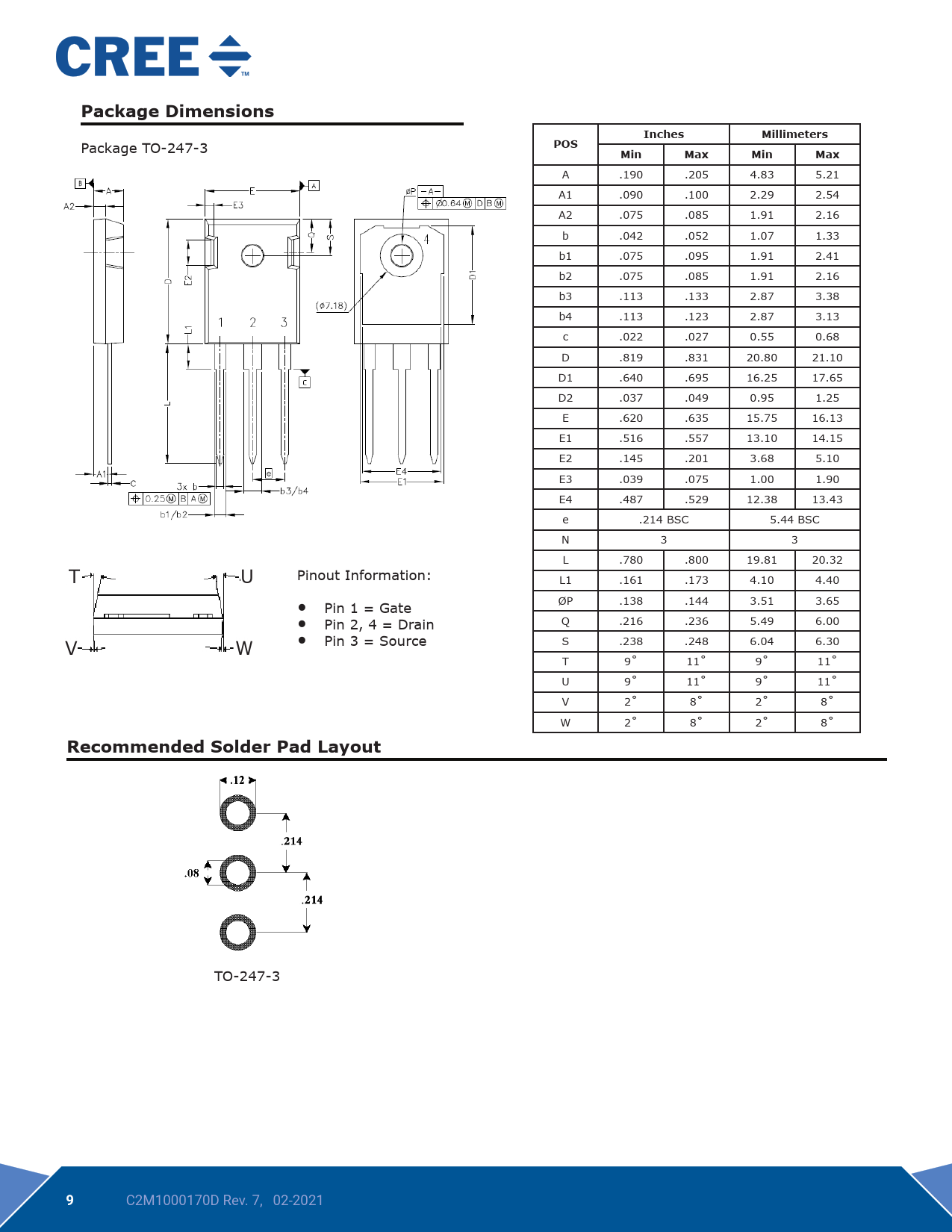

Package Dimensions Inches Millimeters
Package TO-247-3
POS Min Max Min Max
A .190 .205 4.83 5.21 A1 .090 .100 2.29 2.54 A2 .075 .085 1.91 2.16 b .042 .052 1.07 1.33 b1 .075 .095 1.91 2.41 b2 .075 .085 1.91 2.16 b3 .113 .133 2.87 3.38 b4 .113 .123 2.87 3.13 c .022 .027 0.55 0.68 D .819 .831 20.80 21.10 D1 .640 .695 16.25 17.65 D2 .037 .049 0.95 1.25 E .620 .635 15.75 16.13 E1 .516 .557 13.10 14.15 E2 .145 .201 3.68 5.10 E3 .039 .075 1.00 1.90 E4 .487 .529 12.38 13.43 e .214 BSC 5.44 BSC N 3 3 L .780 .800 19.81 20.32 T U Pinout Information: L1 .161 .173 4.10 4.40 ØP .138 .144 3.51 3.65 • Pin 1 = Gate Q .216 .236 5.49 6.00 • Pin 2, 4 = Drain • Pin 3 = Source S .238 .248 6.04 6.30 V W T 9˚ 11˚ 9˚ 11˚ U 9˚ 11˚ 9˚ 11˚ V 2˚ 8˚ 2˚ 8˚ W 2˚ 8˚ 2˚ 8˚
Recommended Solder Pad Layout
TO-247-3
9
C2M1000170D Rev. 7, 02-2021
Package TO-247-3
POS Min Max Min Max
A .190 .205 4.83 5.21 A1 .090 .100 2.29 2.54 A2 .075 .085 1.91 2.16 b .042 .052 1.07 1.33 b1 .075 .095 1.91 2.41 b2 .075 .085 1.91 2.16 b3 .113 .133 2.87 3.38 b4 .113 .123 2.87 3.13 c .022 .027 0.55 0.68 D .819 .831 20.80 21.10 D1 .640 .695 16.25 17.65 D2 .037 .049 0.95 1.25 E .620 .635 15.75 16.13 E1 .516 .557 13.10 14.15 E2 .145 .201 3.68 5.10 E3 .039 .075 1.00 1.90 E4 .487 .529 12.38 13.43 e .214 BSC 5.44 BSC N 3 3 L .780 .800 19.81 20.32 T U Pinout Information: L1 .161 .173 4.10 4.40 ØP .138 .144 3.51 3.65 • Pin 1 = Gate Q .216 .236 5.49 6.00 • Pin 2, 4 = Drain • Pin 3 = Source S .238 .248 6.04 6.30 V W T 9˚ 11˚ 9˚ 11˚ U 9˚ 11˚ 9˚ 11˚ V 2˚ 8˚ 2˚ 8˚ W 2˚ 8˚ 2˚ 8˚
Recommended Solder Pad Layout
TO-247-3
9
C2M1000170D Rev. 7, 02-2021
