Datasheet MM5130 (Menlo Micro) - 6
| 制造商 | Menlo Micro |
| 描述 | DC to 26 GHz High Power RF Switch |
| 页数 / 页 | 22 / 6 — v2.0. Package / Pinout Information. Table 2. Pin #. Pin Name. … |
| 文件格式/大小 | PDF / 1.3 Mb |
| 文件语言 | 英语 |
v2.0. Package / Pinout Information. Table 2. Pin #. Pin Name. Description. 1,3,5,6,8,10,12,13,15,17,. 18,19,20,22,23,24,25,26,27,28
该数据表的模型线
文件文字版本

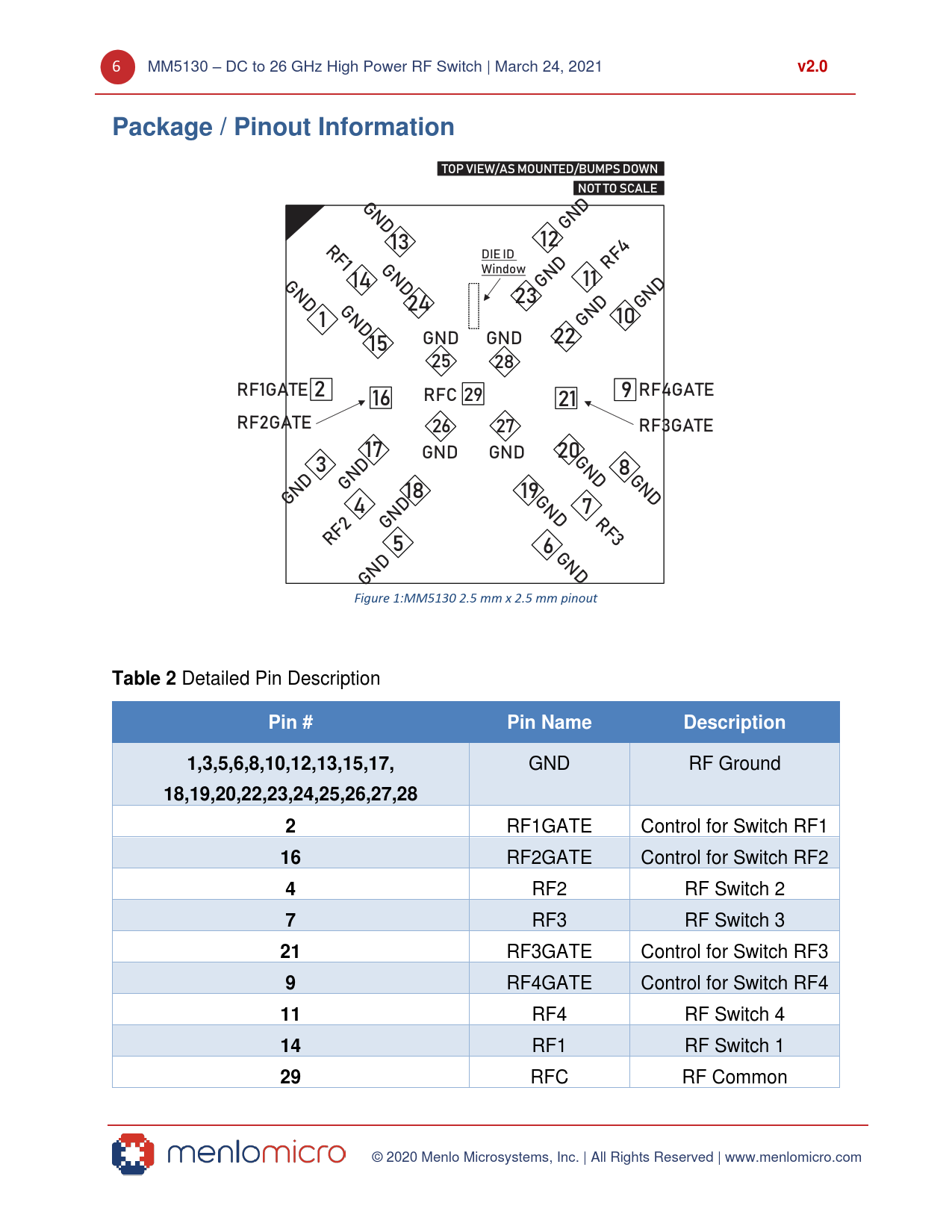

6 MM5130 – DC to 26 GHz High Power RF Switch | March 24, 2021
v2.0 Package / Pinout Information
GND GND R 13 12 F1 G DIE ID Window RF4 N G 14 D GND 11 ND G 23 24 N GND 1 D GND 10 GND GND 22 15 25 28 RF1GATE 2 29 9 RF4GATE RFC 16 21 RF2GATE 26 27 RF3GATE 17 GND GND G 20 3 N 8 GND D G 18 N GND G 19 4 D ND 7R GND F3 RF2 5 6GN GND D Figure 1:MM5130 2.5 mm x 2.5 mm pinout
Table 2
Detailed Pin Description
Pin # Pin Name Description 1,3,5,6,8,10,12,13,15,17,
GND RF Ground
18,19,20,22,23,24,25,26,27,28 2
RF1GATE Control for Switch RF1
16
RF2GATE Control for Switch RF2
4
RF2 RF Switch 2
7
RF3 RF Switch 3
21
RF3GATE Control for Switch RF3
9
RF4GATE Control for Switch RF4
11
RF4 RF Switch 4
14
RF1 RF Switch 1
29
RFC RF Common © 2020 Menlo Microsystems, Inc. | All Rights Reserved | www.menlomicro.com
