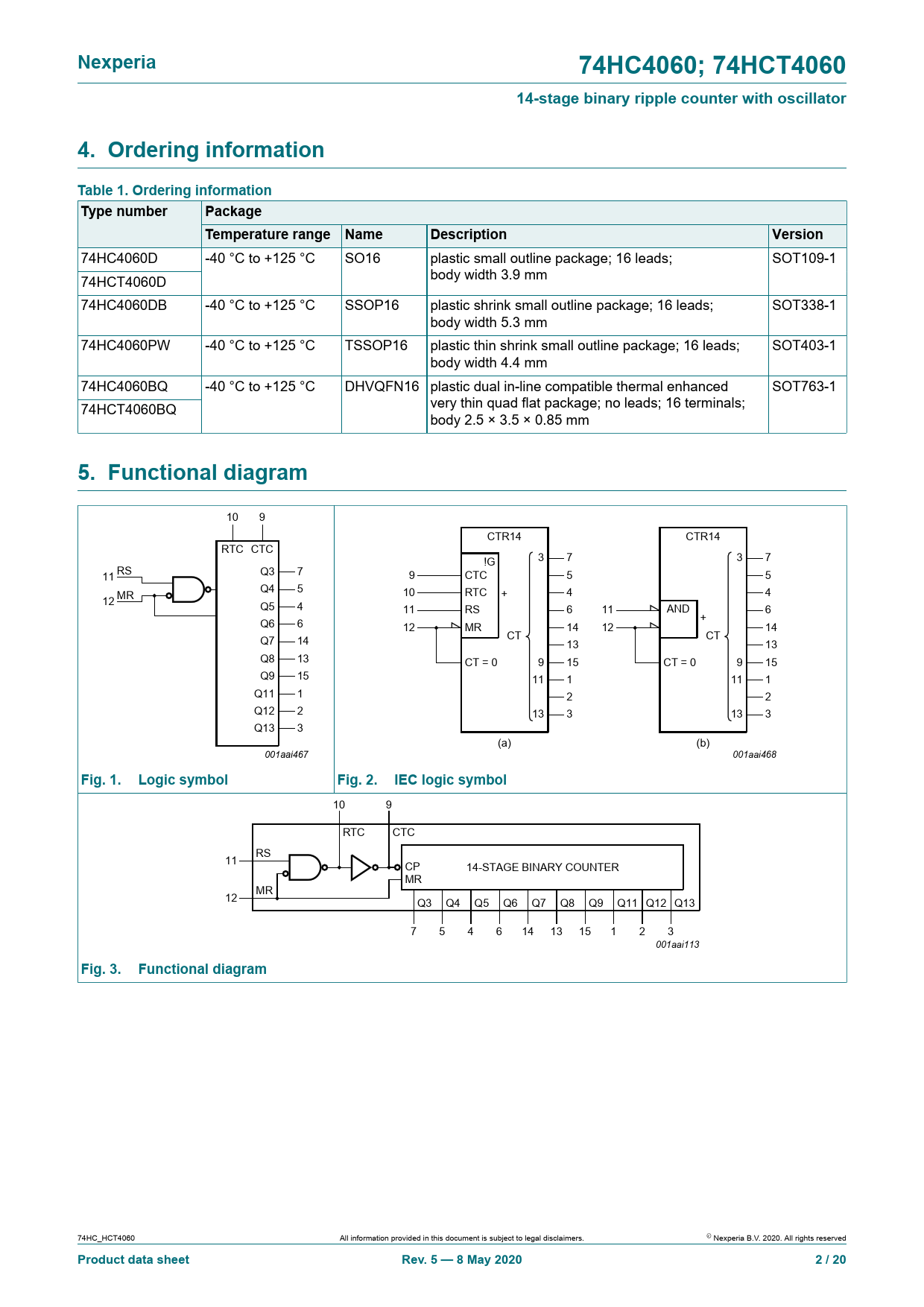

Nexperia 74HC4060; 74HCT4060 14-stage binary ripple counter with oscillator 4. Ordering information Table 1. Ordering information Type number Package Temperature range Name Description Version
74HC4060D -40 °C to +125 °C SO16 plastic small outline package; 16 leads; SOT109-1 74HCT4060D body width 3.9 mm 74HC4060DB -40 °C to +125 °C SSOP16 plastic shrink small outline package; 16 leads; SOT338-1 body width 5.3 mm 74HC4060PW -40 °C to +125 °C TSSOP16 plastic thin shrink small outline package; 16 leads; SOT403-1 body width 4.4 mm 74HC4060BQ -40 °C to +125 °C DHVQFN16 plastic dual in-line compatible thermal enhanced SOT763-1 74HCT4060BQ very thin quad flat package; no leads; 16 terminals; body 2.5 × 3.5 × 0.85 mm
5. Functional diagram
10 9 CTR14 CTR14 RTC CTC 3 7 3 7 !G RS Q3 7 11 9 CTC 5 5 Q4 MR 5 10 RTC + 4 4 12 Q5 4 11 RS 6 11 AND 6 Q6 6 + 12 MR 14 12 14 Q7 14 CT CT 13 13 Q8 13 CT = 0 9 15 CT = 0 9 15 Q9 15 11 1 11 1 Q11 1 2 2 Q12 2 13 3 13 3 Q13 3 (a) (b) 001aai467 001aai468
Fig. 1. Logic symbol Fig. 2. IEC logic symbol
10 9 RTC CTC RS 11 CP 14-STAGE BINARY COUNTER MR MR 12 Q3 Q4 Q5 Q6 Q7 Q8 Q9 Q11 Q12 Q13 7 5 4 6 14 13 15 1 2 3 001aai113
Fig. 3. Functional diagram
