LM7310
SNOSDC0A – OCTOBER 2020 – REVISED DECEMBER 2020

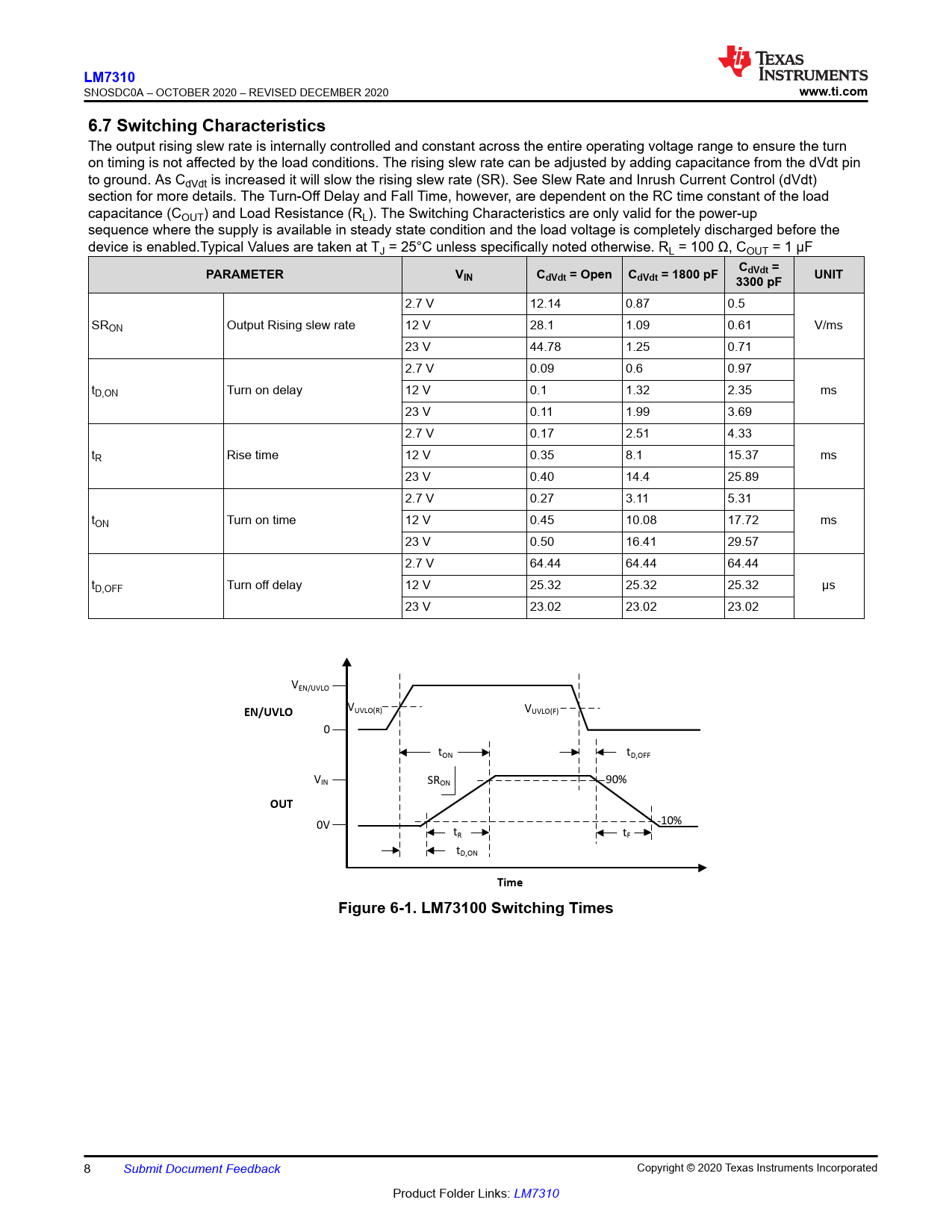

www.ti.com 6.7 Switching Characteristics
The output rising slew rate is internally controlled and constant across the entire operating voltage range to ensure the turn on timing is not affected by the load conditions. The rising slew rate can be adjusted by adding capacitance from the dVdt pin to ground. As CdVdt is increased it will slow the rising slew rate (SR). See Slew Rate and Inrush Current Control (dVdt) section for more details. The Turn-Off Delay and Fall Time, however, are dependent on the RC time constant of the load capacitance (COUT) and Load Resistance (RL). The Switching Characteristics are only valid for the power-up sequence where the supply is available in steady state condition and the load voltage is completely discharged before the device is enabled.Typical Values are taken at TJ = 25°C unless specifically noted otherwise. RL = 100 Ω, COUT = 1 µF
C PARAMETER V dVdt = IN CdVdt = Open CdVdt = 1800 pF UNIT 3300 pF
2.7 V 12.14 0.87 0.5 SRON Output Rising slew rate 12 V 28.1 1.09 0.61 V/ms 23 V 44.78 1.25 0.71 2.7 V 0.09 0.6 0.97 tD,ON Turn on delay 12 V 0.1 1.32 2.35 ms 23 V 0.11 1.99 3.69 2.7 V 0.17 2.51 4.33 tR Rise time 12 V 0.35 8.1 15.37 ms 23 V 0.40 14.4 25.89 2.7 V 0.27 3.11 5.31 tON Turn on time 12 V 0.45 10.08 17.72 ms 23 V 0.50 16.41 29.57 2.7 V 64.44 64.44 64.44 tD,OFF Turn off delay 12 V 25.32 25.32 25.32 µs 23 V 23.02 23.02 23.02 VEN/UVLO
EN/UVLO
VUVLO(R) VUVLO(F) 0 tON tD,OFF VIN SR 90% ON
OUT
0V 10% tR tF tD,ON
Time Figure 6-1. LM73100 Switching Times
