Fan Controller/Driver with Factory- Programmed Temperature Thresholds. ABSOLUTE MAXIMUM RATINGS. MAX6665
该数据表的模型线
文件文字版本

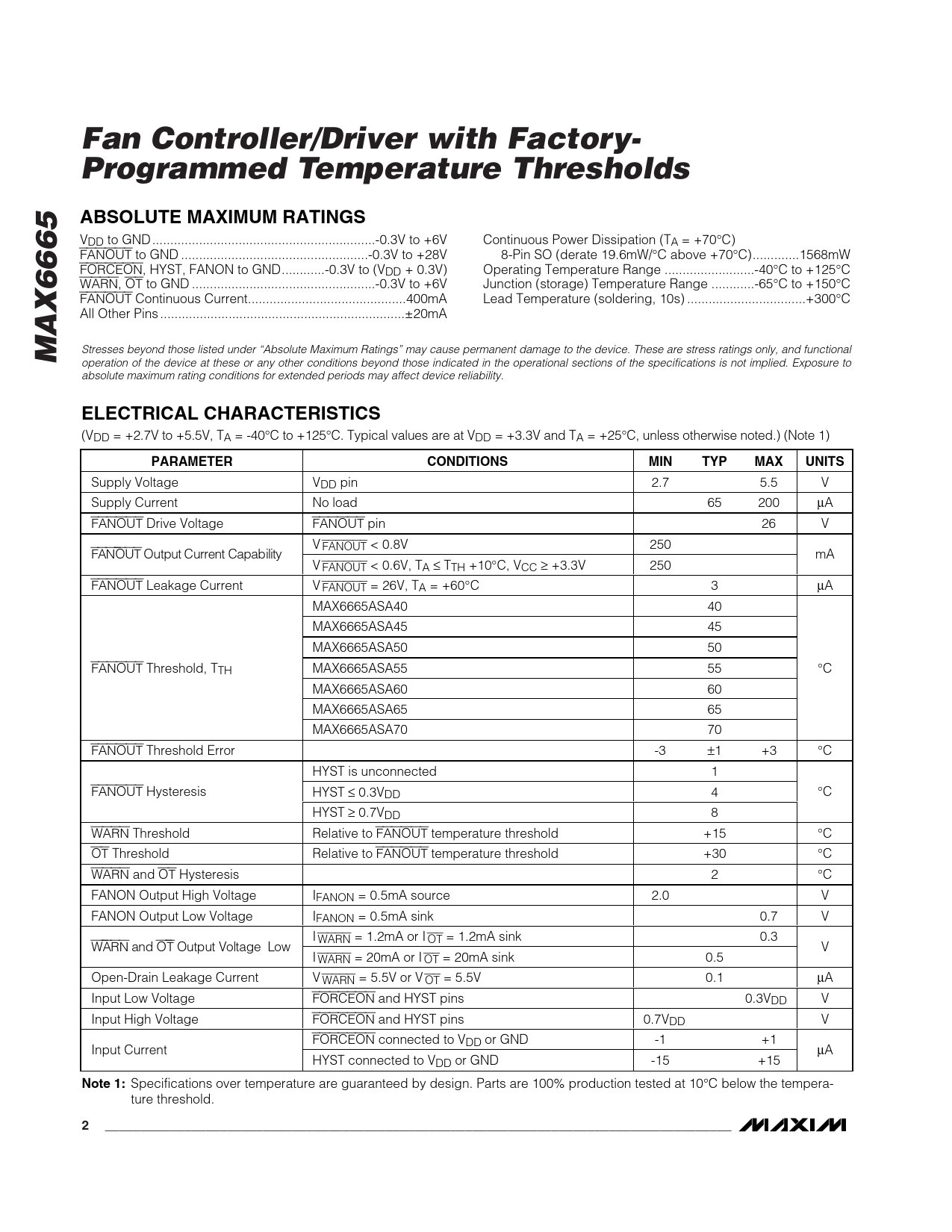

Fan Controller/Driver with Factory- Programmed Temperature Thresholds ABSOLUTE MAXIMUM RATINGS
VDD to GND ..-0.3V to +6V Continuous Power Dissipation (TA = +70°C) FANOUT to GND ..-0.3V to +28V 8-Pin SO (derate 19.6mW/°C above +70°C)...1568mW FORCEON, HYST, FANON to GND..-0.3V to (VDD + 0.3V) Operating Temperature Range ...-40°C to +125°C WARN, OT to GND ...-0.3V to +6V Junction (storage) Temperature Range ..-65°C to +150°C FANOUT Continuous Current..400mA Lead Temperature (soldering, 10s) ...+300°C All Other Pins ..±20mA
MAX6665
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
ELECTRICAL CHARACTERISTICS
(VDD = +2.7V to +5.5V, TA = -40°C to +125°C. Typical values are at VDD = +3.3V and TA = +25°C, unless otherwise noted.) (Note 1)
PARAMETER CONDITIONS MIN TYP MAX UNITS
Supply Voltage VDD pin 2.7 5.5 V Supply Current No load 65 200 µA FANOUT Drive Voltage FANOUT pin 26 V V FANOUT < 0.8V 250 FAN OUT Outp ut C ur r ent C ap ab i l i ty mA V FANOUT < 0.6V, TA ≤ TTH +10°C, VCC ≥ +3.3V 250 FANOUT Leakage Current V FANOUT = 26V, TA = +60°C 3 µA MAX6665ASA40 40 MAX6665ASA45 45 MAX6665ASA50 50 FANOUT Threshold, TTH MAX6665ASA55 55 °C MAX6665ASA60 60 MAX6665ASA65 65 MAX6665ASA70 70 FANOUT Threshold Error -3 ±1 +3 °C HYST is unconnected 1 FANOUT Hysteresis HYST ≤ 0.3VDD 4 °C HYST ≥ 0.7VDD 8 WARN Threshold Relative to FANOUT temperature threshold +15 °C OT Threshold Relative to FANOUT temperature threshold +30 °C WARN and OT Hysteresis 2 °C FANON Output High Voltage IFANON = 0.5mA source 2.0 V FANON Output Low Voltage IFANON = 0.5mA sink 0.7 V I WARN = 1.2mA or I OT = 1.2mA sink 0.3 W ARN and O T Outp ut V ol tag e Low V I WARN = 20mA or I OT = 20mA sink 0.5 Open-Drain Leakage Current V WARN = 5.5V or V OT = 5.5V 0.1 µA Input Low Voltage FORCEON and HYST pins 0.3VDD V Input High Voltage FORCEON and HYST pins 0.7VDD V FORCEON connected to VDD or GND -1 +1 Input Current µA HYST connected to VDD or GND -15 +15
Note 1:
Specifications over temperature are guaranteed by design. Parts are 100% production tested at 10°C below the tempera- ture threshold.
2 _______________________________________________________________________________________
VDD to GND ..-0.3V to +6V Continuous Power Dissipation (TA = +70°C) FANOUT to GND ..-0.3V to +28V 8-Pin SO (derate 19.6mW/°C above +70°C)...1568mW FORCEON, HYST, FANON to GND..-0.3V to (VDD + 0.3V) Operating Temperature Range ...-40°C to +125°C WARN, OT to GND ...-0.3V to +6V Junction (storage) Temperature Range ..-65°C to +150°C FANOUT Continuous Current..400mA Lead Temperature (soldering, 10s) ...+300°C All Other Pins ..±20mA
MAX6665
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
ELECTRICAL CHARACTERISTICS
(VDD = +2.7V to +5.5V, TA = -40°C to +125°C. Typical values are at VDD = +3.3V and TA = +25°C, unless otherwise noted.) (Note 1)
PARAMETER CONDITIONS MIN TYP MAX UNITS
Supply Voltage VDD pin 2.7 5.5 V Supply Current No load 65 200 µA FANOUT Drive Voltage FANOUT pin 26 V V FANOUT < 0.8V 250 FAN OUT Outp ut C ur r ent C ap ab i l i ty mA V FANOUT < 0.6V, TA ≤ TTH +10°C, VCC ≥ +3.3V 250 FANOUT Leakage Current V FANOUT = 26V, TA = +60°C 3 µA MAX6665ASA40 40 MAX6665ASA45 45 MAX6665ASA50 50 FANOUT Threshold, TTH MAX6665ASA55 55 °C MAX6665ASA60 60 MAX6665ASA65 65 MAX6665ASA70 70 FANOUT Threshold Error -3 ±1 +3 °C HYST is unconnected 1 FANOUT Hysteresis HYST ≤ 0.3VDD 4 °C HYST ≥ 0.7VDD 8 WARN Threshold Relative to FANOUT temperature threshold +15 °C OT Threshold Relative to FANOUT temperature threshold +30 °C WARN and OT Hysteresis 2 °C FANON Output High Voltage IFANON = 0.5mA source 2.0 V FANON Output Low Voltage IFANON = 0.5mA sink 0.7 V I WARN = 1.2mA or I OT = 1.2mA sink 0.3 W ARN and O T Outp ut V ol tag e Low V I WARN = 20mA or I OT = 20mA sink 0.5 Open-Drain Leakage Current V WARN = 5.5V or V OT = 5.5V 0.1 µA Input Low Voltage FORCEON and HYST pins 0.3VDD V Input High Voltage FORCEON and HYST pins 0.7VDD V FORCEON connected to VDD or GND -1 +1 Input Current µA HYST connected to VDD or GND -15 +15
Note 1:
Specifications over temperature are guaranteed by design. Parts are 100% production tested at 10°C below the tempera- ture threshold.
2 _______________________________________________________________________________________
