Datasheet MAX4014, MAX4017, MAX4019, MAX4022 (Maxim) - 3
| 制造商 | Maxim |
| 描述 | Low-Cost, High-Speed, Single-Supply, Gain of +2 Buffers with Rail-to-Rail Outputs in SOT23 |
| 页数 / 页 | 12 / 3 — Low-Cost, High-Speed, Single-Supply, Gain of +2. Buffers with … |
| 文件格式/大小 | PDF / 283 Kb |
| 文件语言 | 英语 |
Low-Cost, High-Speed, Single-Supply, Gain of +2. Buffers with Rail-to-Rail Outputs in SOT23
该数据表的模型线
文件文字版本

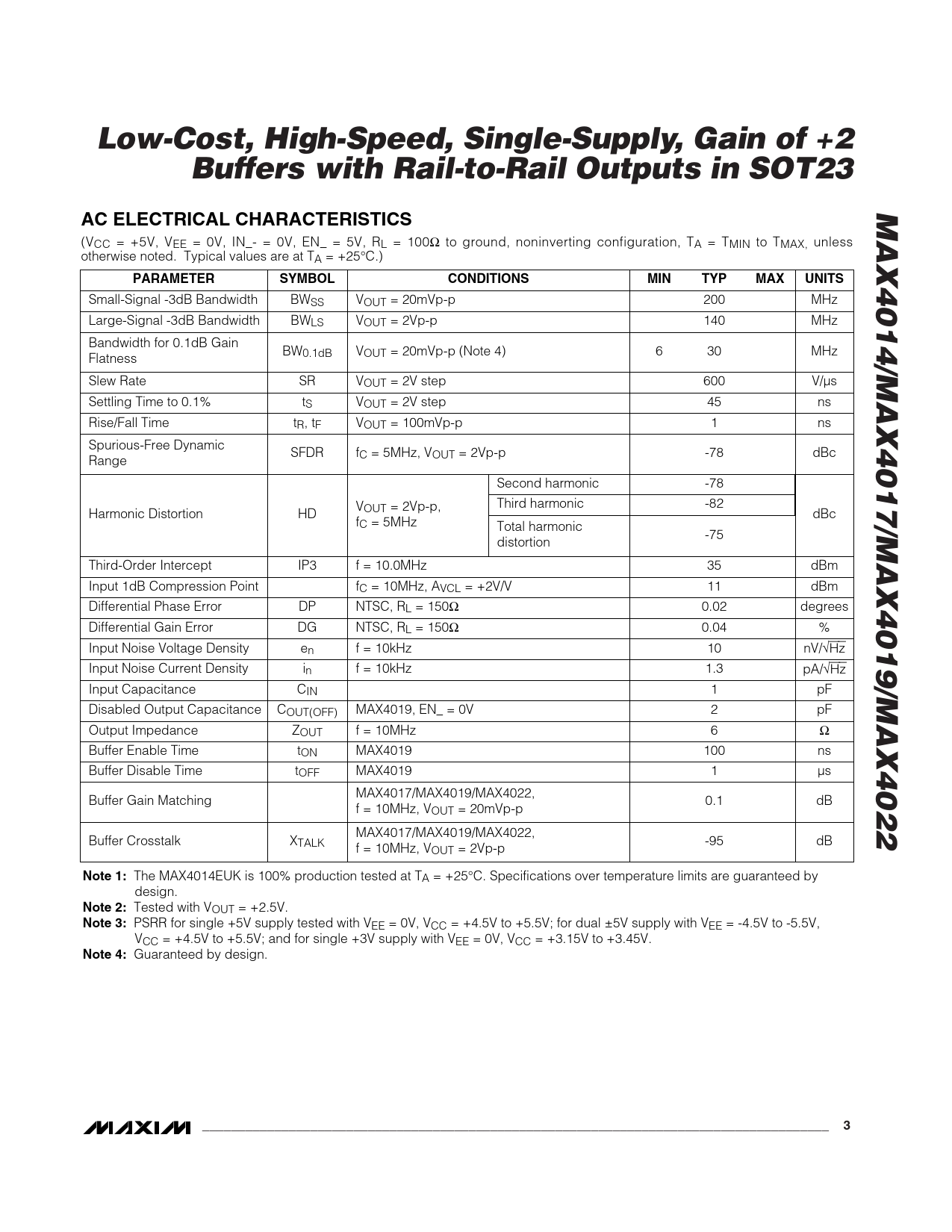

Low-Cost, High-Speed, Single-Supply, Gain of +2 Buffers with Rail-to-Rail Outputs in SOT23 MAX4014/MAX4017/MAX4019/MAX4022 AC ELECTRICAL CHARACTERISTICS
(VCC = +5V, VEE = 0V, IN_- = 0V, EN_ = 5V, RL = 100Ω to ground, noninverting configuration, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Small-Signal -3dB Bandwidth BWSS VOUT = 20mVp-p 200 MHz Large-Signal -3dB Bandwidth BWLS VOUT = 2Vp-p 140 MHz Bandwidth for 0.1dB Gain BW0.1dB VOUT = 20mVp-p (Note 4) 6 30 MHz Flatness Slew Rate SR VOUT = 2V step 600 V/µs Settling Time to 0.1% tS VOUT = 2V step 45 ns Rise/Fall Time tR, tF VOUT = 100mVp-p 1 ns Spurious-Free Dynamic SFDR fC = 5MHz, VOUT = 2Vp-p -78 dBc Range Second harmonic -78 VOUT = 2Vp-p, Third harmonic -82 Harmonic Distortion HD dBc fC = 5MHz Total harmonic -75 distortion Third-Order Intercept IP3 f = 10.0MHz 35 dBm Input 1dB Compression Point fC = 10MHz, AVCL = +2V/V 11 dBm Differential Phase Error DP NTSC, RL = 150Ω 0.02 degrees Differential Gain Error DG NTSC, RL = 150Ω 0.04 % Input Noise Voltage Density en f = 10kHz 10 nV/√Hz Input Noise Current Density in f = 10kHz 1.3 pA/√Hz Input Capacitance CIN 1 pF Disabled Output Capacitance COUT(OFF) MAX4019, EN_ = 0V 2 pF Output Impedance ZOUT f = 10MHz 6 Ω Buffer Enable Time tON MAX4019 100 ns Buffer Disable Time tOFF MAX4019 1 µs MAX4017/MAX4019/MAX4022, Buffer Gain Matching 0.1 dB f = 10MHz, VOUT = 20mVp-p MAX4017/MAX4019/MAX4022, Buffer Crosstalk XTALK -95 dB f = 10MHz, VOUT = 2Vp-p
Note 1:
The MAX4014EUK is 100% production tested at TA = +25°C. Specifications over temperature limits are guaranteed by design.
Note 2:
Tested with VOUT = +2.5V.
Note 3:
PSRR for single +5V supply tested with VEE = 0V, VCC = +4.5V to +5.5V; for dual ±5V supply with VEE = -4.5V to -5.5V, VCC = +4.5V to +5.5V; and for single +3V supply with VEE = 0V, VCC = +3.15V to +3.45V.
Note 4:
Guaranteed by design.
_______________________________________________________________________________________ 3
(VCC = +5V, VEE = 0V, IN_- = 0V, EN_ = 5V, RL = 100Ω to ground, noninverting configuration, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Small-Signal -3dB Bandwidth BWSS VOUT = 20mVp-p 200 MHz Large-Signal -3dB Bandwidth BWLS VOUT = 2Vp-p 140 MHz Bandwidth for 0.1dB Gain BW0.1dB VOUT = 20mVp-p (Note 4) 6 30 MHz Flatness Slew Rate SR VOUT = 2V step 600 V/µs Settling Time to 0.1% tS VOUT = 2V step 45 ns Rise/Fall Time tR, tF VOUT = 100mVp-p 1 ns Spurious-Free Dynamic SFDR fC = 5MHz, VOUT = 2Vp-p -78 dBc Range Second harmonic -78 VOUT = 2Vp-p, Third harmonic -82 Harmonic Distortion HD dBc fC = 5MHz Total harmonic -75 distortion Third-Order Intercept IP3 f = 10.0MHz 35 dBm Input 1dB Compression Point fC = 10MHz, AVCL = +2V/V 11 dBm Differential Phase Error DP NTSC, RL = 150Ω 0.02 degrees Differential Gain Error DG NTSC, RL = 150Ω 0.04 % Input Noise Voltage Density en f = 10kHz 10 nV/√Hz Input Noise Current Density in f = 10kHz 1.3 pA/√Hz Input Capacitance CIN 1 pF Disabled Output Capacitance COUT(OFF) MAX4019, EN_ = 0V 2 pF Output Impedance ZOUT f = 10MHz 6 Ω Buffer Enable Time tON MAX4019 100 ns Buffer Disable Time tOFF MAX4019 1 µs MAX4017/MAX4019/MAX4022, Buffer Gain Matching 0.1 dB f = 10MHz, VOUT = 20mVp-p MAX4017/MAX4019/MAX4022, Buffer Crosstalk XTALK -95 dB f = 10MHz, VOUT = 2Vp-p
Note 1:
The MAX4014EUK is 100% production tested at TA = +25°C. Specifications over temperature limits are guaranteed by design.
Note 2:
Tested with VOUT = +2.5V.
Note 3:
PSRR for single +5V supply tested with VEE = 0V, VCC = +4.5V to +5.5V; for dual ±5V supply with VEE = -4.5V to -5.5V, VCC = +4.5V to +5.5V; and for single +3V supply with VEE = 0V, VCC = +3.15V to +3.45V.
Note 4:
Guaranteed by design.
_______________________________________________________________________________________ 3
