Datasheet UPS120, UPS130, UPS140 (MCC) - 3
| 制造商 | MCC |
| 描述 | 1 Amp Schottky Rectifier 20 to 40 Volts |
| 页数 / 页 | 3 / 3 — UPS120. thru. UPS140. M. C. C. Figure. 4. Peak. Forward. Surge. Current. … |
| 文件格式/大小 | PDF / 101 Kb |
| 文件语言 | 英语 |

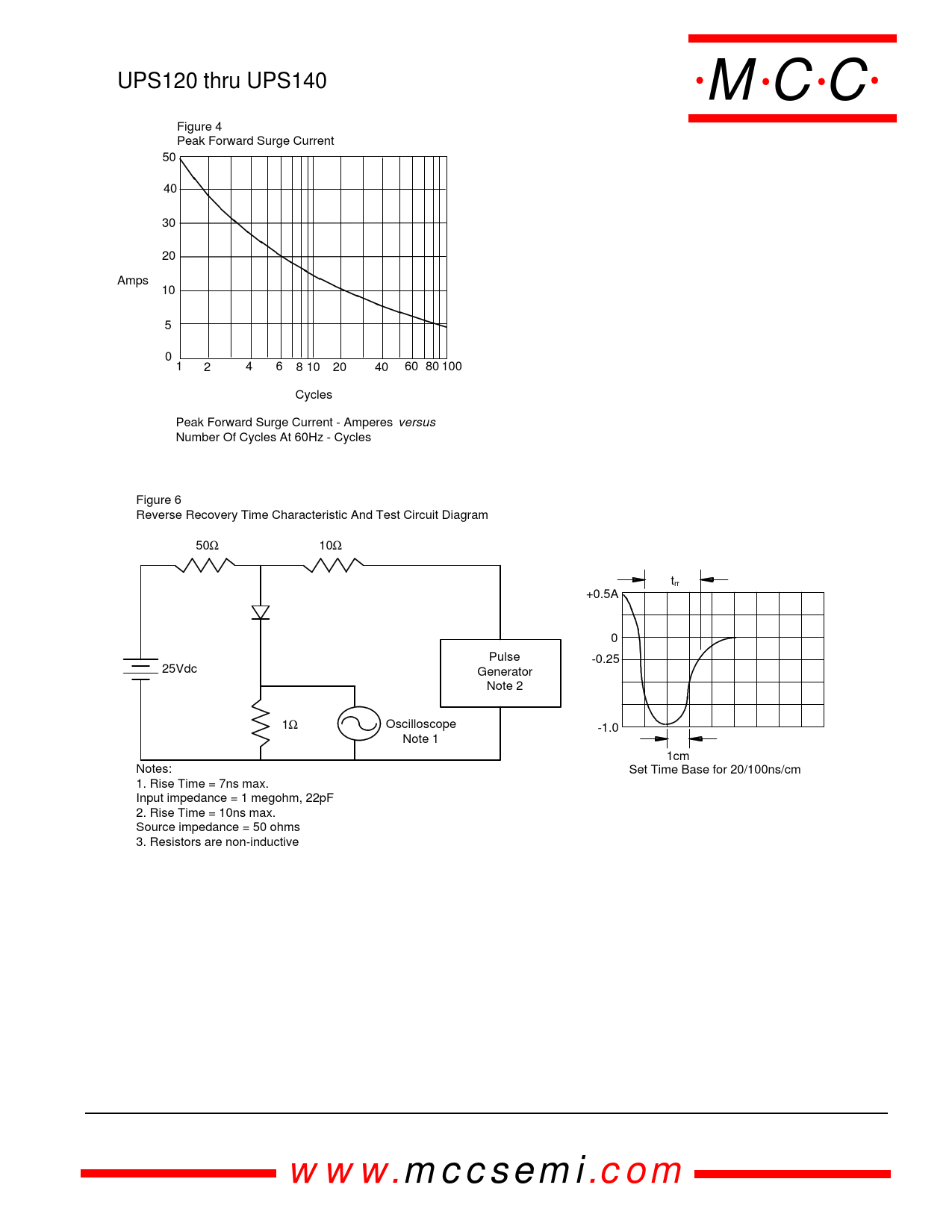

UPS120. thru. UPS140. M. C. C. Figure. 4. Peak. Forward. Surge. Current. 50. 40. 30. 20. Amps. 10. 5. 0. 1. 2. 4. 6. 8. 10. 20. 40. 60. 80. 100. Cycles. Peak. Forward. Surge. Current. -
该数据表的模型线
文件文字版本
UPS120 thru UPS140 M C C Figure 4 Peak Forward Surge Current 50 40 30 20 Amps 10 5 0 1 2 4 6 8 10 20 40 60 80 100 Cycles Peak Forward Surge Current - Amperes versus Number Of Cycles At 60Hz - Cycles Figure 6 Reverse Recovery Time Characteristic And Test Circuit Diagram 50Ω 10Ω trr +0.5A 0 Pulse -0.25 25Vdc Generator Note 2 1Ω Oscilloscope -1.0 Note 1 1cm Notes: Set Time Base for 20/100ns/cm 1. Rise Time = 7ns max. Input impedance = 1 megohm, 22pF 2. Rise Time = 10ns max. Source impedance = 50 ohms 3. Resistors are non-inductive www.mccsemi.com
