| 制造商 | Nexperia |
| 描述 | N-channel 40 V, 0.55 mOhm, 500 Amps continuous, standard level MOSFET in LFPAK88 using NextPowerS3 Technology |
| 页数 / 页 | 14 / 10 — Nexperia. PSMNR55-40SSH. N-channel 40 V, 0.55 mOhm, 500 Amps continuous, … |
| 修订版 | 06042021 |
| 文件格式/大小 | PDF / 335 Kb |
| 文件语言 | 英语 |
Nexperia. PSMNR55-40SSH. N-channel 40 V, 0.55 mOhm, 500 Amps continuous, standard level MOSFET in LFPAK88 using
该数据表的模型线
文件文字版本
Nexperia PSMNR55-40SSH N-channel 40 V, 0.55 mOhm, 500 Amps continuous, standard level MOSFET in LFPAK88 using NextPowerS3 Technology
aaa-032622 400 IS (A ( ) A 320 240 160 17 1 5 7 °C ° 80 Tj = 2 5 2 ° 5 C ° -5 - 5° 5 C ° 0 0 0.2 0.4 0.6 0.8 1 1.2 VSD (V) VGS = 0 V

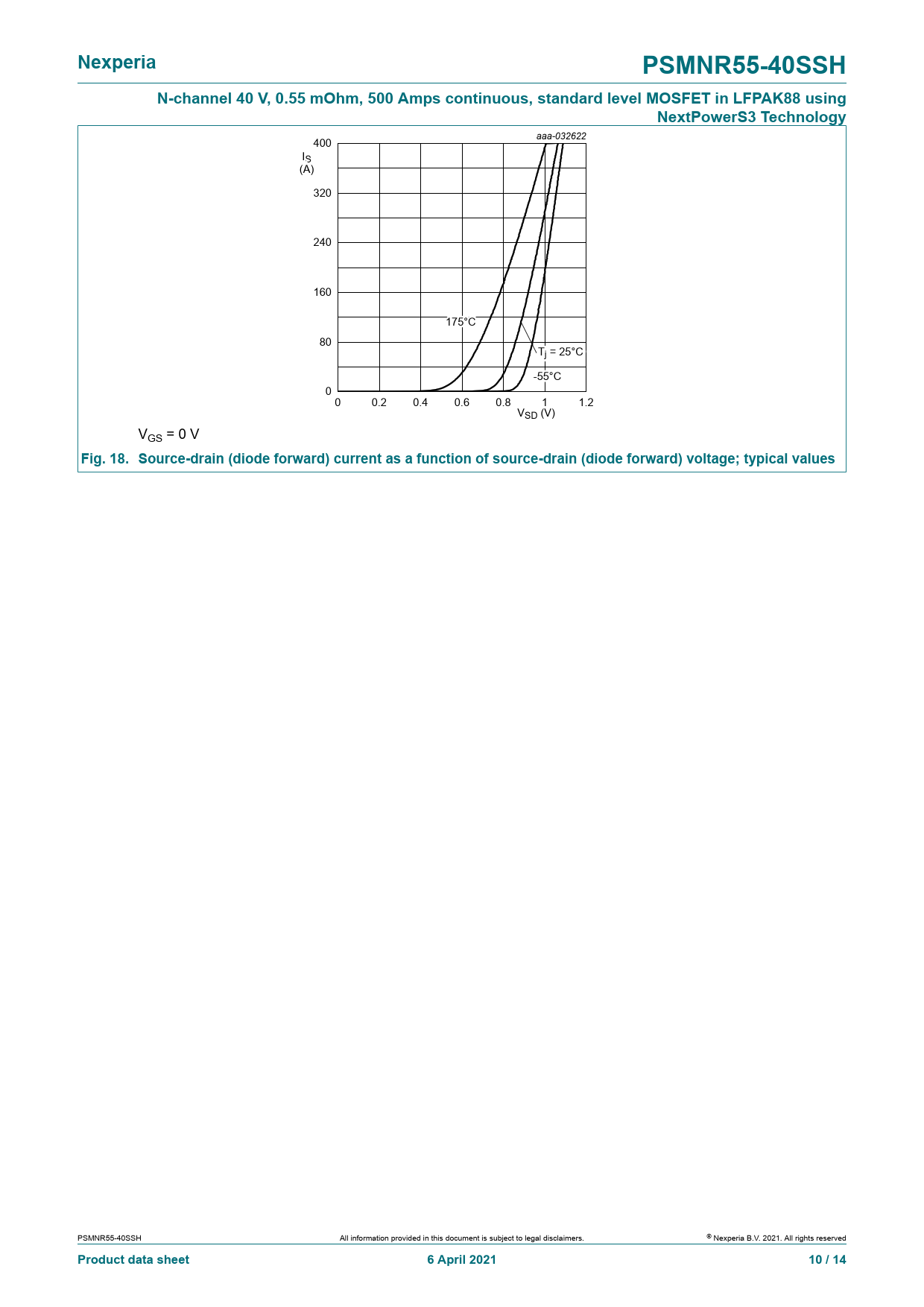

Fig. 18. Source-drain (diode forward) current as a function of source-drain (diode forward) voltage; typical values
PSMNR55-40SSH All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2021. Al rights reserved
Product data sheet 6 April 2021 10 / 14
