Datasheet L99VR01 (STMicroelectronics) - 8
| 制造商 | STMicroelectronics |
| 描述 | Automotive Linear Voltage Regulator with Configurable Output Voltage having 200mA current capability |
| 页数 / 页 | 47 / 8 — L99VR01. Electrical characteristics. 2.3. Table 5. Electrical … |
| 文件格式/大小 | PDF / 3.9 Mb |
| 文件语言 | 英语 |

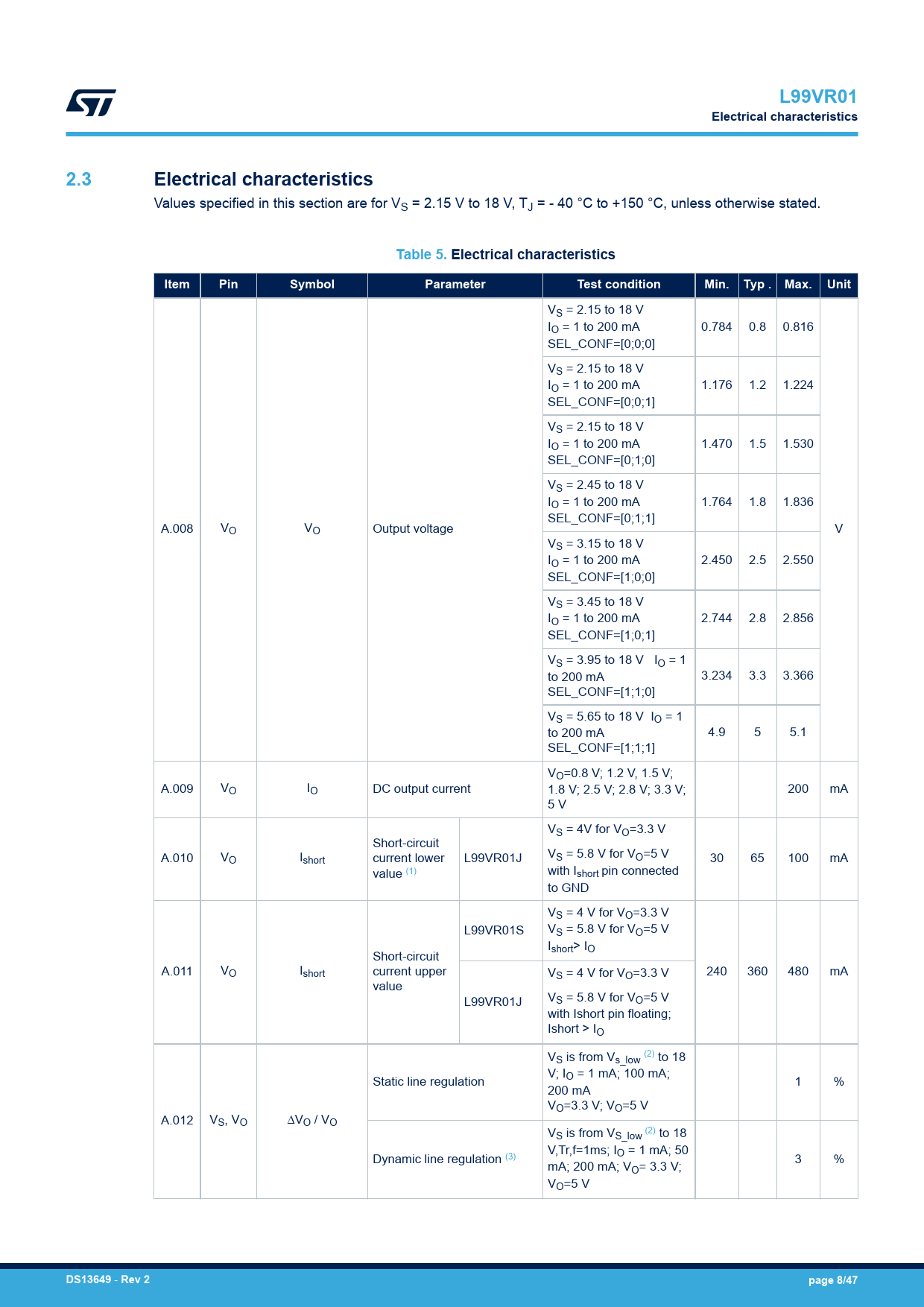

L99VR01. Electrical characteristics. 2.3. Table 5. Electrical characteristics. Item. Pin. Symbol. Parameter. Test condition. Min. Typ . Max
该数据表的模型线
文件文字版本
link to page 10 link to page 10 link to page 10 link to page 10
L99VR01 Electrical characteristics 2.3 Electrical characteristics
Values specified in this section are for VS = 2.15 V to 18 V, TJ = - 40 °C to +150 °C, unless otherwise stated.
Table 5. Electrical characteristics Item Pin Symbol Parameter Test condition Min. Typ . Max. Unit
VS = 2.15 to 18 V IO = 1 to 200 mA 0.784 0.8 0.816 SEL_CONF=[0;0;0] VS = 2.15 to 18 V IO = 1 to 200 mA 1.176 1.2 1.224 SEL_CONF=[0;0;1] VS = 2.15 to 18 V IO = 1 to 200 mA 1.470 1.5 1.530 SEL_CONF=[0;1;0] VS = 2.45 to 18 V IO = 1 to 200 mA 1.764 1.8 1.836 SEL_CONF=[0;1;1] A.008 VO VO Output voltage V VS = 3.15 to 18 V IO = 1 to 200 mA 2.450 2.5 2.550 SEL_CONF=[1;0;0] VS = 3.45 to 18 V IO = 1 to 200 mA 2.744 2.8 2.856 SEL_CONF=[1;0;1] VS = 3.95 to 18 V IO = 1 to 200 mA 3.234 3.3 3.366 SEL_CONF=[1;1;0] VS = 5.65 to 18 V IO = 1 to 200 mA 4.9 5 5.1 SEL_CONF=[1;1;1] VO=0.8 V; 1.2 V, 1.5 V; A.009 VO IO DC output current 1.8 V; 2.5 V; 2.8 V; 3.3 V; 200 mA 5 V VS = 4V for VO=3.3 V Short-circuit A.010 V V O Ishort current lower L99VR01J S = 5.8 V for VO=5 V 30 65 100 mA value (1) with Ishort pin connected to GND VS = 4 V for VO=3.3 V L99VR01S VS = 5.8 V for VO=5 V Ishort> IO Short-circuit A.011 VO Ishort current upper V 240 360 480 mA S = 4 V for VO=3.3 V value L99VR01J VS = 5.8 V for VO=5 V with Ishort pin floating; Ishort > IO VS is from Vs_low (2) to 18 V; I Static line regulation O = 1 mA; 100 mA; 1 % 200 mA VO=3.3 V; VO=5 V A.012 VS, VO ∆VO / VO V (2) S is from VS_low to 18 V,Tr,f=1ms; I Dynamic line regulation (3) O = 1 mA; 50 3 % mA; 200 mA; VO= 3.3 V; VO=5 V
