Datasheet NXH010P120MNF1PTNG, NXH010P120MNF1PNG (ON Semiconductor) - 10
| 制造商 | ON Semiconductor |
| 描述 | F1-2PACK SiC MOSFET Module |
| 页数 / 页 | 12 / 10 — NXH010P120MNF1PTNG, NXH010P120MNF1PNG. TYPICAL CHARACTERISTICS. Figure … |
| 修订版 | P2 |
| 文件格式/大小 | PDF / 2.2 Mb |
| 文件语言 | 英语 |
NXH010P120MNF1PTNG, NXH010P120MNF1PNG. TYPICAL CHARACTERISTICS. Figure 24. Typical Reverse Recovery Energy vs. IC
该数据表的模型线
文件文字版本
NXH010P120MNF1PTNG, NXH010P120MNF1PNG TYPICAL CHARACTERISTICS
M1/M2 MOSFET SWITCHING CHARACTERISTICS

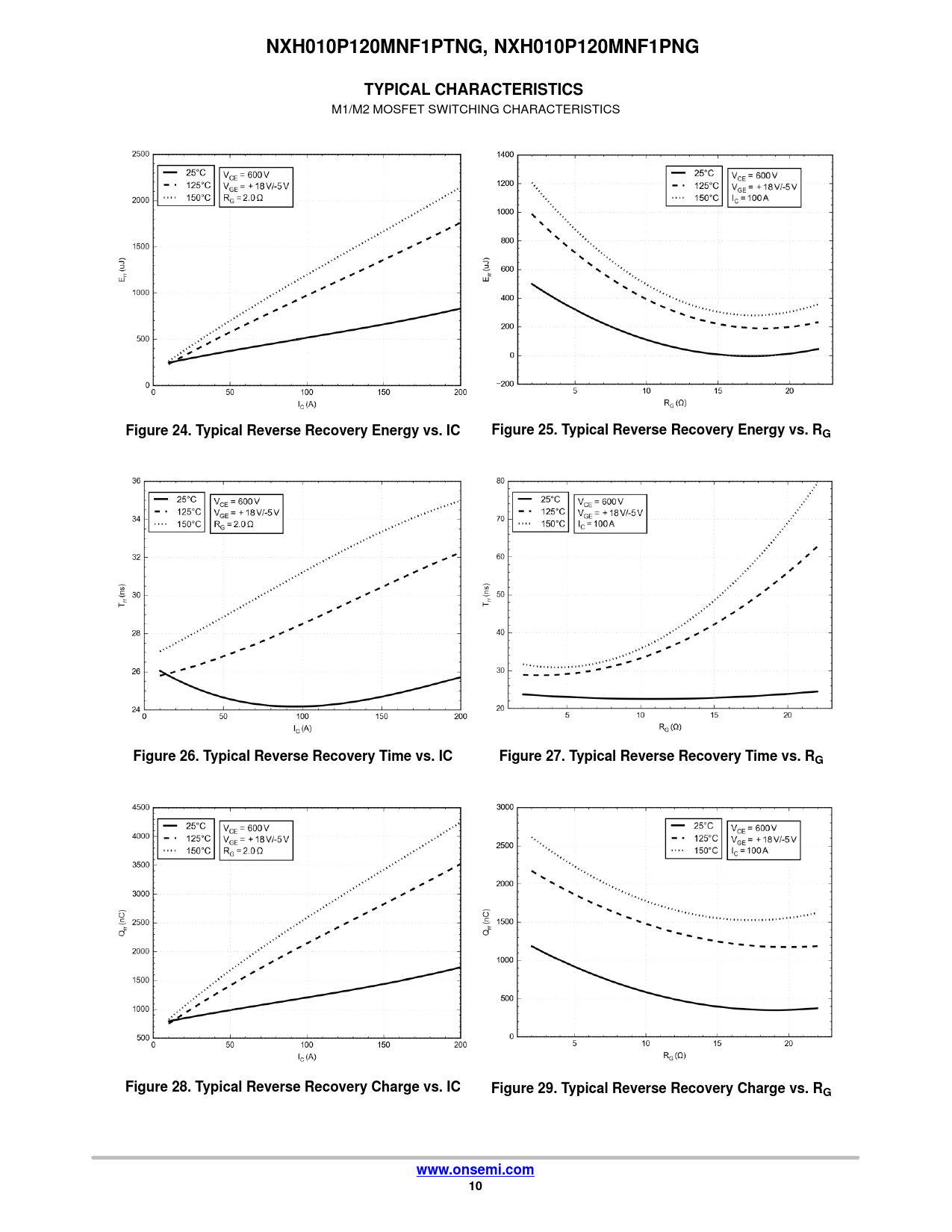

Figure 24. Typical Reverse Recovery Energy vs. IC Figure 25. Typical Reverse Recovery Energy vs. RG Figure 26. Typical Reverse Recovery Time vs. IC Figure 27. Typical Reverse Recovery Time vs. RG Figure 28. Typical Reverse Recovery Charge vs. IC Figure 29. Typical Reverse Recovery Charge vs. RG www.onsemi.com 10
M1/M2 MOSFET SWITCHING CHARACTERISTICS
Figure 24. Typical Reverse Recovery Energy vs. IC Figure 25. Typical Reverse Recovery Energy vs. RG Figure 26. Typical Reverse Recovery Time vs. IC Figure 27. Typical Reverse Recovery Time vs. RG Figure 28. Typical Reverse Recovery Charge vs. IC Figure 29. Typical Reverse Recovery Charge vs. RG www.onsemi.com 10
